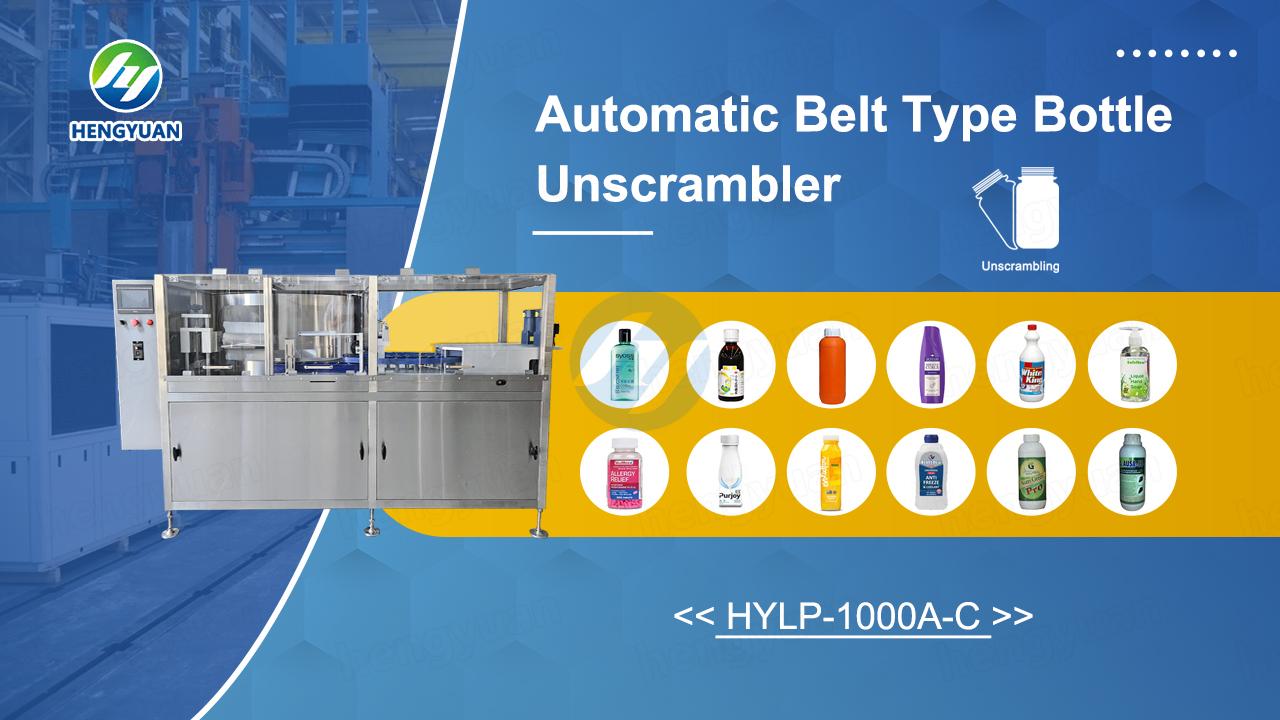

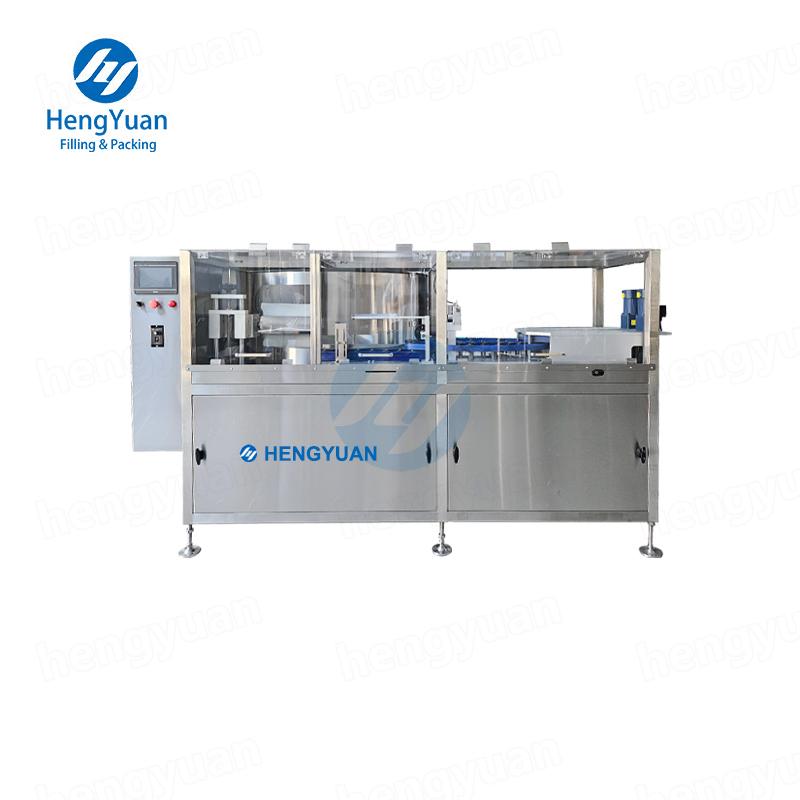

HYLP-1000A-C Automatic Belt Type Bottle Unscrambling Sorting Unscrambler Machine
Product Introduction

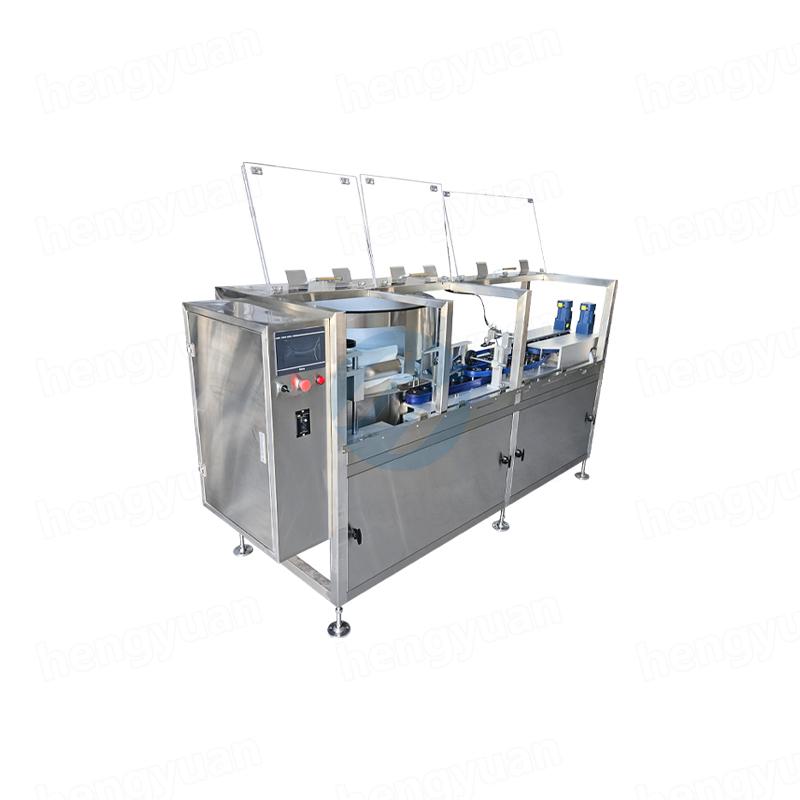

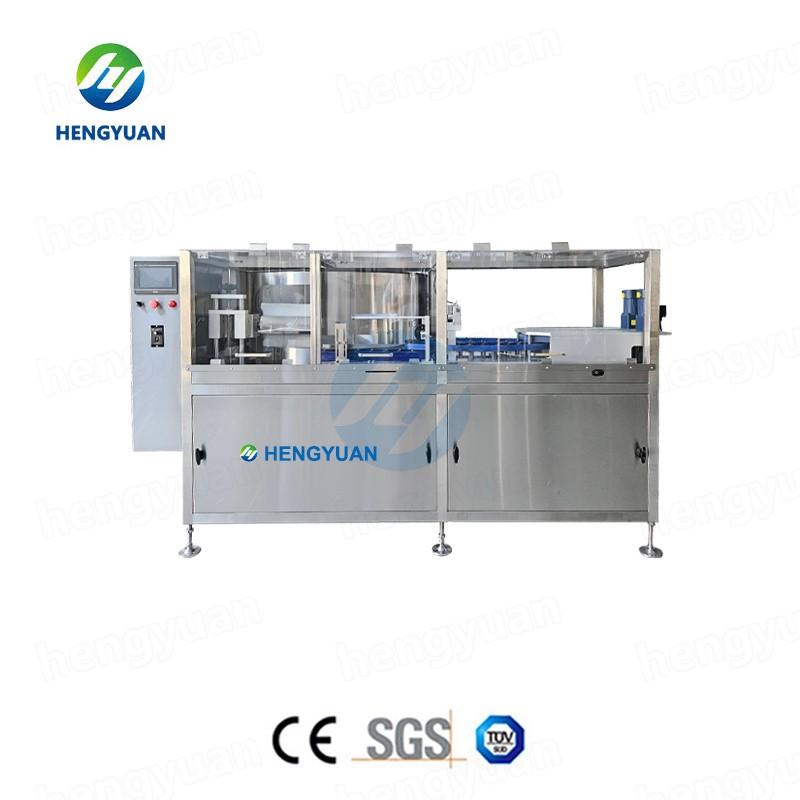

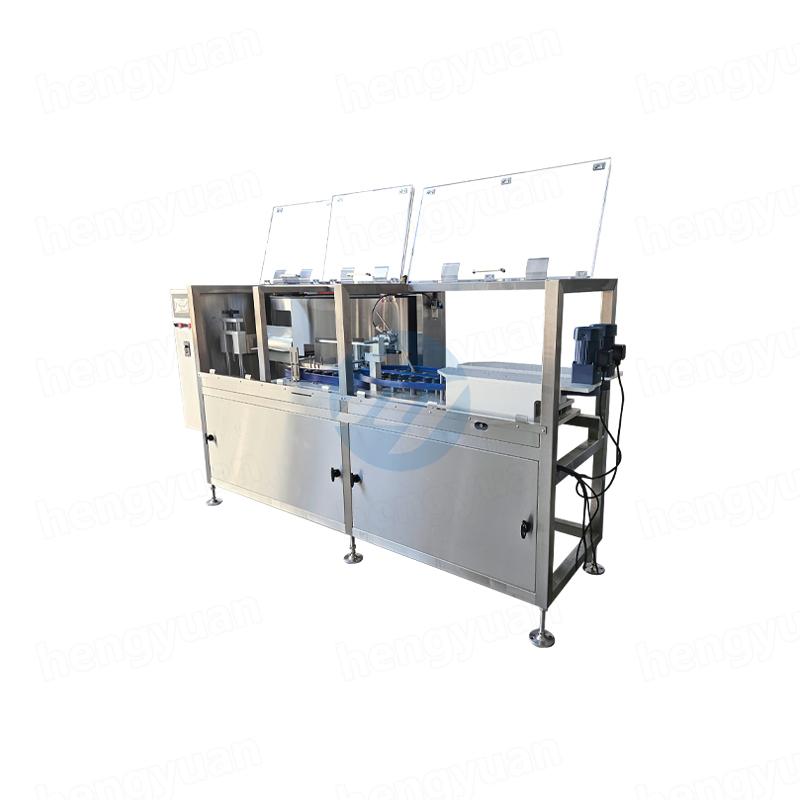

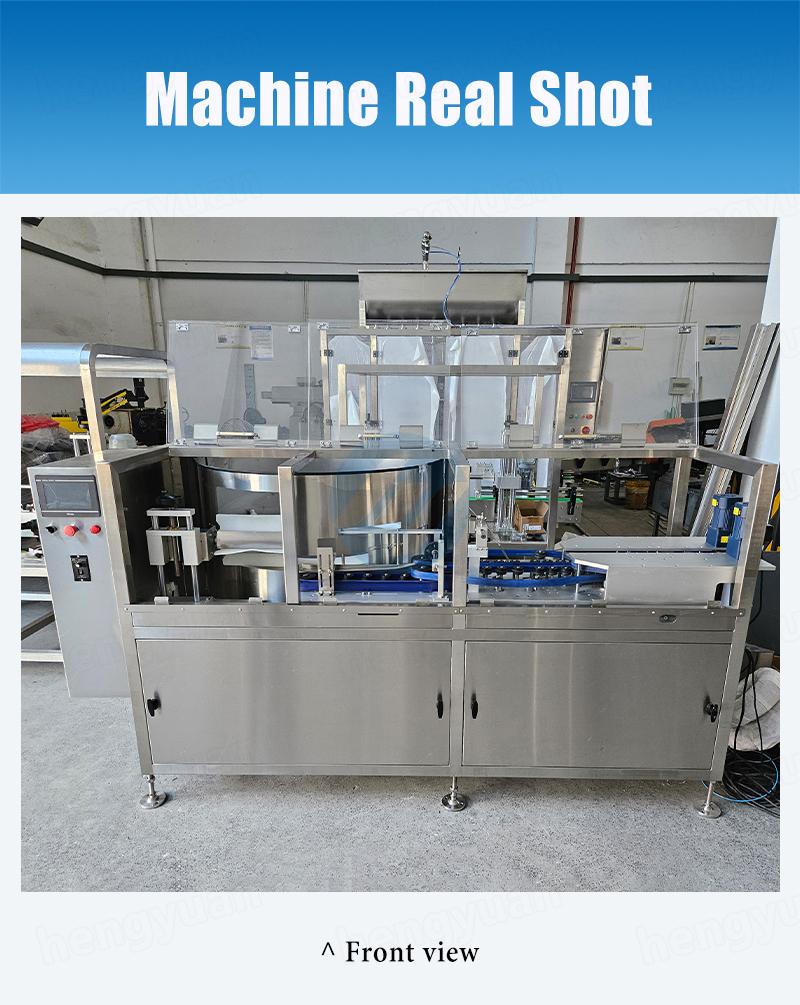

Automatic belt type bottle unscrambler machine uses several pairs belts and hook claw to sort bottles. It is electronic mechanical integration equipment, convenient operation, simple maintenance and reliable running. This machine consists of bottle lifter, mainframe and conveyors. Bottles poured into the rotater, with belts conveying to the unscrambling device; bottle standing orderly on the conveyor belts. It can be well matched with the production line.
Belt type bottle unscrambling machine is with high speed, steady performance, it suit for round and square bottles. Only need to add or reduce rubber ring when changing the bottle specification, other parts can be adjusted freely. Plastic bottle unscrambler adopts high quality stainless steel 304 as frame, in line with the GMP requirements. Using mechanical bottles of correcting mechanism, implement unified bottle. And equipped with for bottle device, greatly improving the production efficiency. And at the exit of this machine is equipped with a photoelectric switch, autonics testing bottle conveyor belt if there is a wall behind the phenomenon, such as a wall bottle, the bottle of rotary motor automatic stop. If detected lack of bottle, automatic startup. This machine realized the entire intelligent.
Product Application
This machine realized the entire intelligent. Suitable for: agrochemical, cosmetic, pharmaceutical, food industries such as plastic bottles automatically unscramble bottle and transportation.
For Examples: Shampoo, Hair Conditioner, Body Washer, Dishwasher, Hand Soap, Bleach, Toilet Bowl Cleaner, Medical Alcohol, Wash-free Hand Sanitizer, PET Bottle, Juice, Milk, Tablets Bottles, Pesticide, Ketchup, etc,
HYLP-1000A-C Automatic Hook Claw Belt Type Bottle Unscrambling Sorting Unscrambler Machine
Bottle elevator 2200x1000x1900mm
Bottle elevator 2200x1000x1900mm
6) Widely used in packing field like food, medicine, chemical industries.
Main Features
Technical Parameters
Applicable bottle diameter
Ф30mm~Ф100mm customized
Height of bottle
Ф80mm~Ф240mm
Production capacity
0~10000 bottles/hour
Power supply
220V/110V, 50Hz/60Hz, 2kw
Size
Weight
750kg
1) Simple structure in linear type ,easy in installation and Maintenance.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) Stable performance, fast speed, change bottles in a short time within 10minutes.
4) Running in a high automation and Intelligence, no pollution

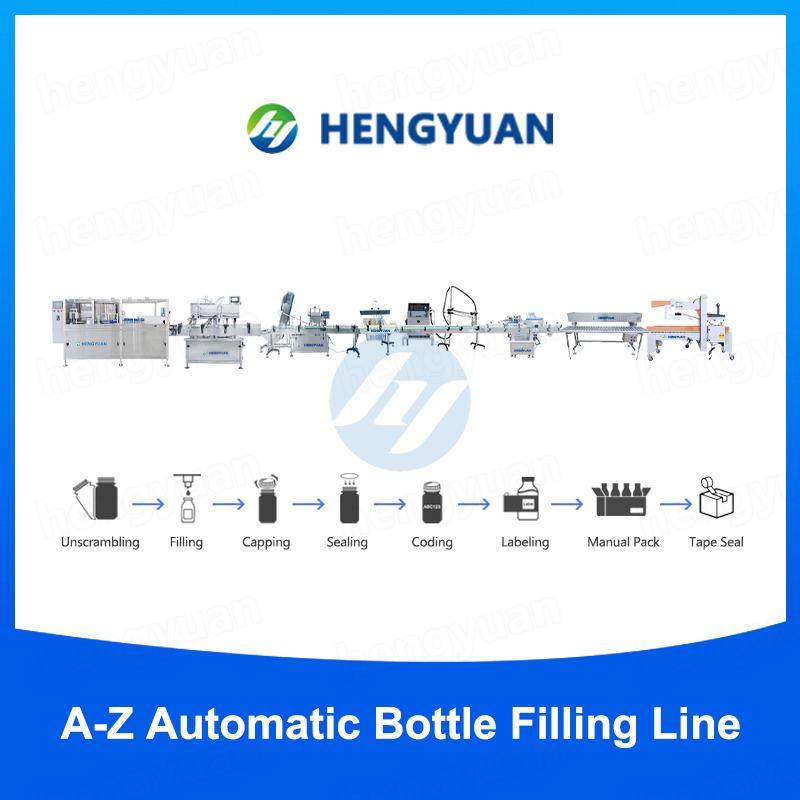

5) Apply a linker to connect with the conveyor ,which can directly inline with filling machine .
