Description

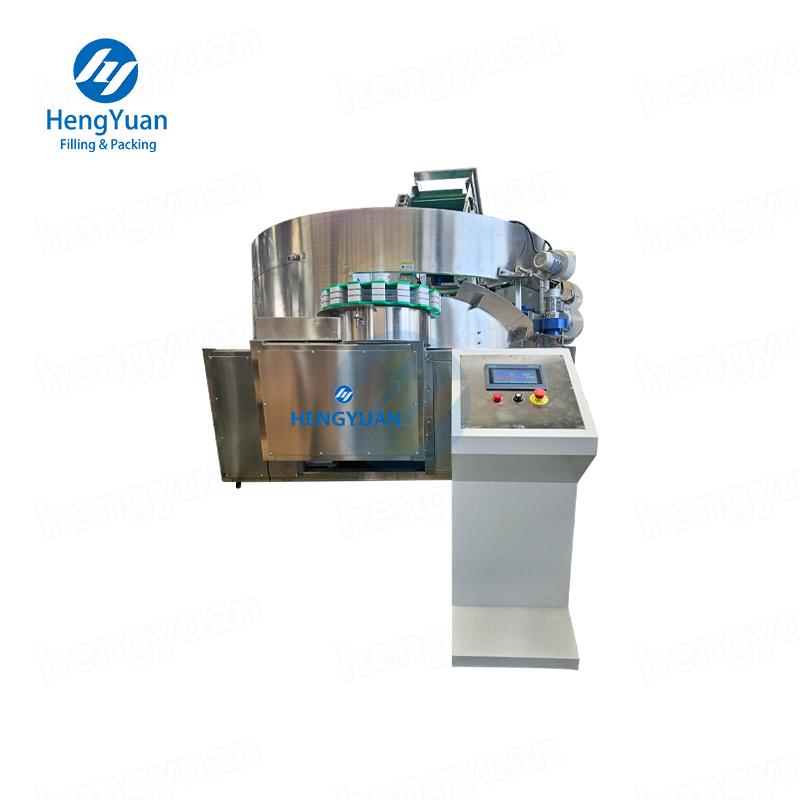

HYLP-30 Mold Type Bottle Unscrambler Machine
Product introduction

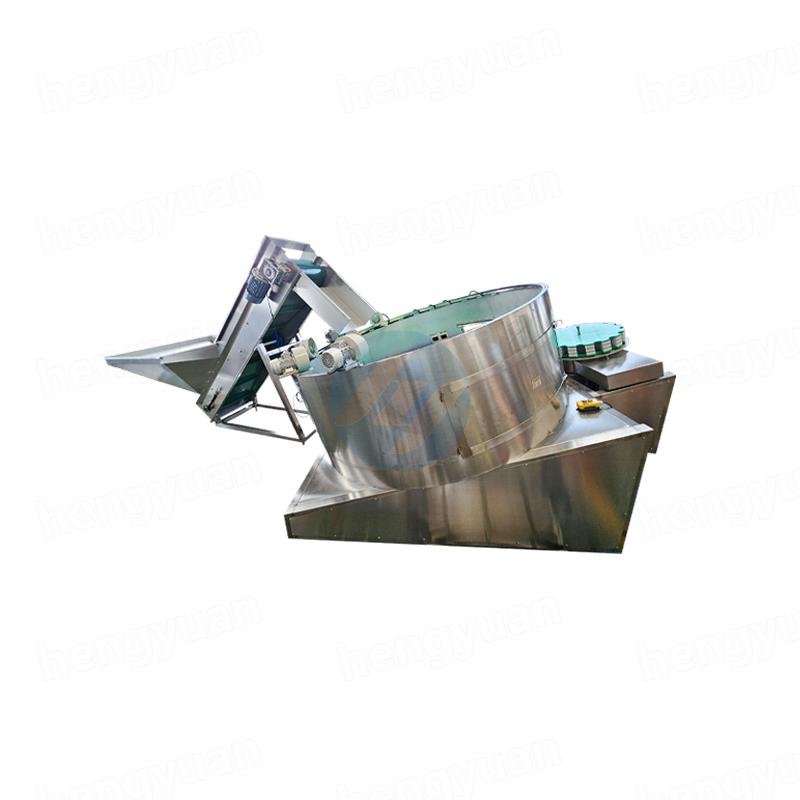

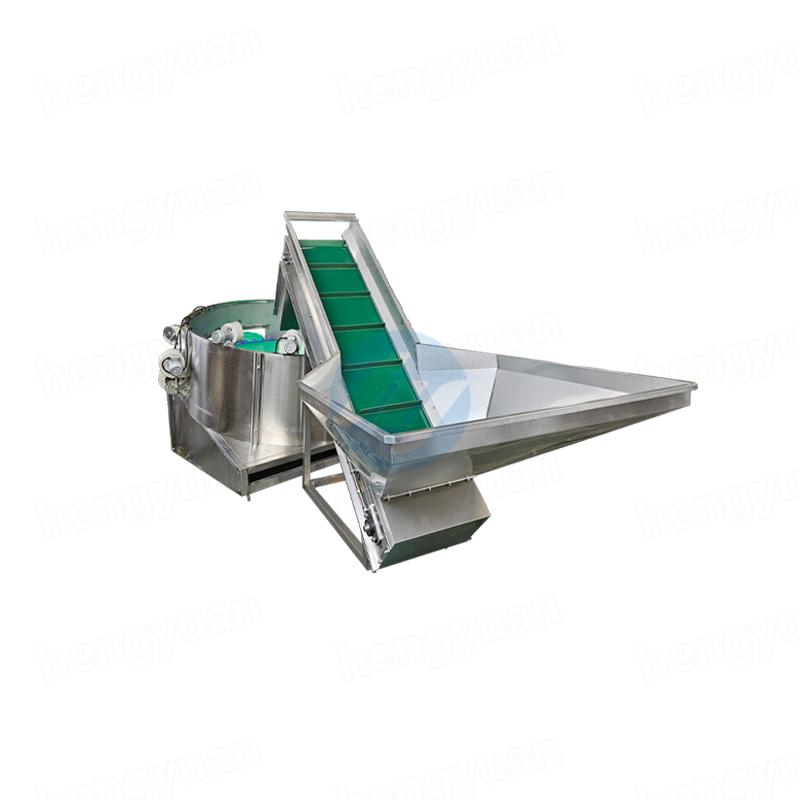

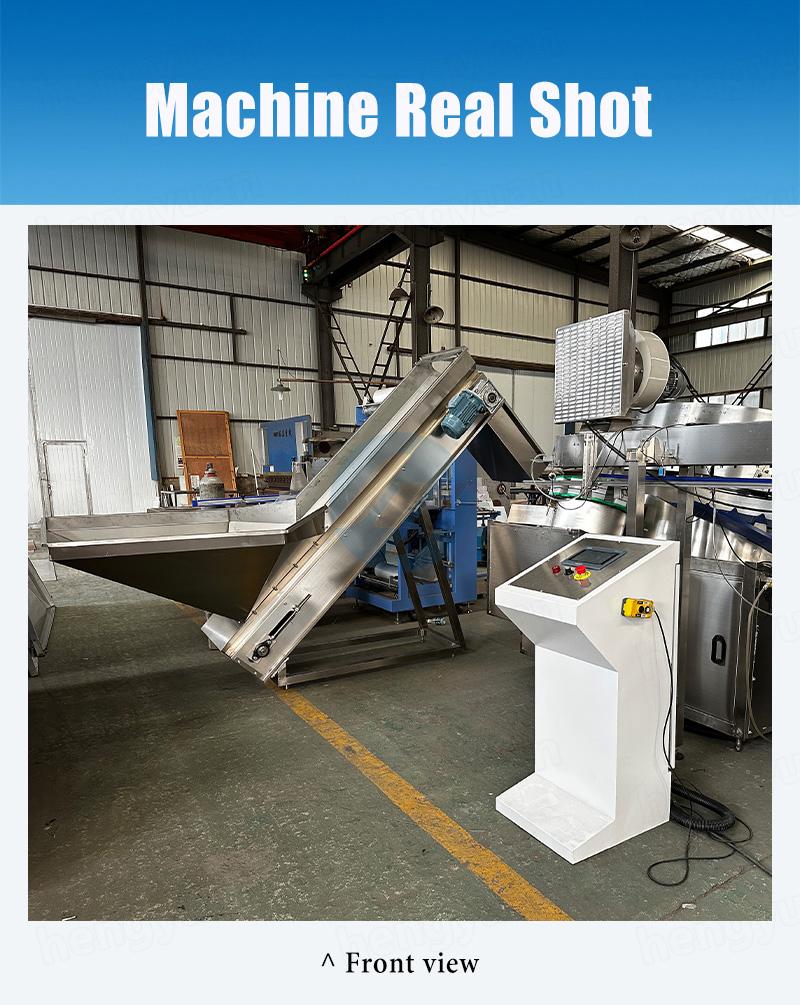

This high-speed bottle unscrambling machine is designed for automatic orientation and alignment of plastic bottles, delivering them in uniform position via a rotating discharge wheel for seamless downstream processing. Featuring PLC-based control with intuitive touchscreen operation, the system enables quick mold changes to accommodate various bottle shapes and sizes. Engineered for continuous high-speed performance, it integrates easily with filling machines and production lines across multiple industries. Ideal for automated bottle sorting and conveying in Beverage and food packaging, Pharmaceutical and cosmetic containers, Agrochemical and chemical products, Personal care and household products.
Product Application
Main Features
1. PLC programmable control with user-friendly touchscreen interface
2. Quick-change mold system for fast bottle size conversion
3. Gentle handling through rotating wheel discharge mechanism
4. Compatible with most filling equipment and production lines
5. Robust construction for 24/7 operation capability
Product introduction
This high-speed bottle unscrambling machine is designed for automatic orientation and alignment of plastic bottles, delivering them in uniform position via a rotating discharge wheel for seamless downstream processing. Featuring PLC-based control with intuitive touchscreen operation, the system enables quick mold changes to accommodate various bottle shapes and sizes. Engineered for continuous high-speed performance, it integrates easily with filling machines and production lines across multiple industries. Ideal for automated bottle sorting and conveying in Beverage and food packaging, Pharmaceutical and cosmetic containers, Agrochemical and chemical products, Personal care and household products.
Product Application
High-speed bottle unscrambling machine, Oral Liquid unscrambling machine, flat bottle unscrambling machine, round bottle unscrambler machine, square bottle unscrambling machine, PET bottle unscrambler machine, PE bottle unscrambling machine, HDPE bottle unscrambling machine, plastic bottle unscrambler machine, drinking water bottle unscrambling machine, mineral water bottle unscrambling machine, soda water bottle unscrambler machine, carbonated drink bottle unscrambling machine, sprite bottle unscrambling machine, cola bottle unscrambling machine, juice bottle unscrambler machine, tea drink unscrambler machine, function drink unscrambling machine, coffee liquid bottle unscrambling machine.
|
Technical Parameters |
|
|
Applicable bottle diameter |
Φ 30-Φ 100 can be customized by replacements |
|
Height of bottle |
Ф80mm~Ф290mm customized by replacements |
|
Production capacity |
0~15000 bottles/hour based on 2.2meter sorting bowl |
|
Electricity power supply |
380V/220V, 50Hz/60Hz, customized |
|
Power |
6Kw |
|
Size |
Bottle elevator 300x130x210mm Main body 220 x220x180cm |
|
Weight |
1200kg |
Main Features
1. PLC programmable control with user-friendly touchscreen interface
2. Quick-change mold system for fast bottle size conversion
3. Gentle handling through rotating wheel discharge mechanism
4. Compatible with most filling equipment and production lines
5. Robust construction for 24/7 operation capability
6. High speed 8000-24000BPH
