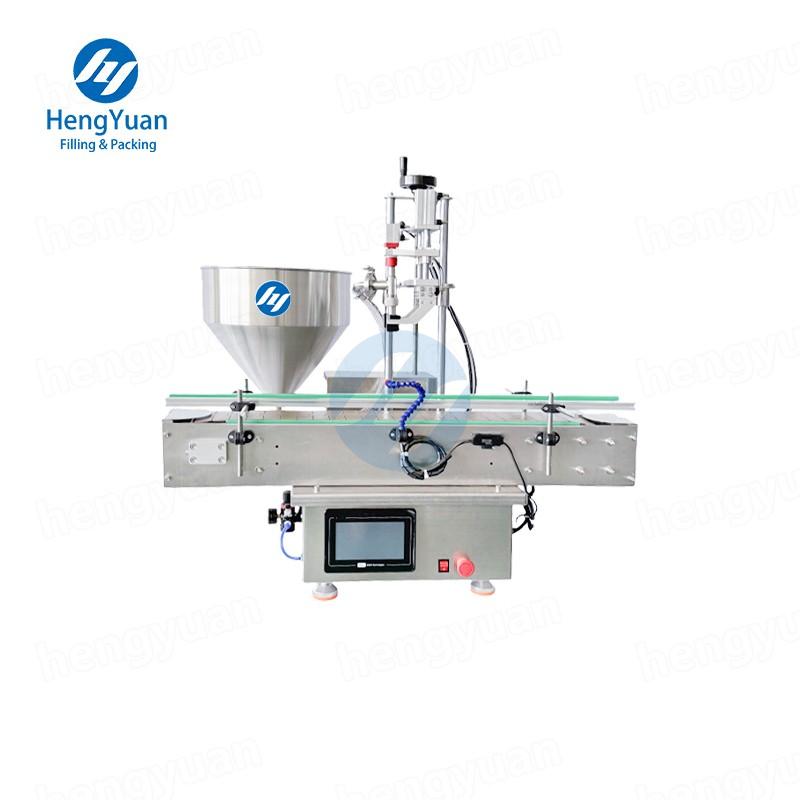

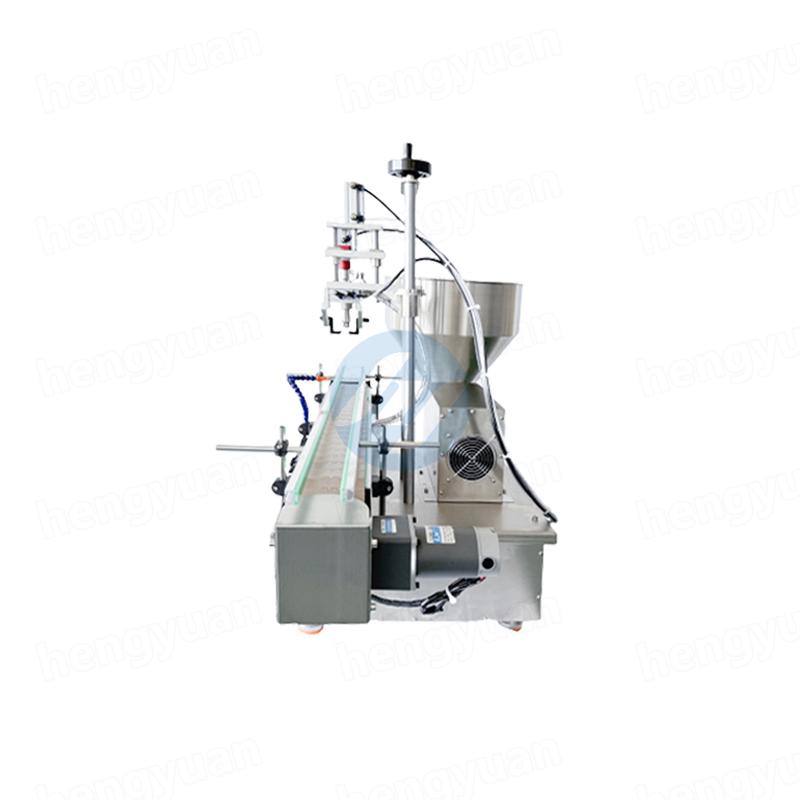

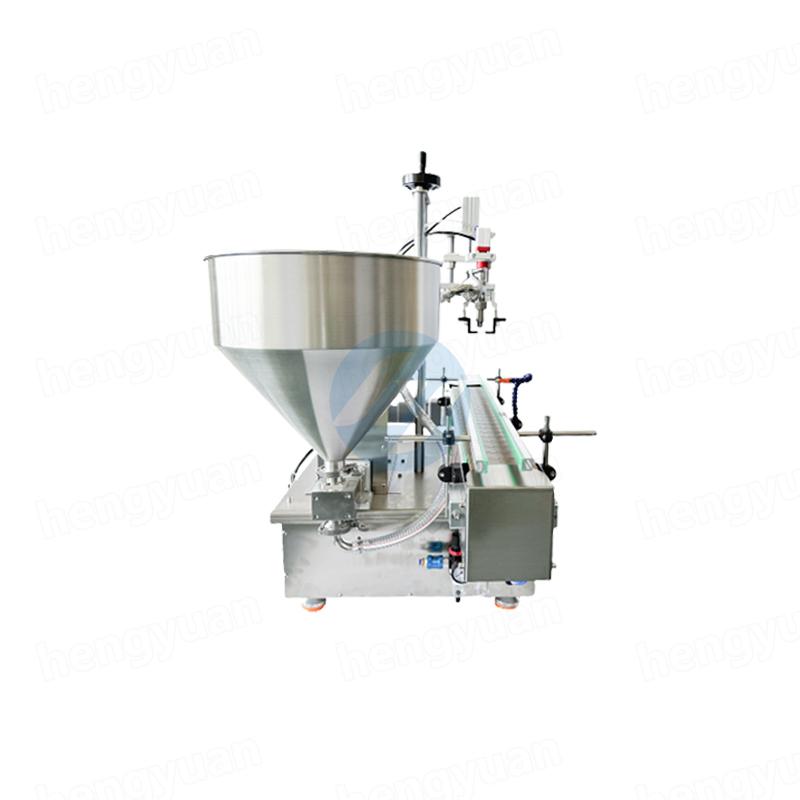

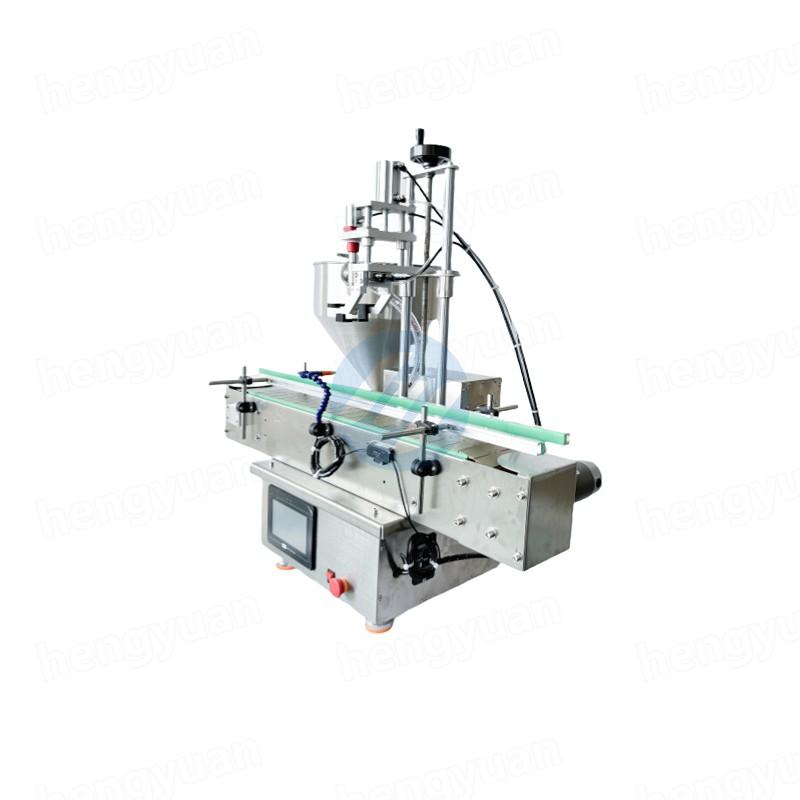

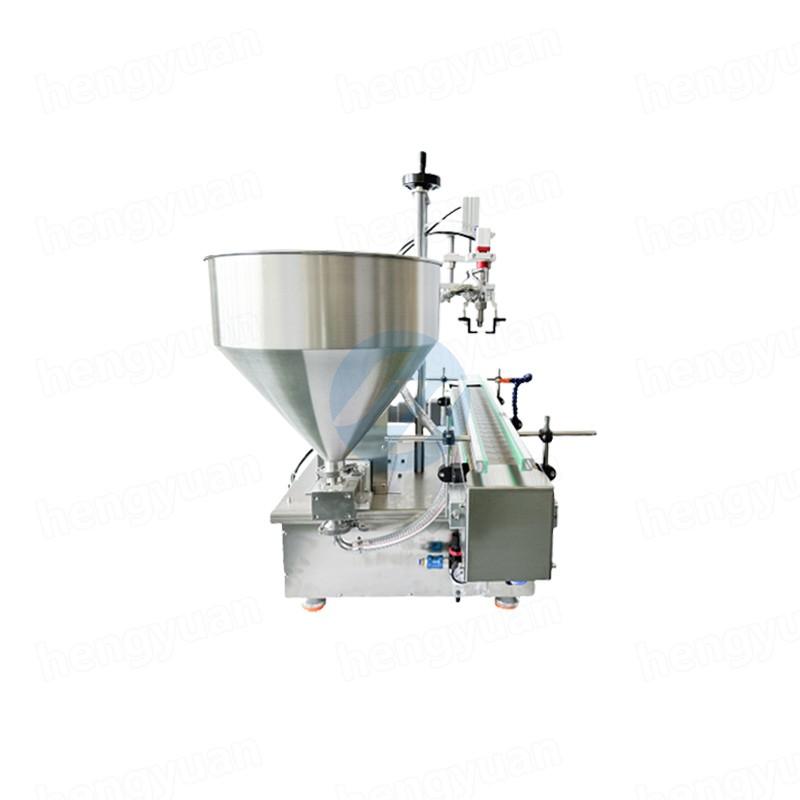

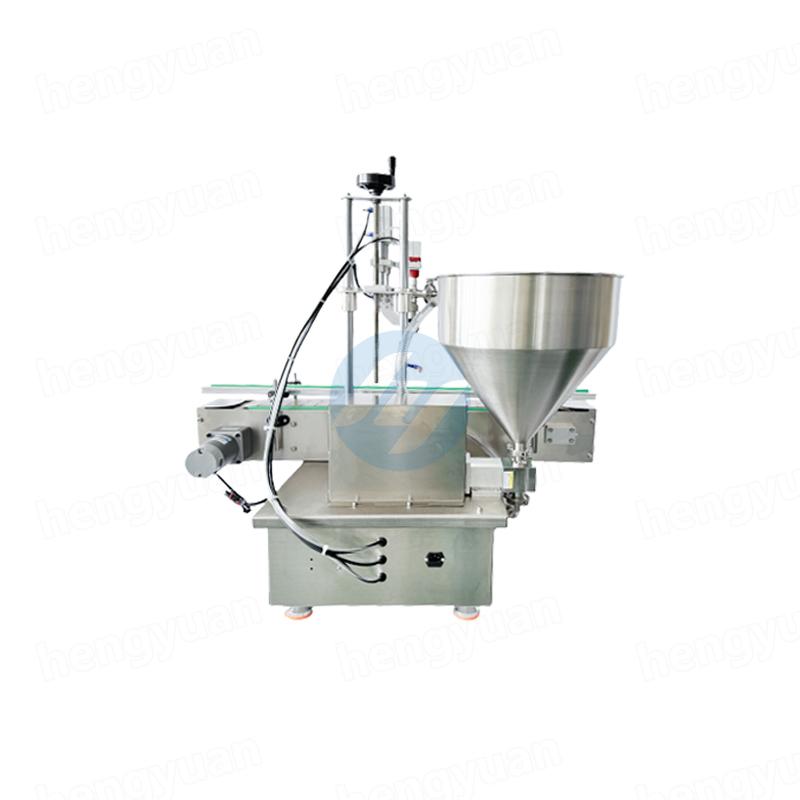

HYGP-D100 Automatic Desktop Gear Pump Dosing Filling Machine
Product Introduction
The automatic desktop gear pump bottle filling machine has advantage of high accuracy when filling liquid and pure viscous liquid, gel, cream, sauce, paste like peanut buffer, honey, noodle pulp, tomato paste etc. It is matched with servo motor and PLC to control filling. It is widely used in food, cosmetics, daily chemical, pesticide industries.

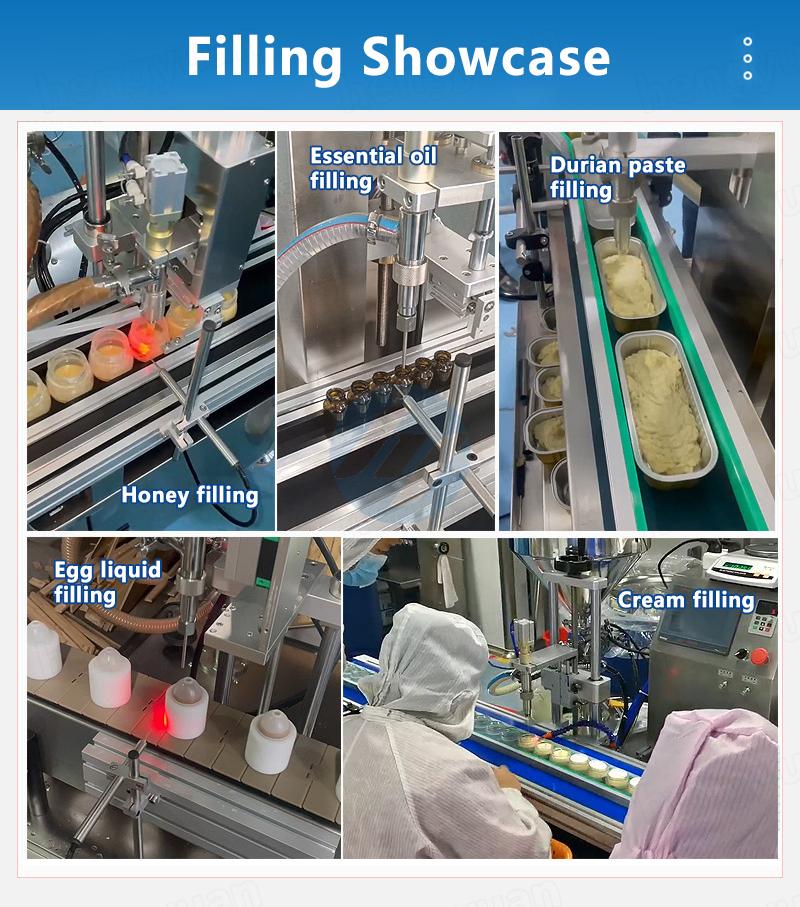

Product Application
Food:
Honey, jelly, jam, yogurt, cream, ice cream, eight treasure porridge, tomato paste, sesame paste, flour paste, maltose, mustard paste, mashed potatoes, bean paste, salad dressing, chocolate, yeast, butter, animal fat, cheese, cooking oil, juice, water, wine, liquor, etc.
Daily chemical products:
Shampoo, shower gel, bath milk, soap, hand cream, hand washing liquid, perfume, sunscreen, water, nail polish, emulsion, moisturizing water, essence oil, toothpaste, cleansing cream, facial cream, essence oil, silica gel, rubbing treasure, detergent, laundry detergent, bleach and so on.
Other categories:
Grease, lubricant oil, pet ration, Vaseline, cough syrup, industrial glue, white latex, glucose, gelatin, daphnetin, normal saline, paint, waterproof glue, etc.
Product Introduction
The automatic desktop gear pump bottle filling machine has advantage of high accuracy when filling liquid and pure viscous liquid, gel, cream, sauce, paste like peanut buffer, honey, noodle pulp, tomato paste etc. It is matched with servo motor and PLC to control filling. It is widely used in food, cosmetics, daily chemical, pesticide industries.
Product Application
Food:
Honey, jelly, jam, yogurt, cream, ice cream, eight treasure porridge, tomato paste, sesame paste, flour paste, maltose, mustard paste, mashed potatoes, bean paste, salad dressing, chocolate, yeast, butter, animal fat, cheese, cooking oil, juice, water, wine, liquor, etc.
Daily chemical products:
Shampoo, shower gel, bath milk, soap, hand cream, hand washing liquid, perfume, sunscreen, water, nail polish, emulsion, moisturizing water, essence oil, toothpaste, cleansing cream, facial cream, essence oil, silica gel, rubbing treasure, detergent, laundry detergent, bleach and so on.
Other categories:
Grease, lubricant oil, pet ration, Vaseline, cough syrup, industrial glue, white latex, glucose, gelatin, daphnetin, normal saline, paint, waterproof glue, etc.
Main Features
Technical Parameters
Filling range
5ml-30000ml (customized)
Filling nozzle outer diameter
Customized according to bottle mouth
Filling accuracy
≤±0.5%
Filling speed
45L/Minute ( Others can be customized)
Control method
Automatic
Hopper Optional Function
Stirring, insulation, pressurization
Volume of Hopper
40L Vertial Hopper. Optional 80L U Hopper
Working air pressure
0.4-0.8Mpa
Operation voltage
220V or 110V, Single phase.
Electricity consumption
1Kw
Machine size
110*60*95cm
Weight
55Kg
1) Simple structure in linear type, easy in installation and maintenance.
2) Adopting brand components in pneumatic parts, electric parts and operation parts.

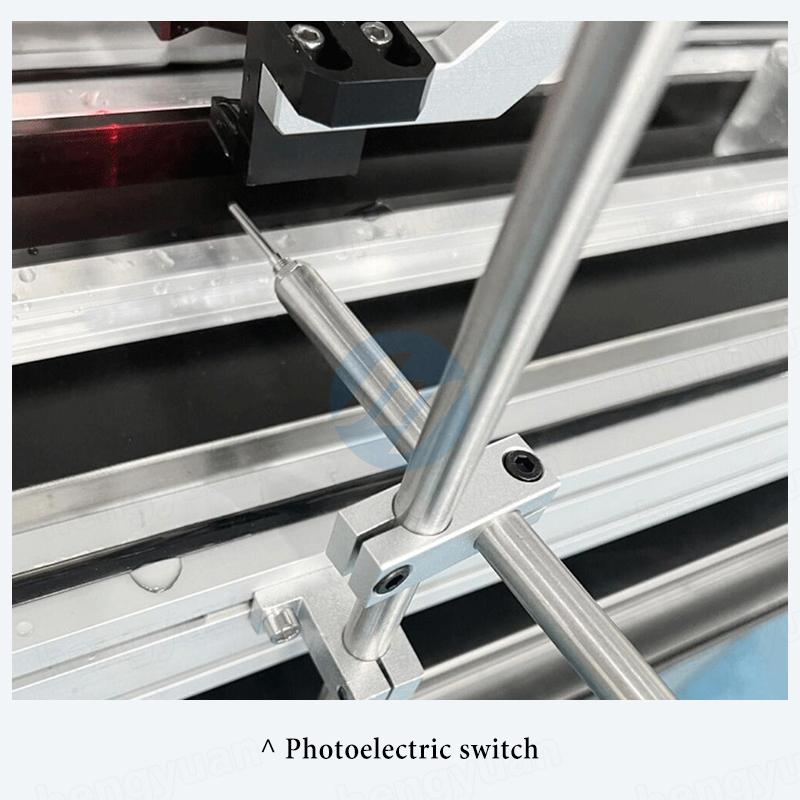

3) This filling machine is a high-tech filling equipment controlled by microcomputer PLC programmable, equip with photo electricity transduction and pneumatic action.

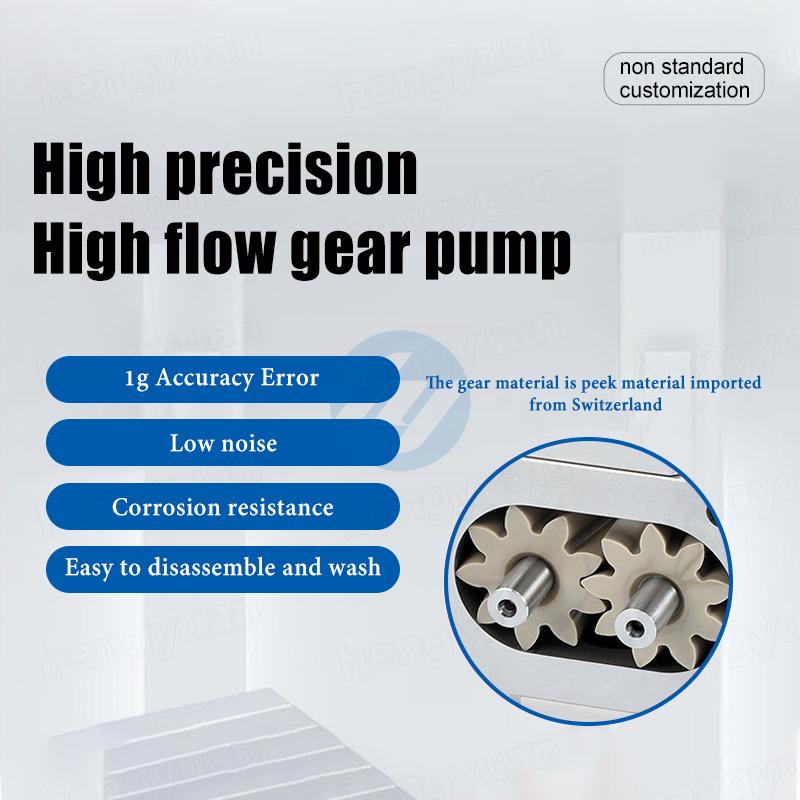

4) Accurate measurement: adopt servo control system with gear pump.

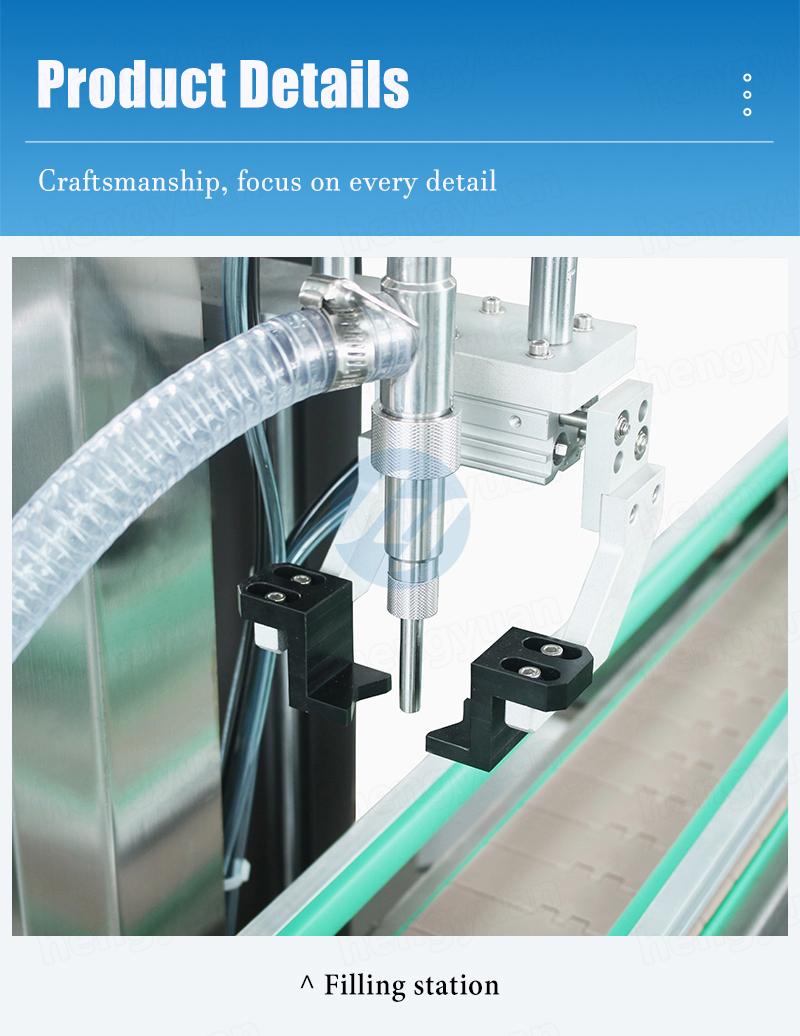

5) There is anti-leakage nozzle, prevent the liquid drop on conveyor cause pollution.

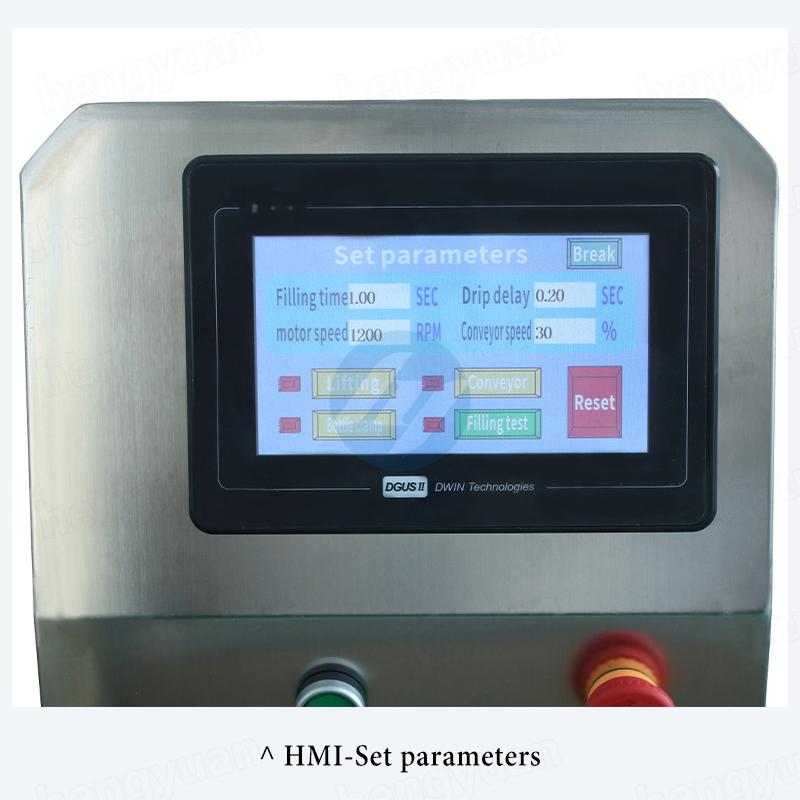

6) Convenient adjustment: replacement filling specifications only by setting on touch screen.
7) Wide range of application: unique pump head structure, can transport high viscosity pure materials. (As long as the flow can be filled).
8) Easy to wash: pour clean water into the equipment and wash it with high-speed circulating water, which is convenient and sanitary.
