Description

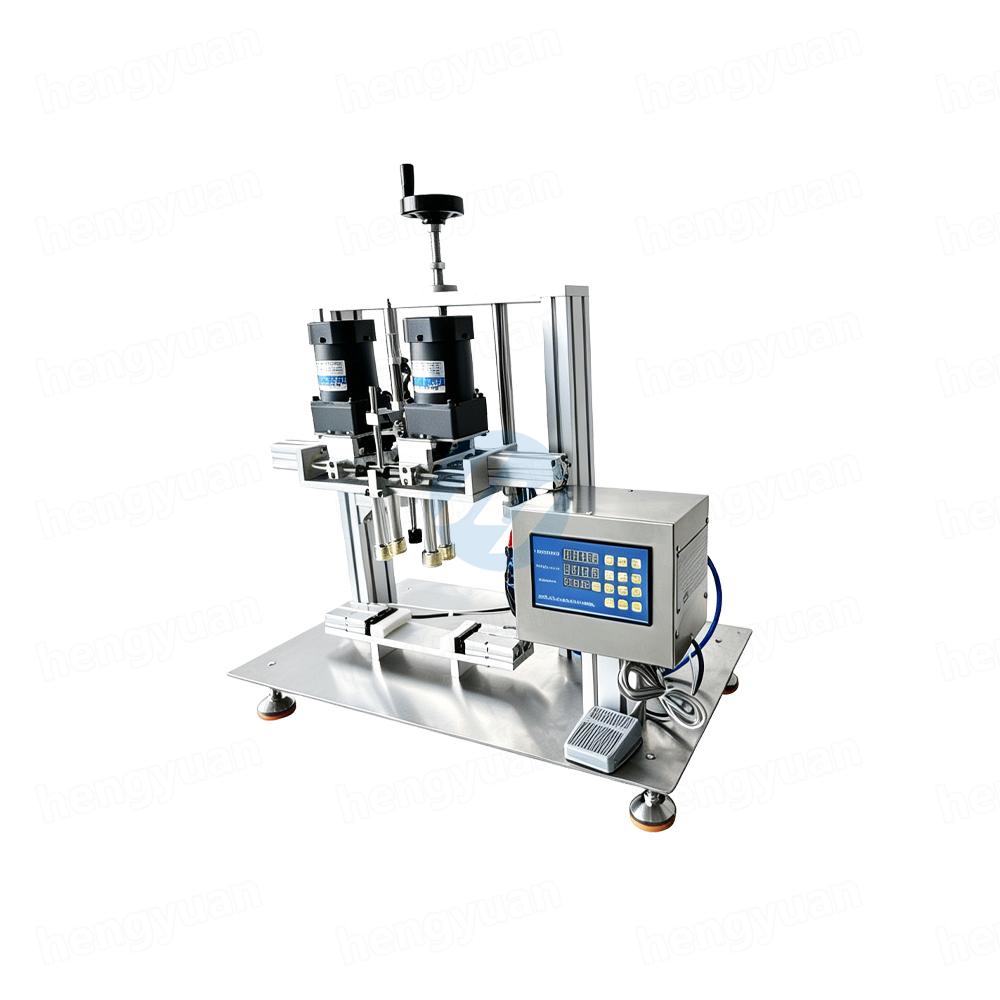

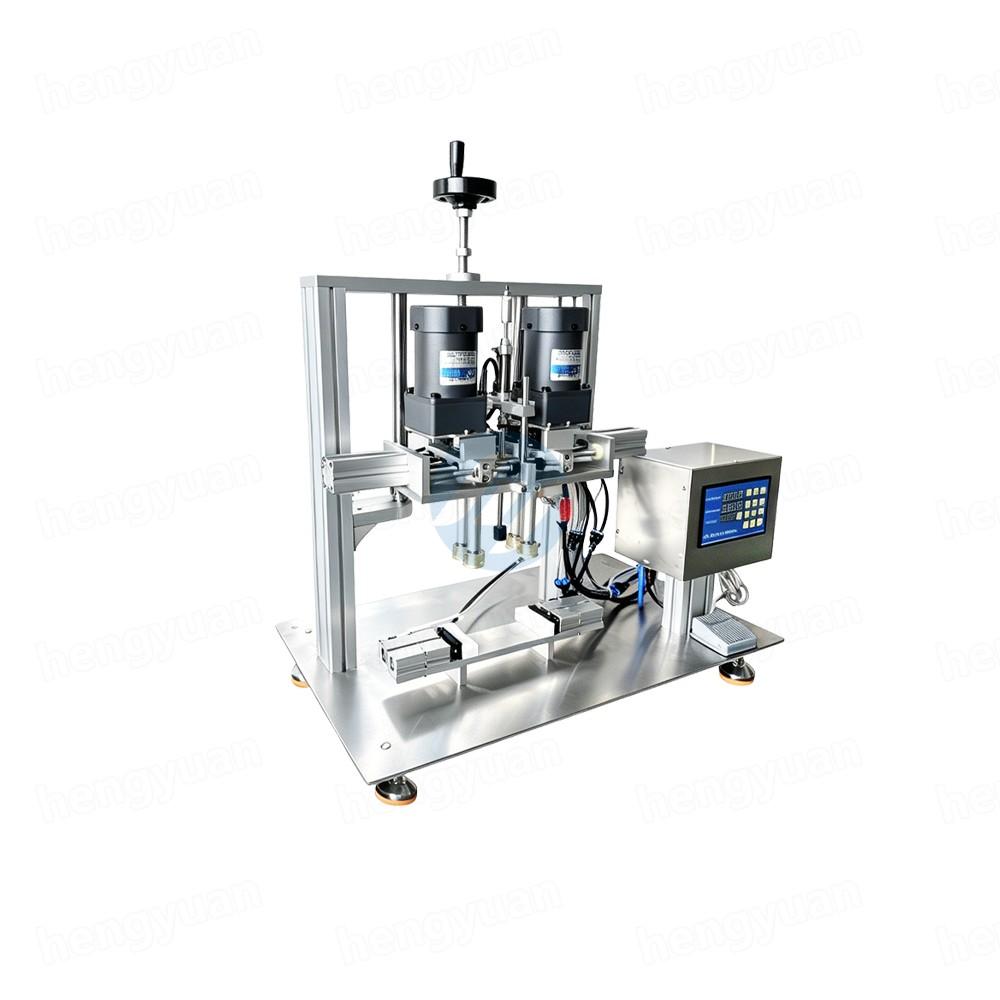

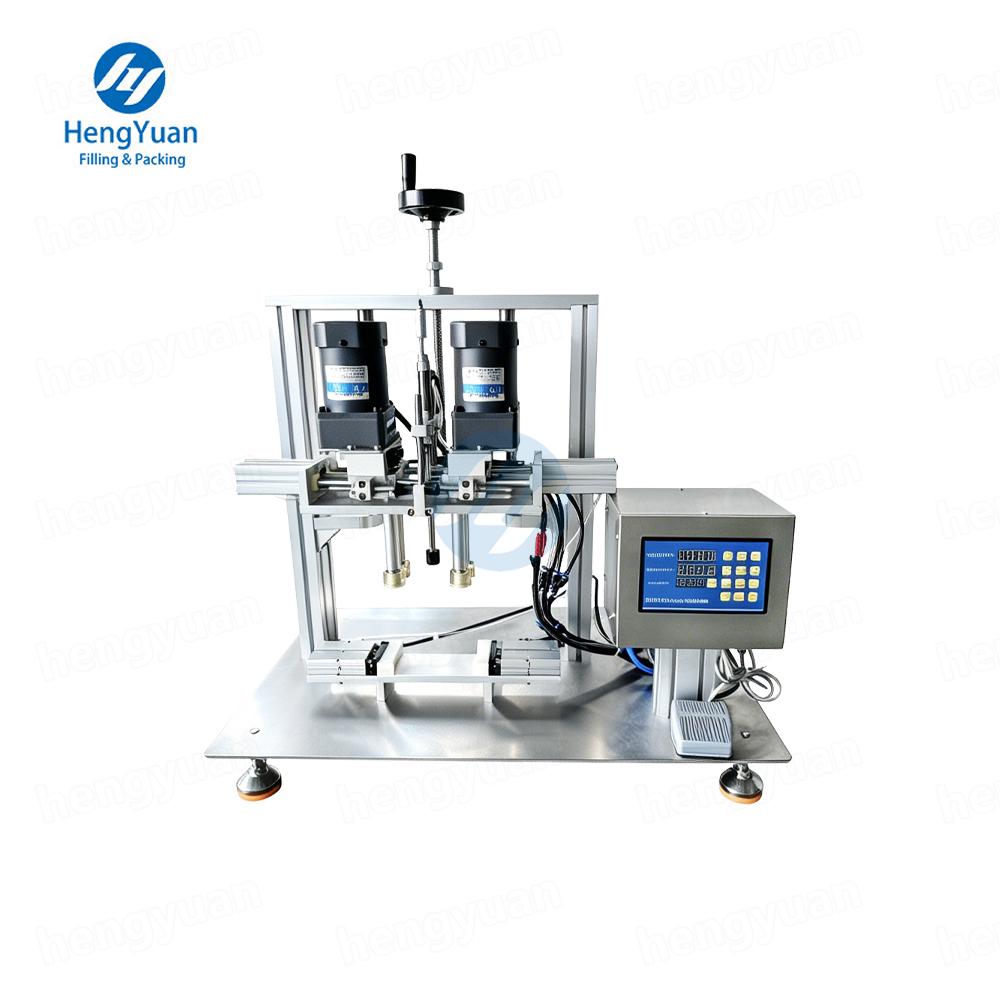

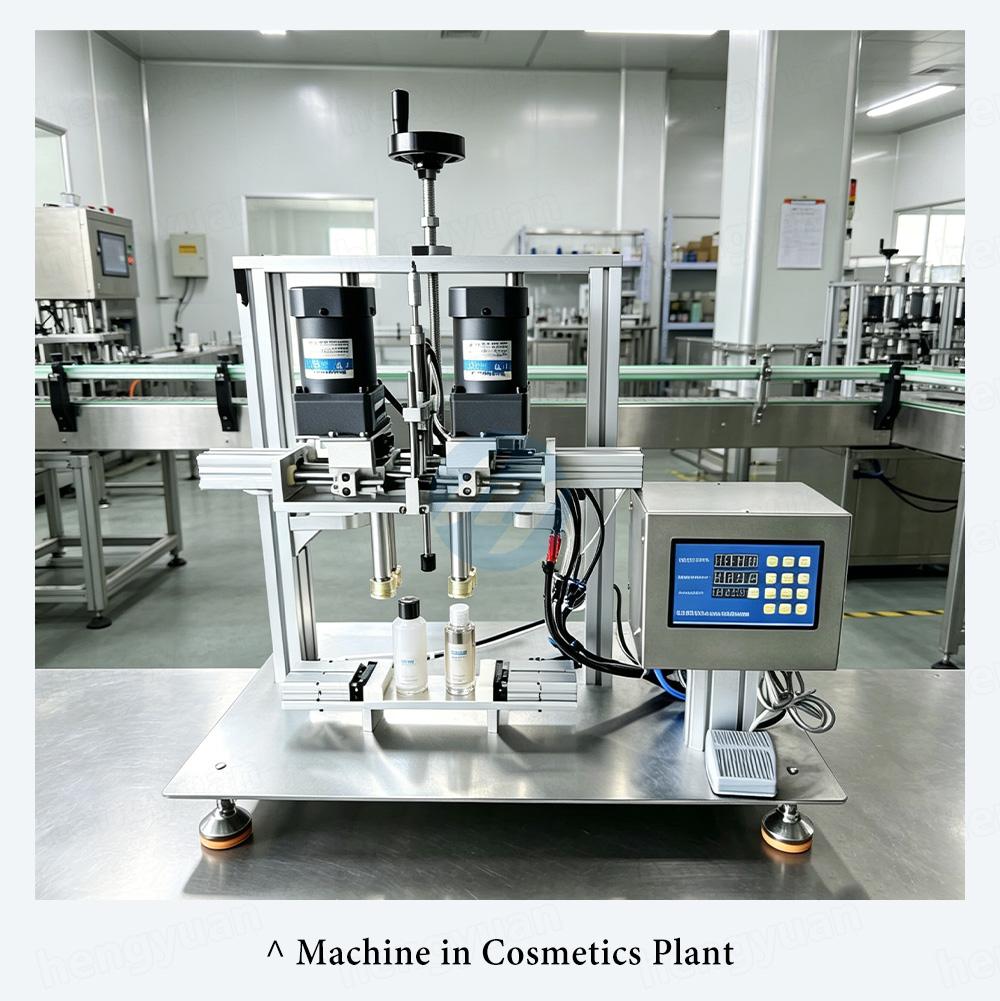

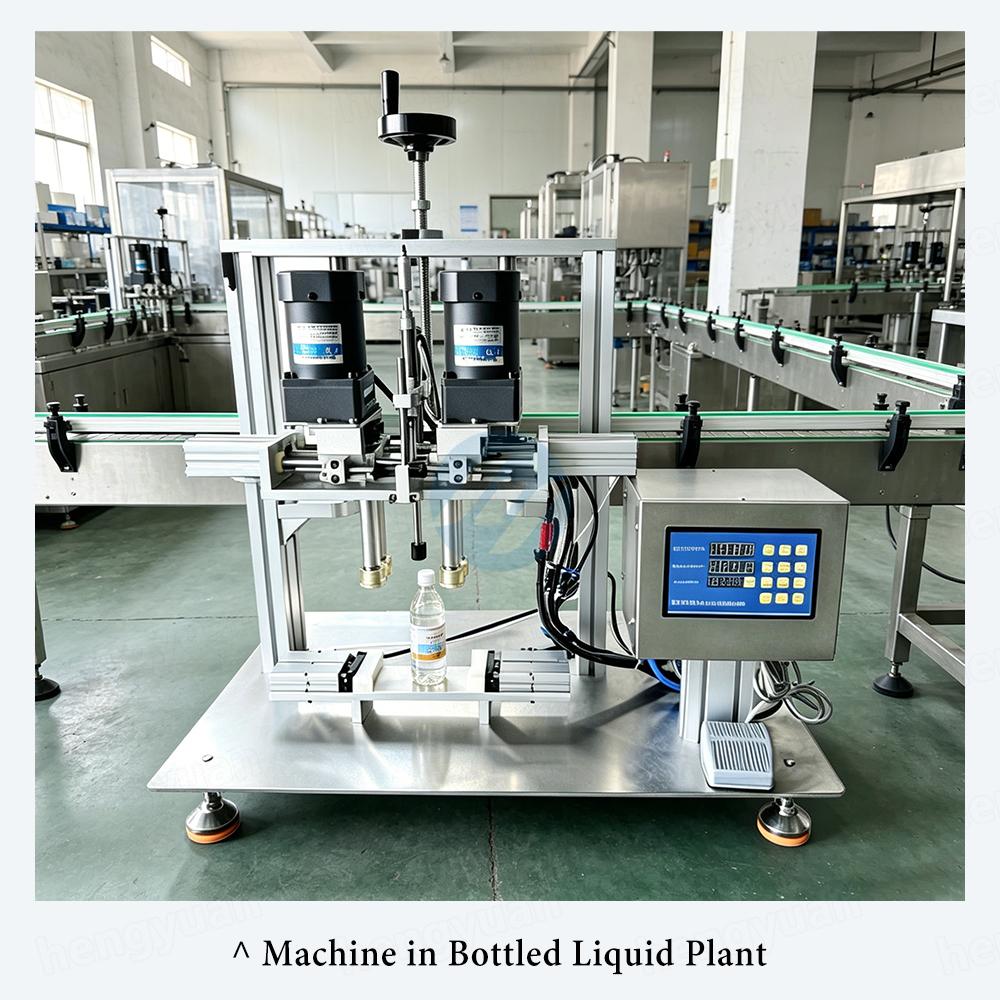

YKCGJ-6120-BW Semi-automatic Desktop Bottle Screwing-on Capping Machine
The Semi-automatic Desktop Four-Wheel Clamping Screwing Capping Machine is designed for cap screwing applications across a variety of bottle shapes in industries such as food, pharmaceuticals, daily chemicals, pesticides, and cosmetics. The operation process includes manual cap feeding, automatic bottle clamping, and automatic cap screwing.
This machine features semi-automated operation with excellent stability and easy adjustment. It requires no additional spare parts when switching between different bottle types or cap sizes; adjustments can be made quickly and conveniently, making it a flexible and cost-effective solution for diverse production needs.
Operation Steps
1) Connect the power supply and compressed air.
2) Adjust the capping head height according to the bottle size.
3) Place the bottle directly under the capping head.
4) Press the start button to initiate automatic capping.
Remove the capped bottle after sealing is completed.
Machine Application
l Suitable for flat-top plastic and metal screw caps.
Suitable for caps with tubes, pump caps, spray caps, and trigger caps, with manual cap placement onto bottles.
Techinical parameters
| Parameter | Specification |
| Model | YKCGJ-6120-BW |
| Capping Capacity | 20 – 30 pcs/min |
| Applicable Cap Diameter | 25 – 120 mm |
| Suitable Bottle Size | Height: 50 – 400 mm, Width: 20 – 100 mm |
| Total Power | 120 W |
| Air Pressure | 0.4 – 0.6 MPa |
| Torque Force | 4 – 8 kg/cm² |
| Power Supply | AC 220V / 110V, single phase (globally customizable) |
| Dimensions (L × W × H) | 57 × 37 × 60 cm |
| Weight | 40 kg |
Main Features
(1)Efficient Capping: Semi-automatic 4-wheel clamping system ensures fast, consistent, and secure bottle capping for various lid sizes.
(2)Digital Control Panel: Easy-to-use digital interface allows precise operation adjustment, improving production accuracy and reducing errors.
(3)Durable & Reliable: Constructed with high-quality materials, the machine guarantees long-term stability and minimal maintenance.
(4)Wide Application Compatibility: Suitable for food, beverage, pharmaceutical, and cosmetic industries, adaptable to multiple bottle types and cap sizes.
(5)User-Friendly Design: Ergonomic structure and simple operation make it ideal for small to medium-scale production environments.
