Description

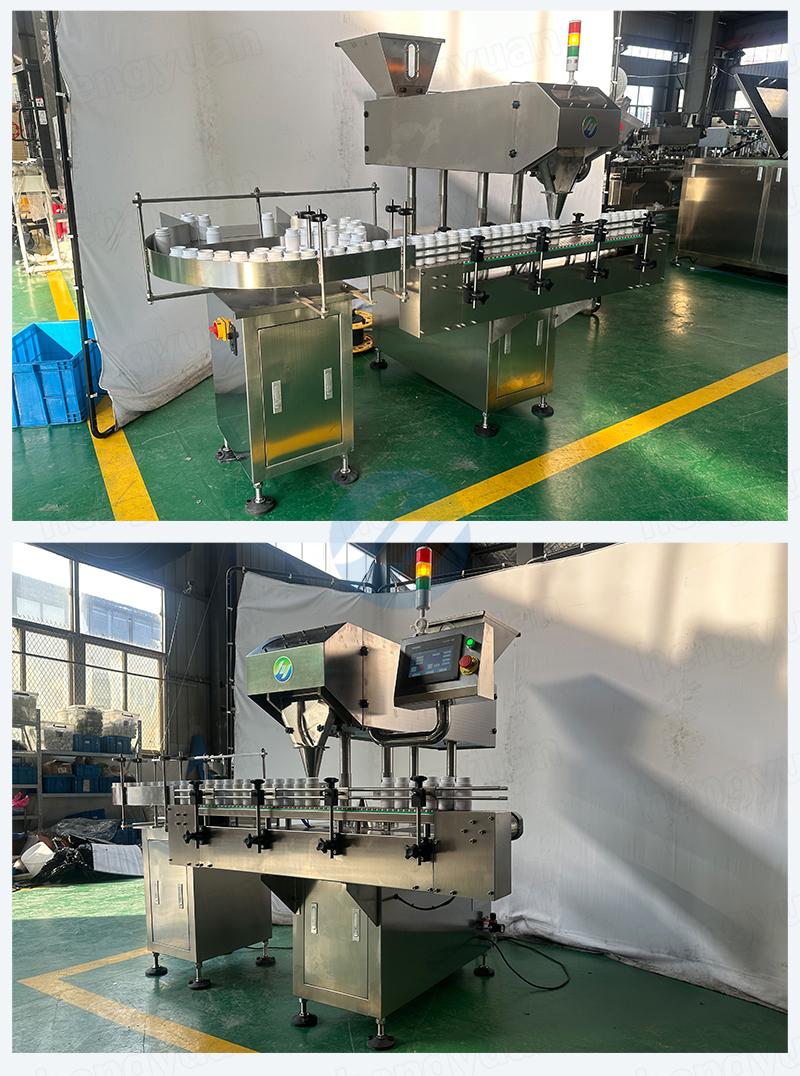

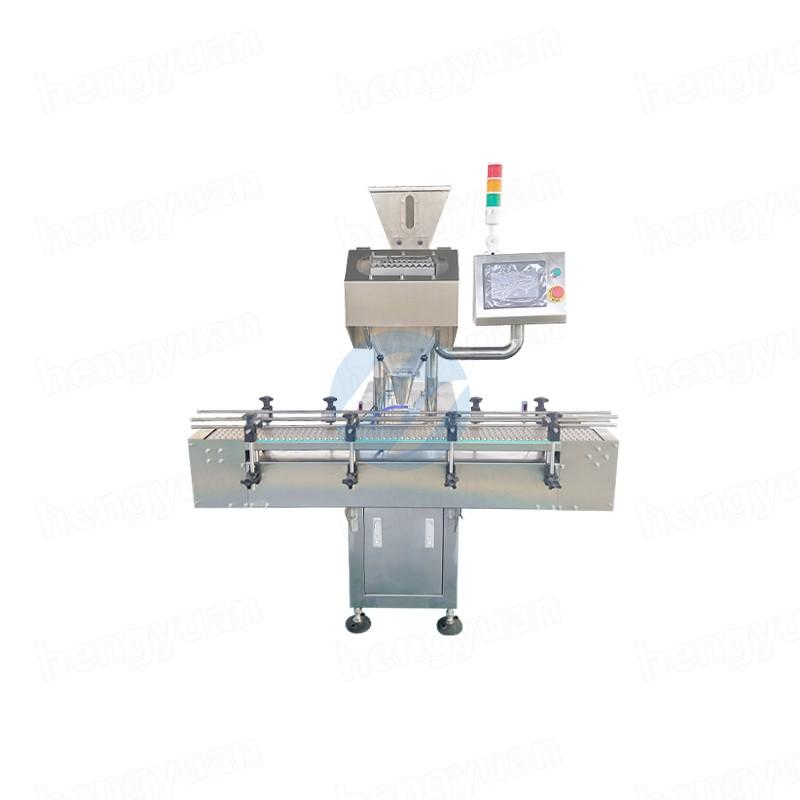

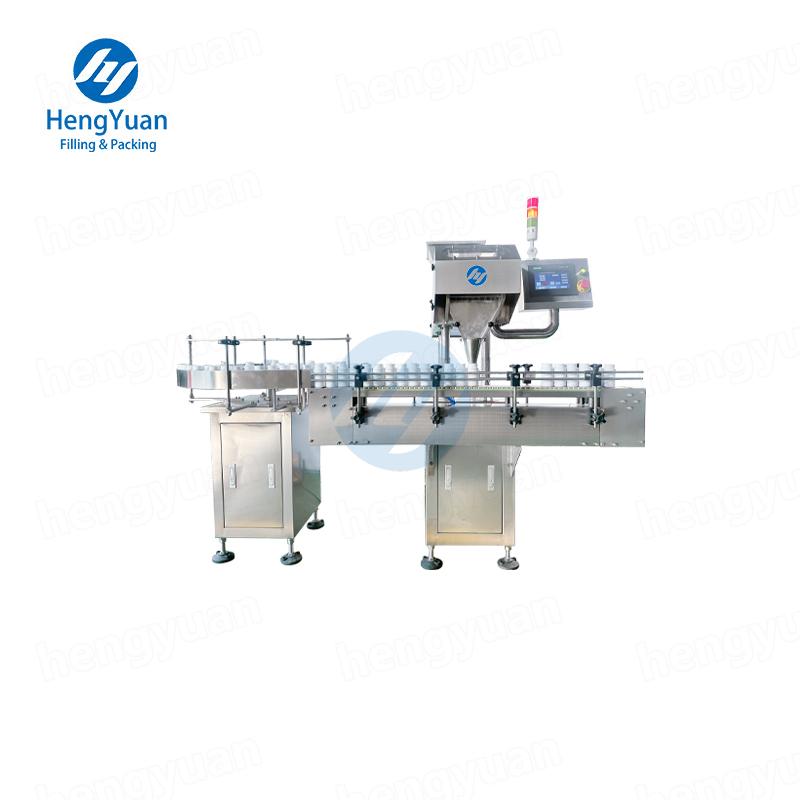

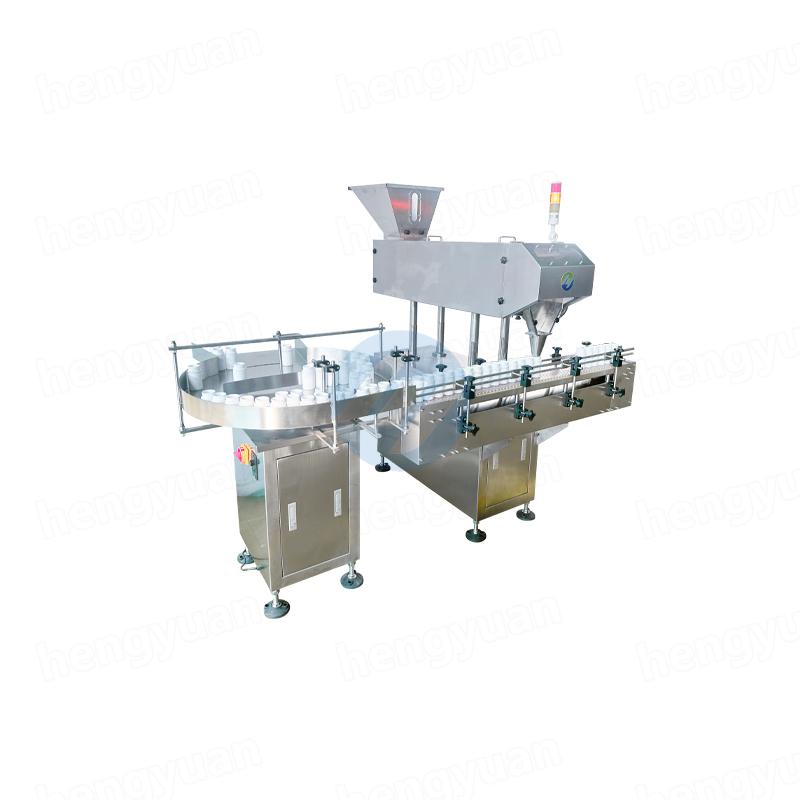

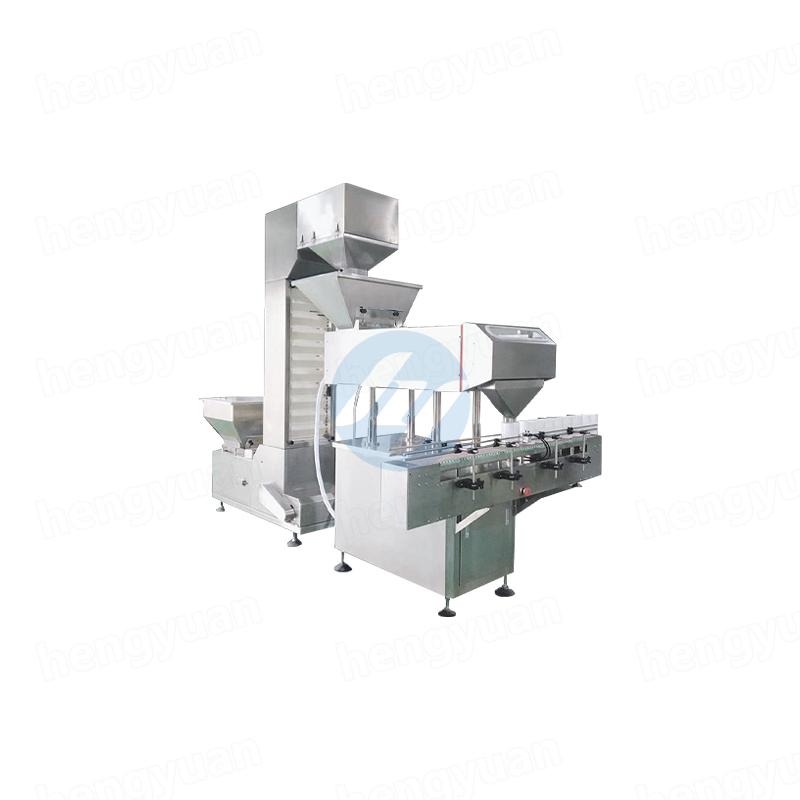

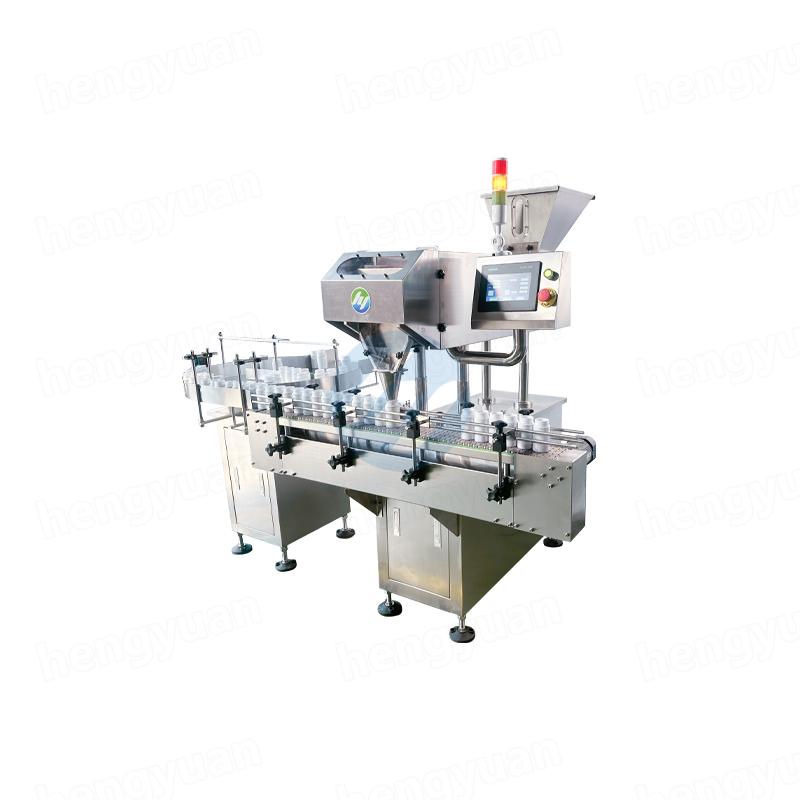

Automatic Electronic Tablets Counting Filling Machine
Eight Channels One Head Bottle Filler HYJF-8
Product Introduction
Automatic Electronic Counting Machine is mainly used for bottle packing of tablets (including abnormal tablets), capsules, gels (including transparent gels and opaque gels) pills and similar solid granules. Highly accurate counting.Using our own original high anti-dust sensor technology, the machine works accurately with good stability in heavy dust conditions.

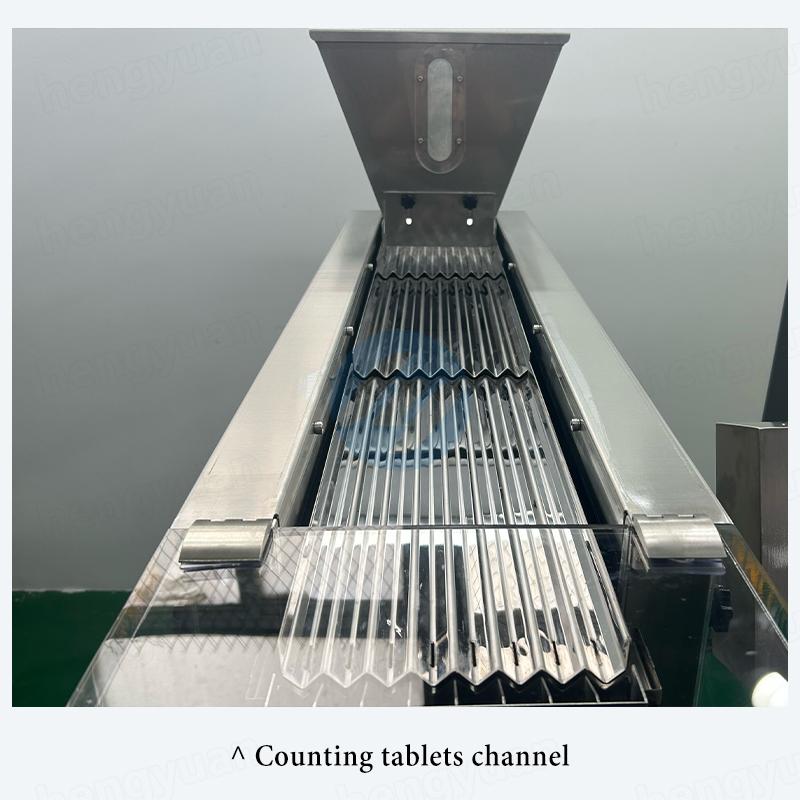

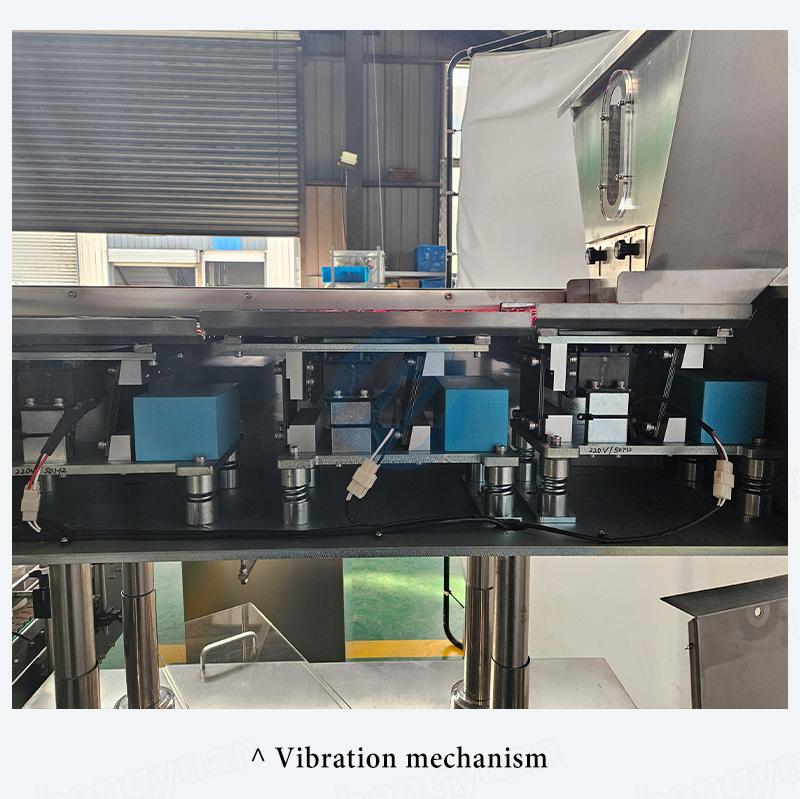

Feeding evenly with quiver, special patent filling part protects materials from harm.
No bottle under the filling hopper, no materiel in the supply hopper, or the photoelectric sensor box is abnormal, the machine makes alarm.

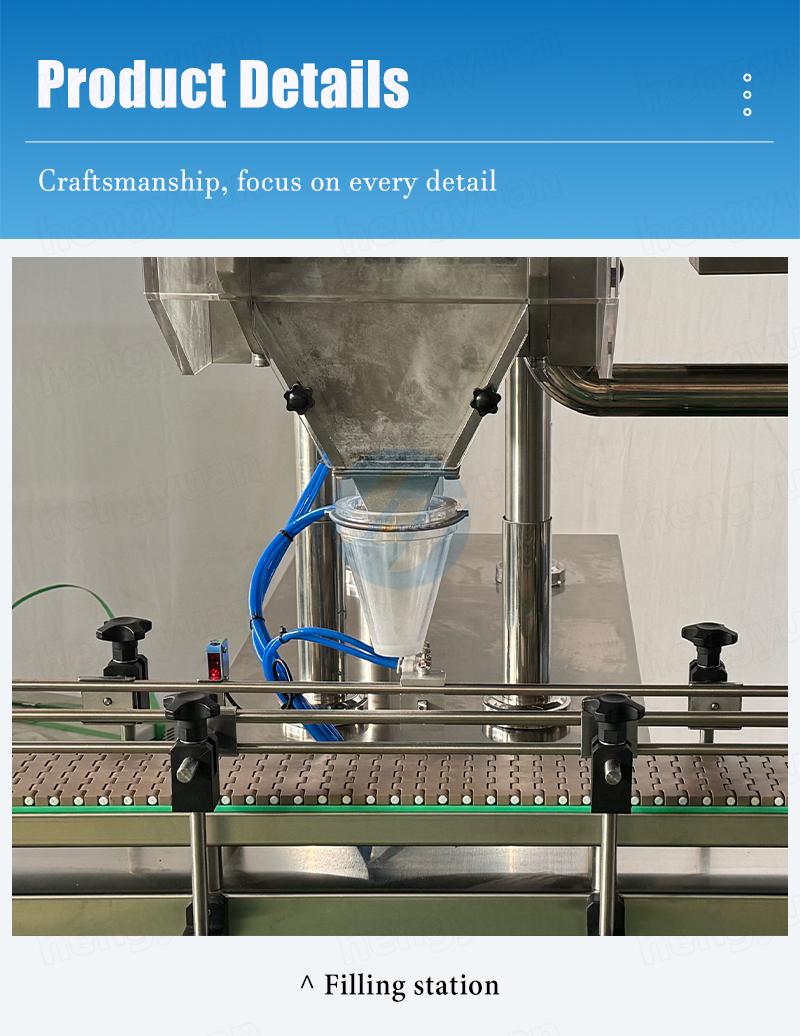

The special filling hopper avoids the materials jam, small mouth bottle can quickly bottling. (Available as an option)
You can choose the advanced device of getting rid of powder and the device of getting rid of static electricity. (Available as an option)
Sound and light alarm. (Available as an option)
Detection options include: lack of products in the supply hopper, damaged tablet, weighing systems online. (Available as an option)
Fully compliant to GMP regulations.
Product Application
Automatic Electronic Counting Machine is mainly used for bottle packing of tablets (including abnormal tablets), gels (including transparent gels and opaque gels) pills and similar solid granules.
Technical Parameters
Model
HYJF-8
Applicable
00-5#capsules, soft capsules, <φ22 normal tablets, special shape tablets, coating tablets, φ3-20pills and other solid granules
Capacity
10-60BPM
Working range
Adjust from 1-9999 per bottle
Power supply
220V/110V, 50Hz/60Hz, 0.5kw
Air supply
0.6Mpa, 10-18l/min
Size
136x125x167cm
Weight
250kg
Remarks
Capacity is subject to the type and size of the bottle and tablet, as well as the quantity filled per bottle
Main Features
1) Excellent Compatibility: This machine is capable of flexibly handling solid formulations or solid particles such as tablets (including irregular shapes), capsules, softgels (whether transparent or opaque), and pills, achieving efficient counting and bottling operations.2) Anti-Clogging Design: Equipped with a special nozzle structure, it effectively prevents drug clogging and can quickly complete bottling even for bottles with smaller openings. (This feature is an optional item.)
3) Material Protection: The feeding and discharging processes are smooth and uniform, ensuring that materials remain intact and bottles are filled accurately.
4) Comprehensive Detection Function: It integrates multiple detection and alarm control functions such as no-bottle-no-counting and fault self-check, ensuring safe and worry-free production.
5) High Dust Resistance Technology: Utilizing an innovative high-dust-resistant photoelectric sensing technology, it maintains stable operation even in environments with high dust concentrations.
6) Simple Linear Structure for Easy Installation and Maintenance: The machine adopts a simple linear structure design, making installation and subsequent maintenance work easy and quick.
7) World-Renowned Brand Components: Pneumatic parts, electrical parts, and operating parts are equipped with advanced, internationally renowned brand components, ensuring superior quality and reliability.
8) Accurate Measurement for Excellent Filling Effect: With a precise measurement system, the machine achieves an exceptional filling effect, meeting high-standard production requirements.
9) Highly Automated and Intelligent Operation: The machine operates with a high degree of automation and intelligence, requiring minimal manual intervention and producing no pollution, aligning with modern production environmental standards.
10) Wide Range of Applicability: This machine is suitable for filling a variety of particles, such as tablets, capsules, gels, beans, hardware, candies, etc., making it versatile for a wide range of applications.
