Automatic Trigger Lid Bottle Filling Line

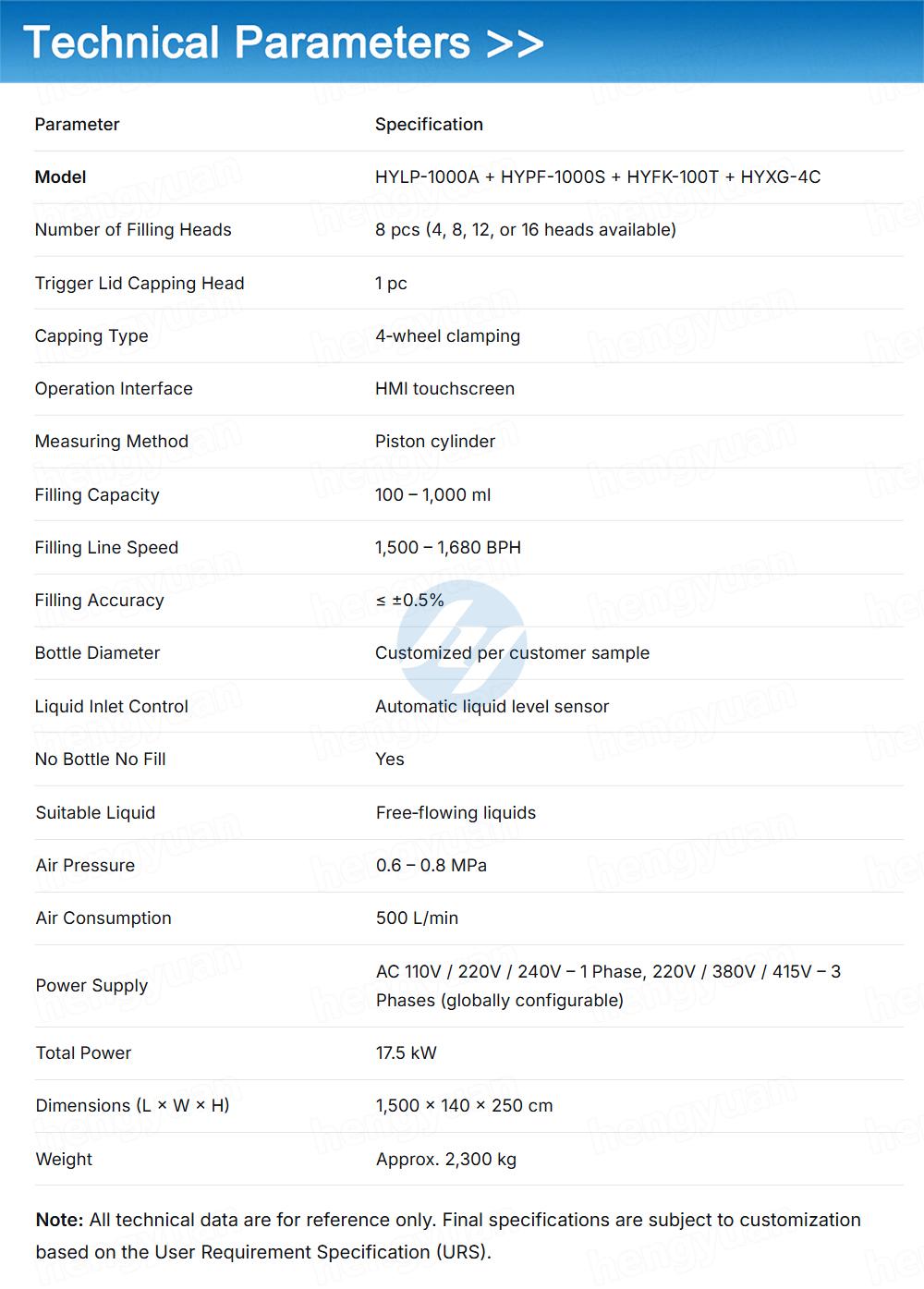

  • Product Item：HYLP-1000A+HYPF-1000S+HYFK-100T+HYXG-4C
  • filling material: Bug Cleaner, Sterilization Spray
  • Function: Filling liquid in containers
  • Feature: High Accuracy
  • Filling volume; 100-1000ML
    • automatic trigger lid filling line , spray bottle filling machine , liquid detergent packaging line , trigger cap capping machine , bottle labeling equipment , daily chemical filling production line , 4-head bottle labeling machine , precision liquid filler , bottle unscrambler machine , cleaner bottle filling line
    Inquiry Send Email

    Description


    HYLP-1000A + HYPF-1000S + HYFK-100T + HYXG-4C Automatic Trigger Lid Bottle Filling Line


    Brief Introduction

    This automatic filling line integrates mechanical, electrical, pneumatic, and photoelectric systems into a fully automated production solution. Controlled by PLC and HMI touch screen, it enables intelligent and user-friendly operation.

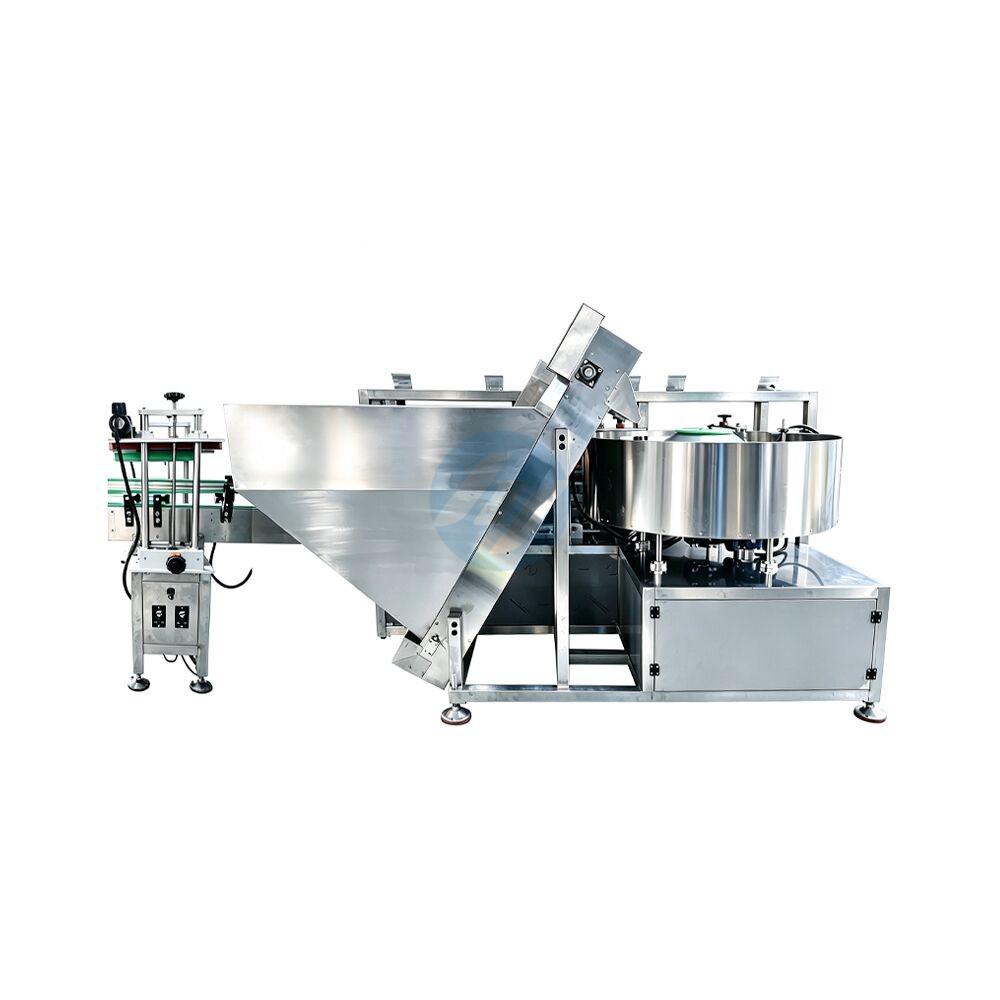

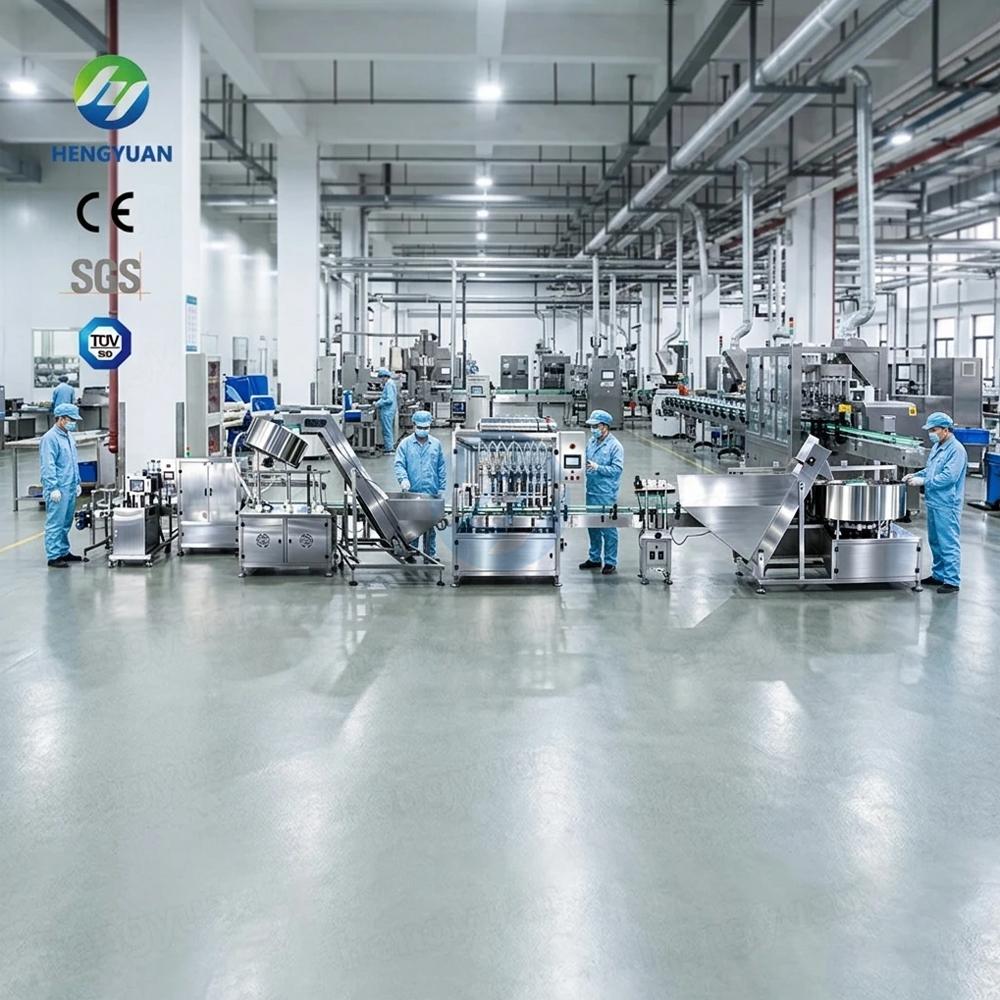

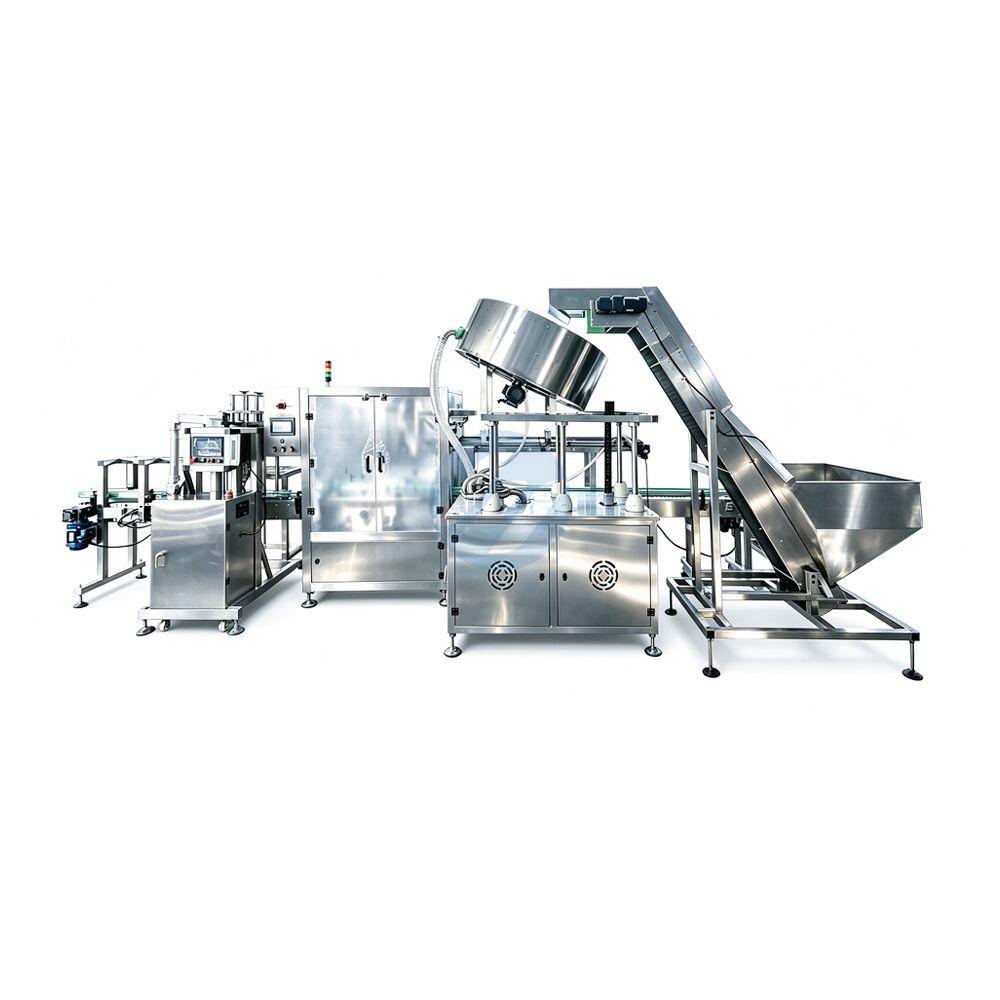

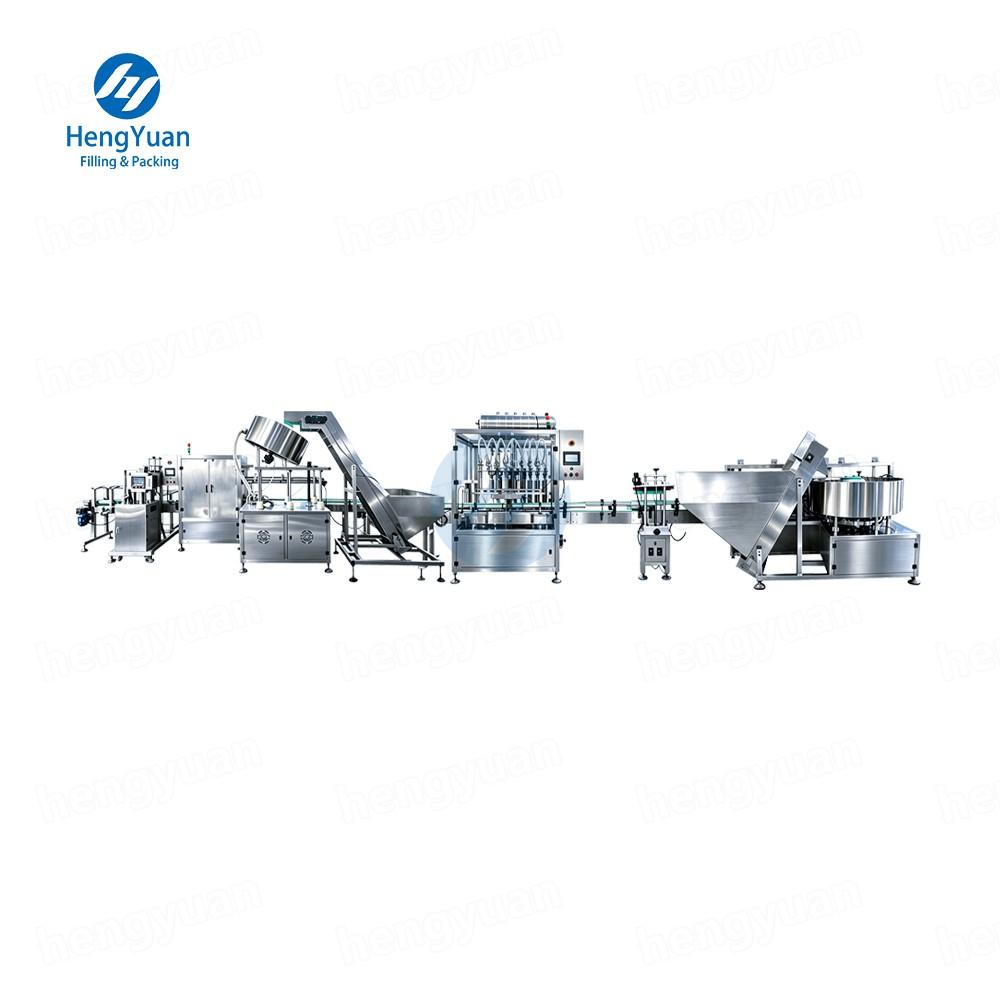

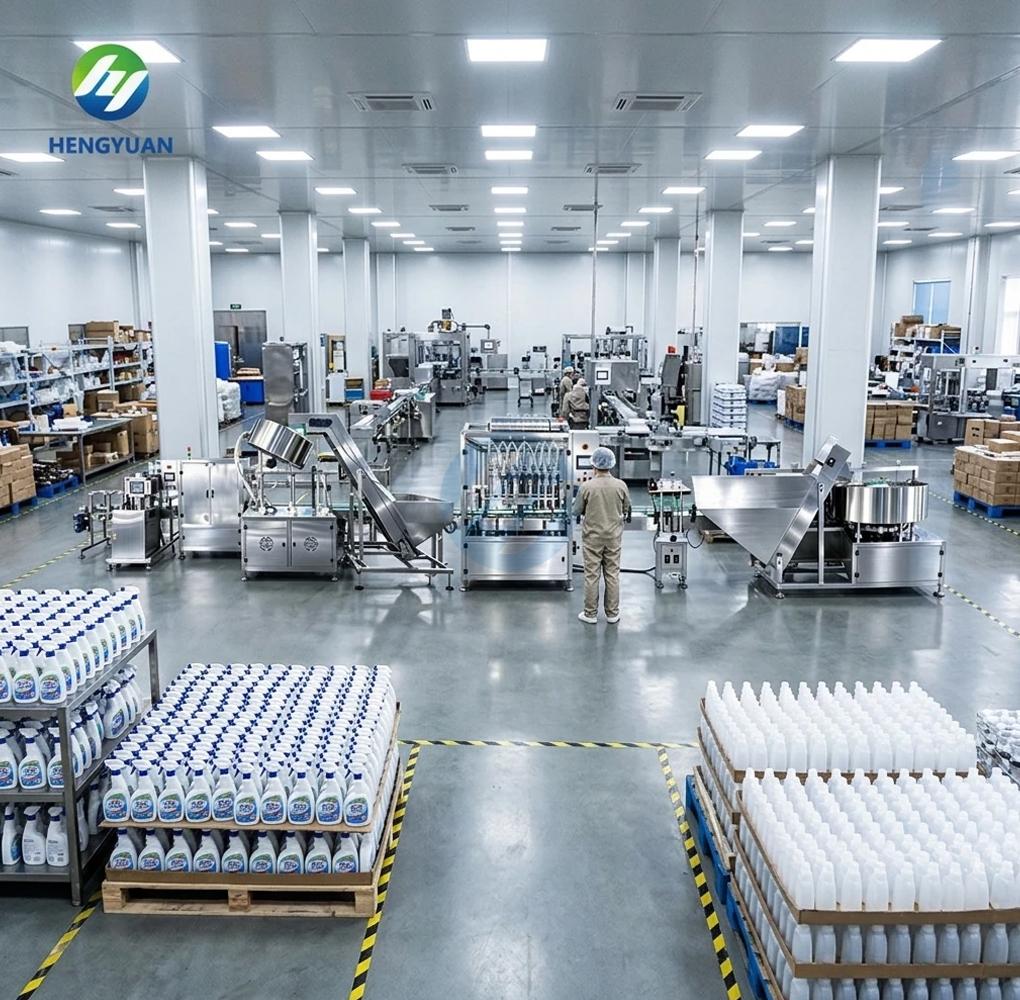

    The line consists of a bottle unscrambler, bottle turning mechanism, filling machine, trigger lid feeding elevator, trigger lid sorter, tracking capping machine, four-wheel tightening unit, and missing cap rejection device. It can also be seamlessly connected with optional labeling machines, coding machines, and cartoning equipment to meet further packaging needs.

    Designed with comprehensive functionality, this filling line is ideal for small to medium volume production of bottled products.
    Application Scope

    This filling line is specifically suited for trigger spray products in the daily chemical industry, including bug cleaner, disinfectant spray, kitchen degreaser, glass cleaner, and similar liquid products.



    Key Features

    1) Fully Automated Production Integration – Combines bottle unscrambling, turning, filling, trigger lid sorting, capping, tightening, and rejection into one continuous, intelligent production line.

    2) PLC and HMI Touchscreen Control – Provides user-friendly operation, real-time monitoring, and flexible parameter adjustment for efficient production management.

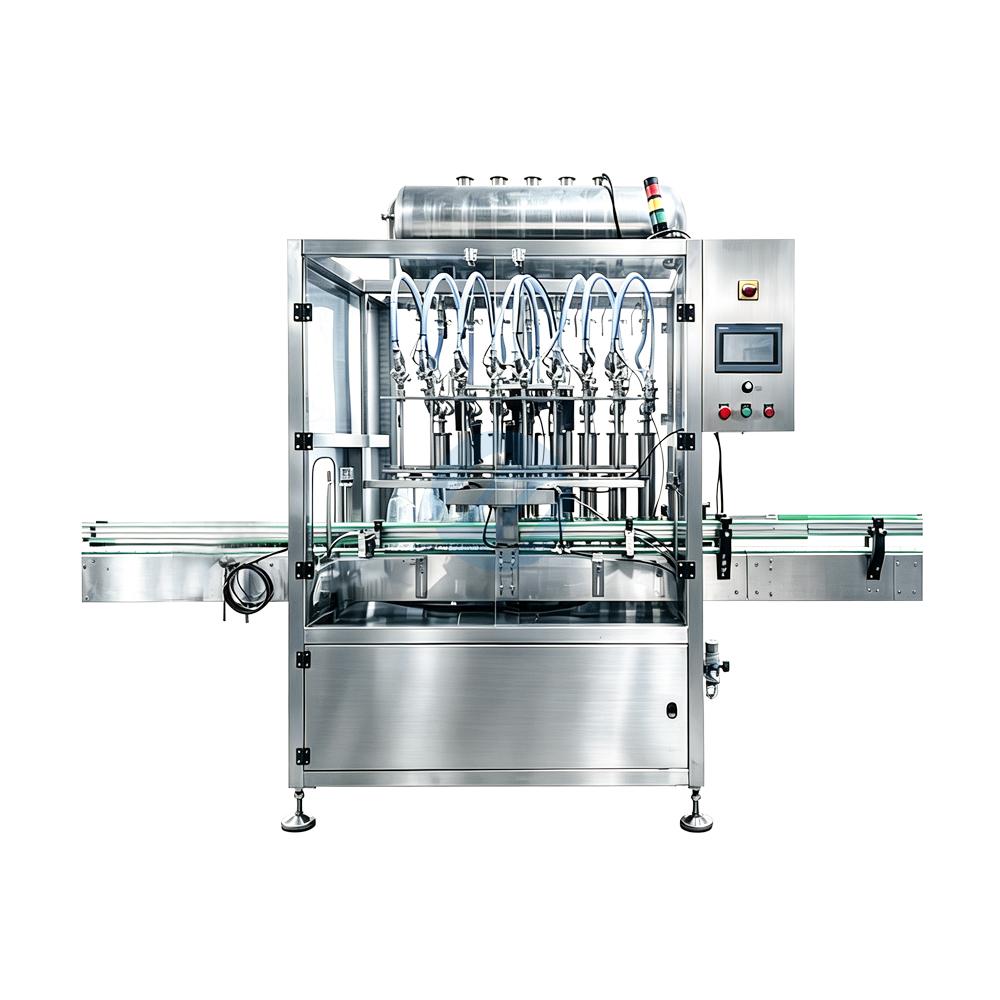

    3) High Filling Accuracy – Equipped with piston cylinder measuring technology to ensure consistent filling precision of ≤ ±0.5%.

    4) Versatile Capping System – Features a dedicated trigger lid sorter and a tracking type capping head to ensure secure and accurate cap application.

    5) No Bottle No Fill Function – Integrated sensor system prevents filling when no container is present, reducing product waste and maintaining cleanliness.

         6) Customizable and Expandable – The line can be tailored to accommodate various bottle sizes, and optional equipment such as labelers, coders, and cartoners can be added for a complete packaging solution.
