  • Automatic round bottle body side and top plane sticker labeling machine
  • Automatic round bottle body side and top plane sticker labeling machine
  • Automatic round bottle body side and top plane sticker labeling machine
  • Automatic round bottle body side and top plane sticker labeling machine
Automatic round bottle body side and top plane sticker labeling machineAutomatic round bottle body side and top plane sticker labeling machineAutomatic round bottle body side and top plane sticker labeling machineAutomatic round bottle body side and top plane sticker labeling machine

Automatic round bottle body side and top plane sticker labeling machine

  • Product Item:HYTB1-100TC
  • Key Selling Points: High-accuracy
  • Advantage: two labeling heads
  • Machinery Capacity: 2000BPH
  • Operating method: Touch screen
  • Bottle side and its cap top labeling machine , round plastic jar side and top labeler , glass jar side and top labeling machine , facial cream jar side and top labeling machine , honey jar body and cap labeler
    Inquiry Send Email

    Description

    Automatic Round Bottle Top and Side Double Postions

    Monobloc Labeling Machine



    Product Introduction
    Automatic round object top and side places sticker labeling machine can stick non-dry skicker label on the cylinder objects like bottle, jar, on body and cap top. With inspection of sensor, tracking label synchronously, ensure to labeling speed and smoothly. Host design labeling machines using imported and domestic advanced technology to improve and make a solution for instability of general domestic labeling. By optical fiber computer control, we can get the synchronization track. The output of labels is controlled by a stepper motor or servo motor. It can detect the objects and size of labels automatically. It is modern and advanced electronic mechanical integration equipment automatically controlled by microcomputer mode, with large LCD touch panel, display and memory devices containing dozens of memory devices. The operation is simple, the labeling is accurate, the performance is reliable, and there is low noise. Sticker labeling machine is easy to clean, not moldy, beautiful after labeling and of high production efficiency. It is strong and won't fall off on its own.

    1. Basic use
    It be matched to the workshop assembly line, flow through the product, on the plane, side labeling, online labeling, such as matching inkjet machine, flow through the object to achieve labeling, inkjet one-step completion (inkjet printer is not included in the labeling machine)

    2. Scope of application
    Applicable label: self adhesive label, self adhesive film, electronic supervision code, bar code, etc.
    Applicable products: round jars.
    Application Industry: widely used in packaging, food, toys, daily chemical, electronics, medicine and other industries.

    3. Working process
    Core working principle: the sensor detects the product passing, sends back the signal to the labeling control system, at the appropriate position, the control system controls the motor to send out the label and attach it to the product to be labeled position, the product flows through the labeling roller, the label is rolled over, and the labeling action of a label is completed;
    Operation process: product delivery  - > product detection (or receiving external signal) - > top side plane labeling) - > round bottle side labeling.

    Product Application
    Automatic round object top and side places sticker labeling machine is suitable for labeling for labeling on top side and body side. It is widely used in  bottling of daily chemical, agricultural chemical, food, personal care, tobacco company and pharmaceutics industry.
    For examples: Bottle side and its cap top, round plastic jar side and to, glass jar side and top, facial cream jar side and top, honey jar body and cap labeling, sauce jar body and cap, etc Label application machine.



    Technical Parameters
    Labeling capacity
    0-35pcs/min
    Labeling accuracy
    ±0.5mm
    Label material
    Adhesive sticker, opaque or transparent label
    The inner diameter of label roll
    76 mm
    The outer diameter of label roll
    240 mm(max)
    The suitable size of label
    length: 10mm ~ 70mm; width (base paper width): 5mm ~ 70mm;
    The suitable size of labeling objects
    Can be customized
    Operating direction
    Left or Right
    Total Power
    1.8kw
    Power supply
    AC220V/110V, Single phase. Globally customized
    Net weight
    About 300kg
    Machine size
    220(L)×60(W)×140(H)cm

    HYTB1-100TC Automatic Topside Plane and Side Round Bottle Labeling Machine

    Automatic Topside Plane and Side Round Jar Label Applicator

    Automatic Topside Plane and Side Round Bottle Label Applicator

    HYTB1-100TC Automatic Topside Plane and Side Round Bottle Label Application Machine

    Automatic Topside Plane and Side Round Bottles Label Applicator

    HYTB1-100TC Automatic Topside Plane and Side Round Bottles Labeler

    Automatic Topside Plane and Side Round Jar Label Applicator with turntables

    HYTB1-100TC Automatic Plane and Side Labeling Machine

    Inquiry Us





    Related Products

    Automatic Linear Structure Gravity Type Free Flowing Liquid Bottle Filling Machine

    Automatic Linear Structure Gravity Type Free Flowing Liquid Bottle Filling Machine

    HYSC-1A-D Semi-automatic Single-head Cork Stopper Pressing Down Capping Machine

    HYSC-1A-D Semi-automatic Single-head Cork Stopper Pressing Down Capping Machine

    Automatic High-accuracy Tracking Type Single Head Capping Machine

    Automatic High-accuracy Tracking Type Single Head Capping Machine

    HYWB-10W Semi-automatic Bottle Rinsing Washing Machine | Water Or Cleaning Air Washer

    HYWB-10W Semi-automatic Bottle Rinsing Washing Machine | Water Or Cleaning Air Washer

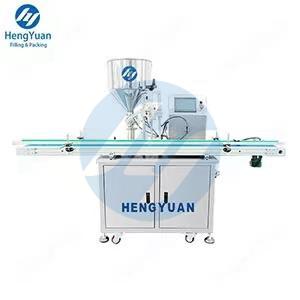

    HYAP1-10T Automatic Pneumatic Piston Driving Single Head Filling Machine with Material Hopper
