  • HY-SPL-01 Lab Used PVA (PVOH) Water-Soluble Film Pod Sample Test Packing Machine
  • HY-SPL-01 Lab Used PVA (PVOH) Water-Soluble Film Pod Sample Test Packing Machine
  • HY-SPL-01 Lab Used PVA (PVOH) Water-Soluble Film Pod Sample Test Packing Machine
  • HY-SPL-01 Lab Used PVA (PVOH) Water-Soluble Film Pod Sample Test Packing Machine
HY-SPL-01 Lab Used PVA (PVOH) Water-Soluble Film Pod Sample Test Packing MachineHY-SPL-01 Lab Used PVA (PVOH) Water-Soluble Film Pod Sample Test Packing MachineHY-SPL-01 Lab Used PVA (PVOH) Water-Soluble Film Pod Sample Test Packing MachineHY-SPL-01 Lab Used PVA (PVOH) Water-Soluble Film Pod Sample Test Packing Machine

HY-SPL-01 Lab Used PVA (PVOH) Water-Soluble Film Pod Sample Test Packing Machine

  • Product Item:HY-SPL-01
  • Production Capacity: 1bag/min
  • Packing type: Four sides sealing
  • Marketing Type: Ordinary Product
  • Packaging Type: Bags, Film, Pouch
  • PVA Film Pod Packing Machine , two colors washing detergent pod sample packer , three chambers pva laundry detergent powder bead sample packing machine
    Inquiry Send Email

    Description

    HY-SPL-01 Lab-scale PVA Film Pod Sample Test Packing Machine


    Product Introduction

    It is a semi-auto lab-scale machine used for making small unit dose water soluble capsules samples of different kinds of non-aqueous chemical preparation (detergent, pesticide, fertilizer…).  It has good adaptability of water soluble PVA film. Machine provide function of vacuum absorb film in the mould, heating sealing film. Operater puts film, fill material ( powder, liquid, granules), fetch pod, cut pod.

    Product Application
    The machine is particularly suitable for packing non-water washing detergent,  missible oil, pesticide oil, chemicals agent and some other non aqueous system contents small dose single packs. It is a preferred packing way of sample pod.
    For examples: Single color laundry detergent pod sample packing machine, two colors washing detergent pod sample packer, three chambers pva laundry detergent powder bead sample packing machine, Fragrance beads pva pod sample test packing machine, etc.

    HY-SPL-01 Lab-scale PVA Film Pod Sample Test Packing Machine

    HY-SPL-01 Lab Used PVA Powder Pod Packing Machine

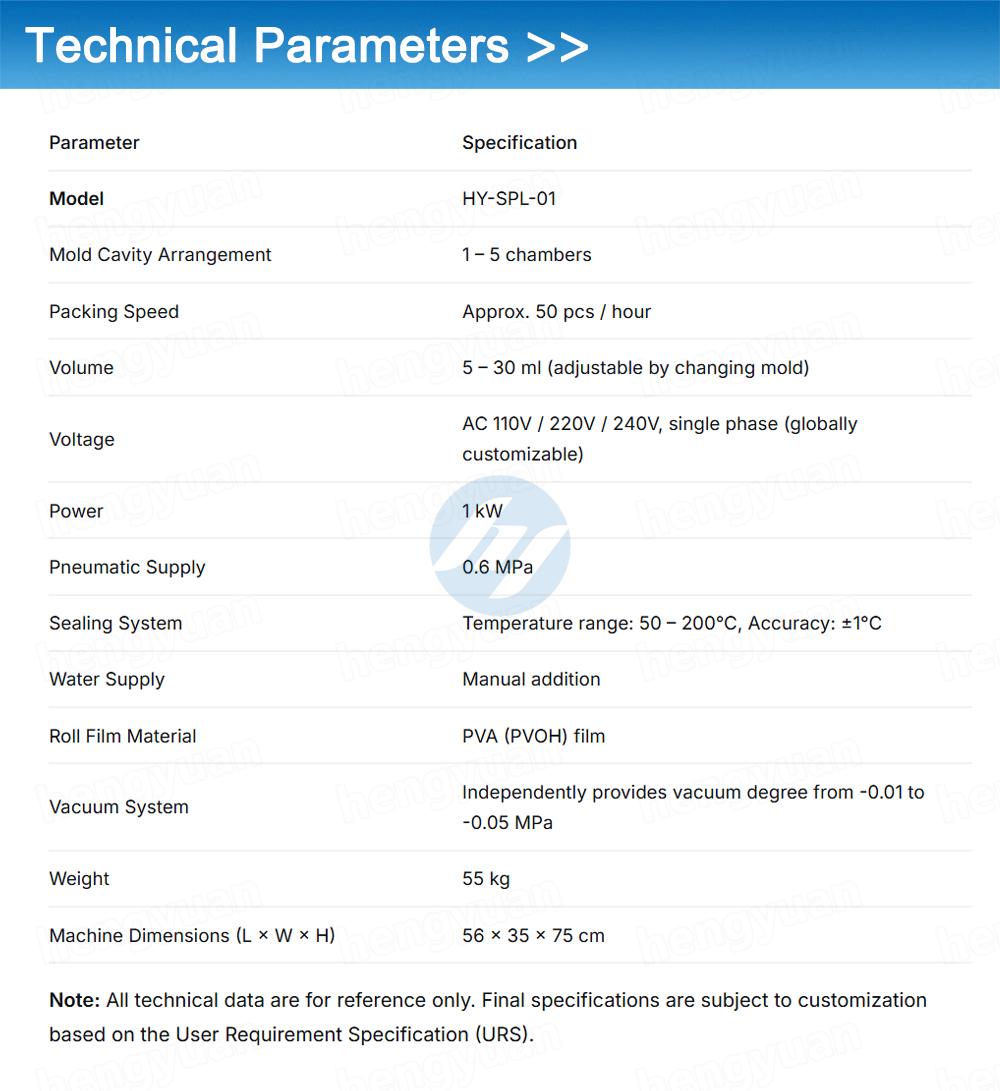

    Technical Parameters
    Mould cavity arrangement
    1-4 chambers
    Packing speed
    approx 50pcs per hour
    Volume
    5-30 ml by changing mould
    Voltage
    AC110V/220V/240V, one phase, Globally customized
    Power
    1kw
    Pneumatic
    0.6 mpa
    Sealing system
    Sealing temperature range50-200℃,Accuracy±1℃
    Water
    Manually adding
    Roll film material
    PVA (PVOH) Film
    Vacuum system
    Can independent provide vacuum degree from -0.01
    to -0.05MPa

    Weight
    50kg
    Machine size
    L60xW42xH60cm

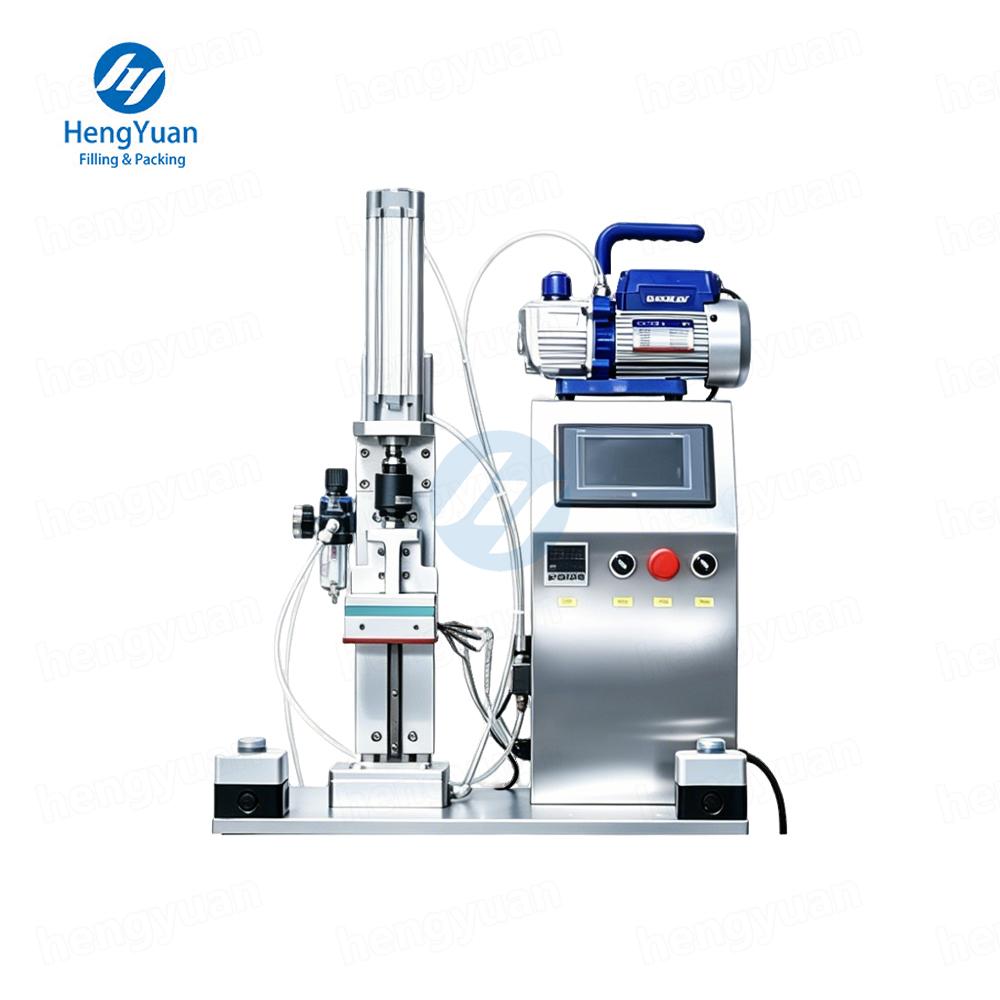

    HY-SPL-01 Lab Used PVA Pod Packing Machine

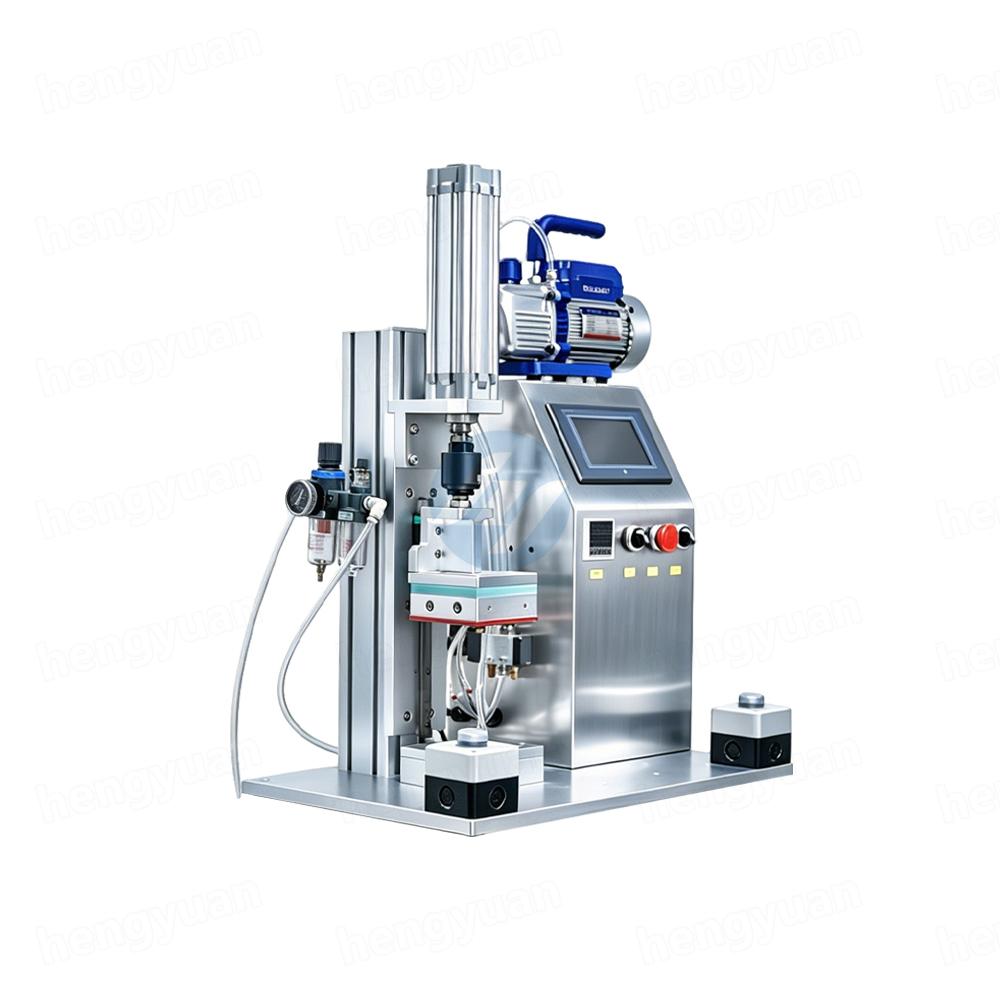

    Lab Used PVA Pod Sample Packing Machine

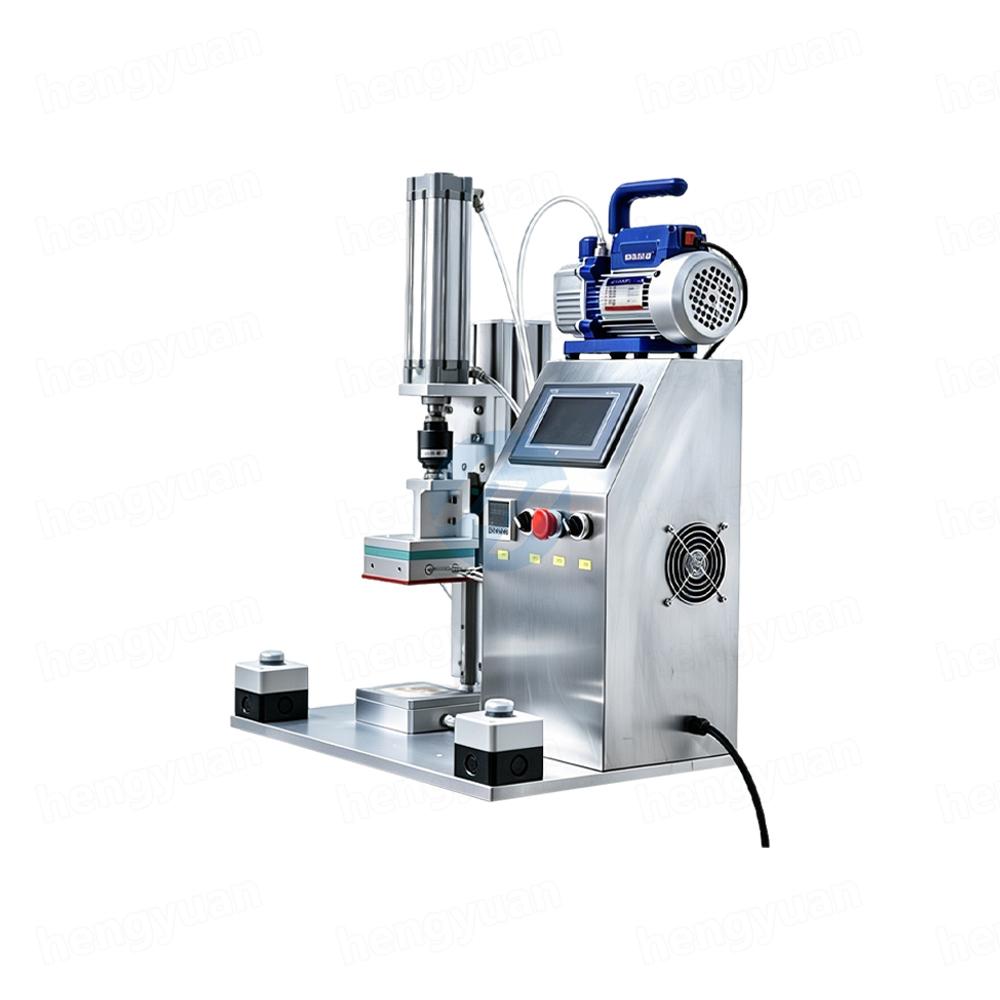

    Lab Used PVOH Pod Packing Machine

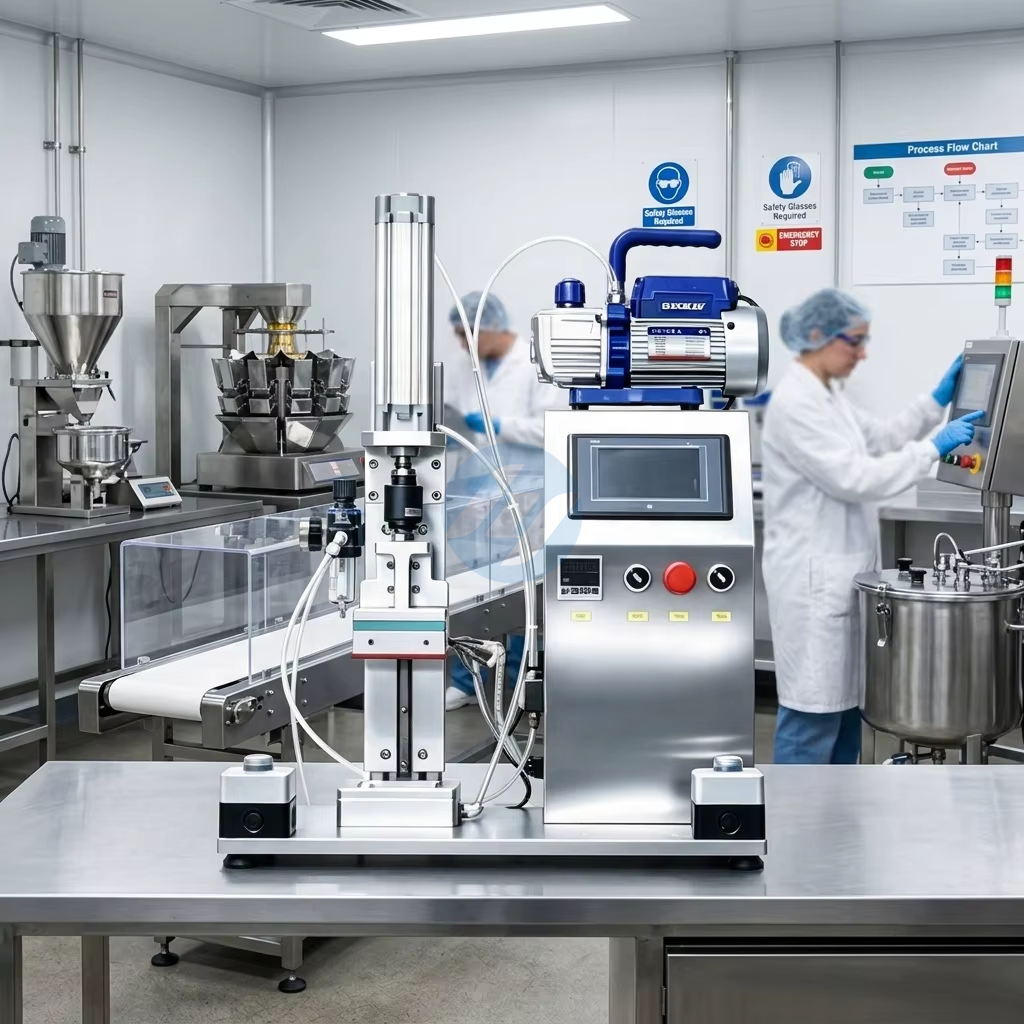

    HY-SPL-01 PVA Pod Packing Testing Machine

    Lab Used PVA Pod Packer

    HY-SPL-01 Lab Used PVA Pod Packing Equipment

    Lab Used Laundry Detergent PVA Pod Packing Machine

    Lab used pva film pod packing machine
