HYFK-200 Automatic Rotary Bottles Trigger and Pump Lid Capping Machine

HYFK-200 Automatic Rotary Bottles Trigger and Pump Lid Capping Machine

Product Item：HYFK-200

Key Selling Points：High-accuracy

Application：Food, Beverage, Commodity, Chemical, Machinery & Hardware

Function：Enclosing bottles with trigger or pump lids

Description

HYFK-200 Automatic Rotary Bottle Trigger and Pump Lid Capping Machine

Product Introduction

The pump or trigger capper is a capping machine for automatic feeding and capping of trigger lids, pump lids. Application of a servo-drive allows full control of the capping process and facilitates fast machine changeover (fast format change for various package types). It is composed of several main parts, including cap feeder + automatic cap elevator and sorter + inlet and outlet bottle template + capping mechanism + rejection mechanism + electrical control etc.

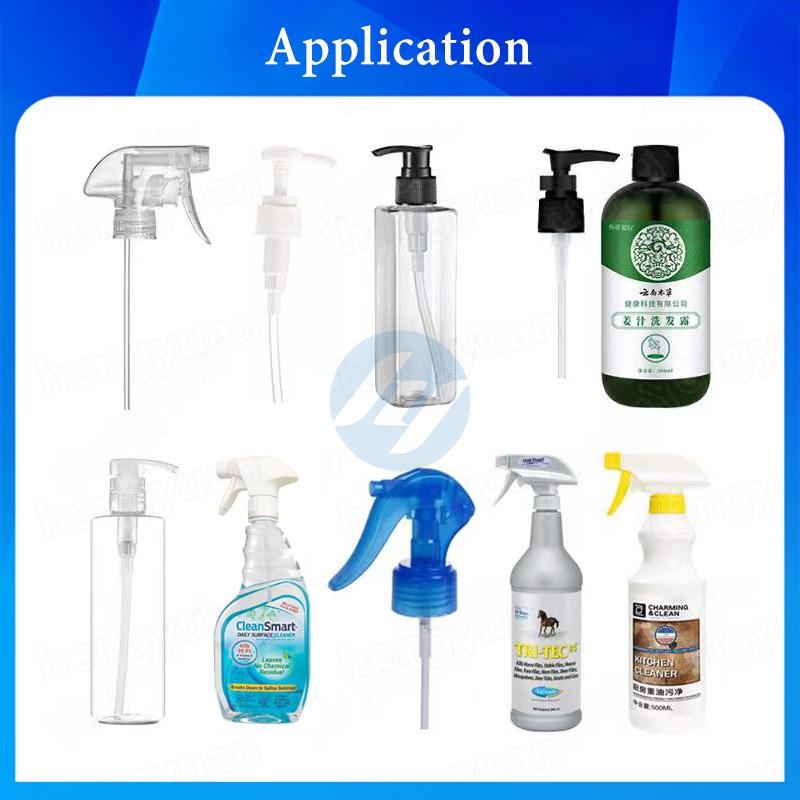

Product Application

HYFK-200 Automatic Rotary Trigger and Pump Lid Bottles Capping Machine

For examples

Kitchen cleaner bottle,Bug cleaner bottles, Degerming agent, Shampoo bottles, Hand sanitizer, Body wash bottles, etc. Automatic Single-head Capping Machine.

Technical Parameters
Capping capacity	3000-7000 bottles/hour
Applicable cap diameter	20-50mm customized according to caps
Suitable bottle diameter	customized according to bottle sample
Suitable for bottle height	customized according to bottle sample
Screw cap torque control method	permanent magnet clutch (servo motor optional)
Total Power	3.5kw
Power supply	AC380V/220V/415V, three phased, globally customized
Machine size	720400320cm
Weight	3500Kg

Main Features

1) PLC controlled, integrated cap feeding, grasping, inserting and rotating ( can affiliate with
automatic cap sorting machine to realize full automatic)
2) Production capacity can achieve 50-120bpm
3) Gentle operation
4) Quick changeovers
5) Module structure, manipulate on the touch screen, easy maintenance
6) Suitable for different sizes of caps, applicable in daily chemical industry
