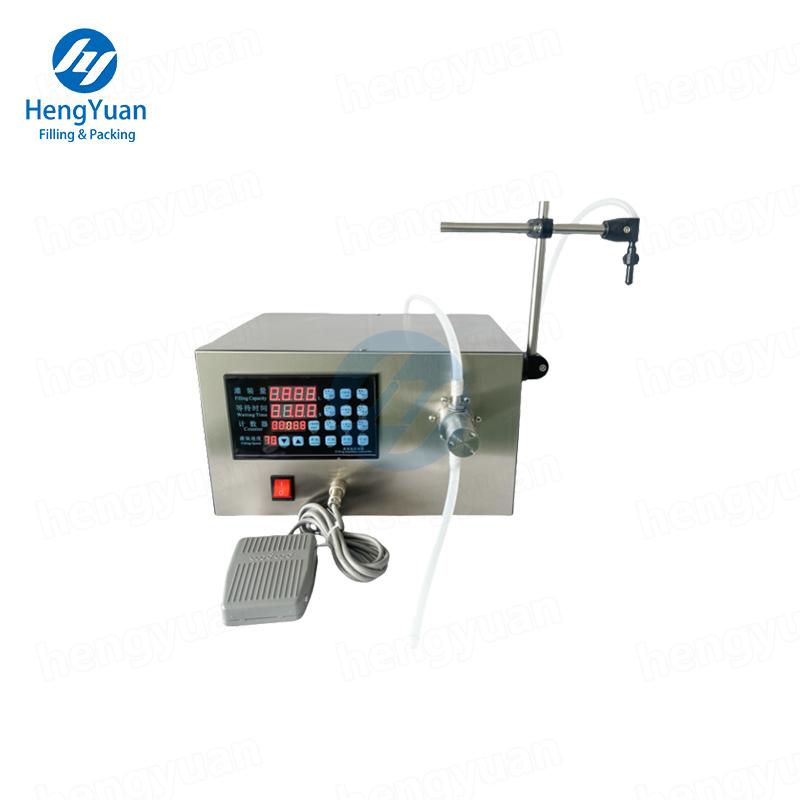

HY-GFK980 Semi-automatic magnetic pump filling machine
Product Introduction
The magnetic pump filling machine has advantage of high accuracy when filling liquid. It is matched with magnetic pump and digital panel to control filling. It has foot panel to start filling. Filling time and filling interval is setted on digital panel. It is widely used in food, cosmetics, daily chemical, farm chemical industries.Product Application
Liquid filling machine, semi-automatic liquid filler, desktop liquid dispenser, Edible Oil Filling Machine, Small Olive Oil Filling Machine, Soy Sauce Filling Machine, Sour Vinegar Filling Equipment, Oil Filling Machine, Fuel Filling Machine, Wine Filling Machine, Cleaning Liquid Filling Machine, Moisturizing Water Filling Machine, Essential Oil Filling Equipment, Pesticide Filling Machine, Beverage Filling Machine, and so on.
|
Technical Parameters |
|
|
Filling range |
1ml-6000ml (customized) |
|
Filling nozzle outer diameter |
Customized according to bottle mouth |
|
Filling accuracy |
≤±0.5% |
|
Filling speed |
6000ml/Minute ( Others can be customized) |
|
Control method |
Pedal or automatic intermittent |
|
Working air pressure |
None |
|
Operation voltage |
220V or 110V, Single phase. |
|
Electricity consumption |
90w |
|

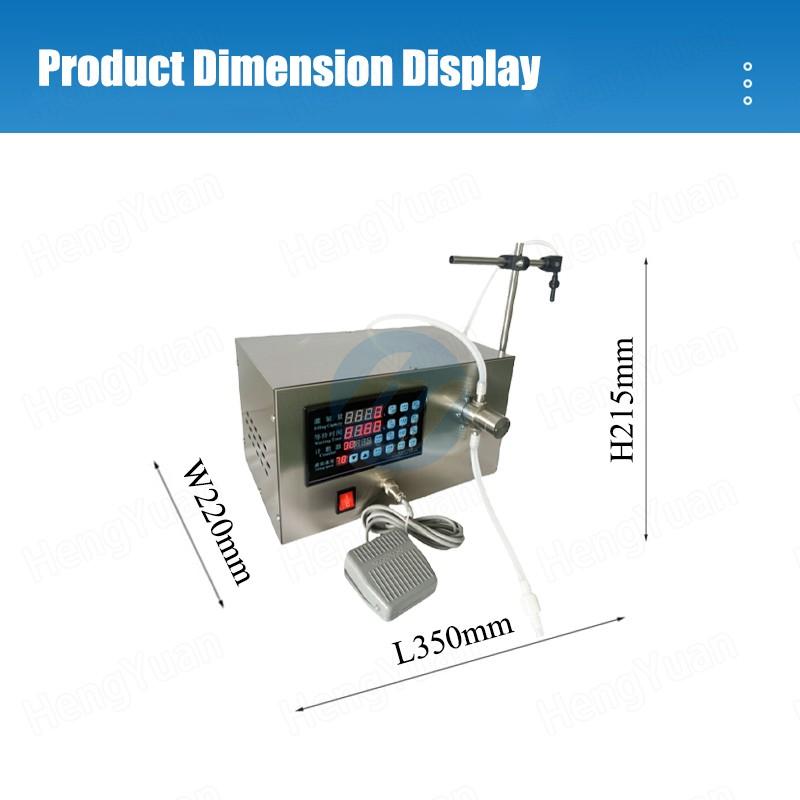

Machine size |
35*22*21.5cm |
|
Weight |
5.5Kg |
1) Large filling range: 1-6000ml customized
2) Fast filling speed: magnetic pump filling, quick response, single second filling 100ml.
3) Wide range of application: any free flowing liquid.
4) Stong suction function, can suck liquid from tank.
5) Easy to wash: pour clean water into the equipment and wash it with high-speed circulating water, which is convenient and sanitary.
Click here to view HY-GFK980 Semi-automatic magnetic pump filling machine running video on YouTube
