HYGP-100L + HYXG-1A-C Automatic Servo Gear Pump
Liquid Filling and Bottle Capping Machine Line
Product Introduction
Linear Servo Gear Pump filling and bottle capping machine line is for different viscous liquid and cream with different bottle or jars. The performance of the product reaches the international leading level. PLC control, servo gear pump dosing, equipped with brand touch screen, smooth operation, no leakage phenomenon, No bottle no filling, automatically control feeding the liquid into machine tank, liquid level is controlled at the same height.The parameters are adjustable, simple and convenient, and the filling dose can be accurately calibrated, controlled within 0.5% of the filling dose. The machine is made of high quality 304 stainless steel, beautiful appearance, will not pollute the material, is the best choice of both high viscosity and normal liquid filling.
Bottling Filling Machine is realized by the man-machine dialogue interface under the operation and control of high-speed PLC. It realizes the linear step-less speed regulation transmission through the human-machine dialogue interface, and can adjust the filling capacity arbitrarily.
The filling machine assembly line integrates machine, electricity and gas into one, with unique design, complete functions, stable performance, high quality and beautiful appearance. Applied to GMP standard. Matched with Capping machine to realize filling and capping package.
Easily dismantle, clean and maintain. The whole machine is safe, environmental, sanitary, adapting to various kinds of working place.
Gear pump liquid filling and bottle capping machine lineis widely used for bottling of edible oil, beverage, daily chemical, agricultural chemical, food and pharmaceutics industry.
Product application
10ml-30L customized servo gear pump dosing filling machine and bottle capping machine line.
For examples: Edible oil filling capping machine, Dialysis filling and capping machine, Pesticide bottle filling capping machine, ketchup bottling capping machine, Milk filling capping machine, Soybean sauce filling capping machine line, paste jar filling and capping machine, liquid filling bottle filling and capping machine etc. Any liquid, half-flowing liquid, viscous cream, liquid filler, refill equipment, Vaseline filling machine, paraffin wax filler, hand sanitizer filler, facial cream filler, etc.

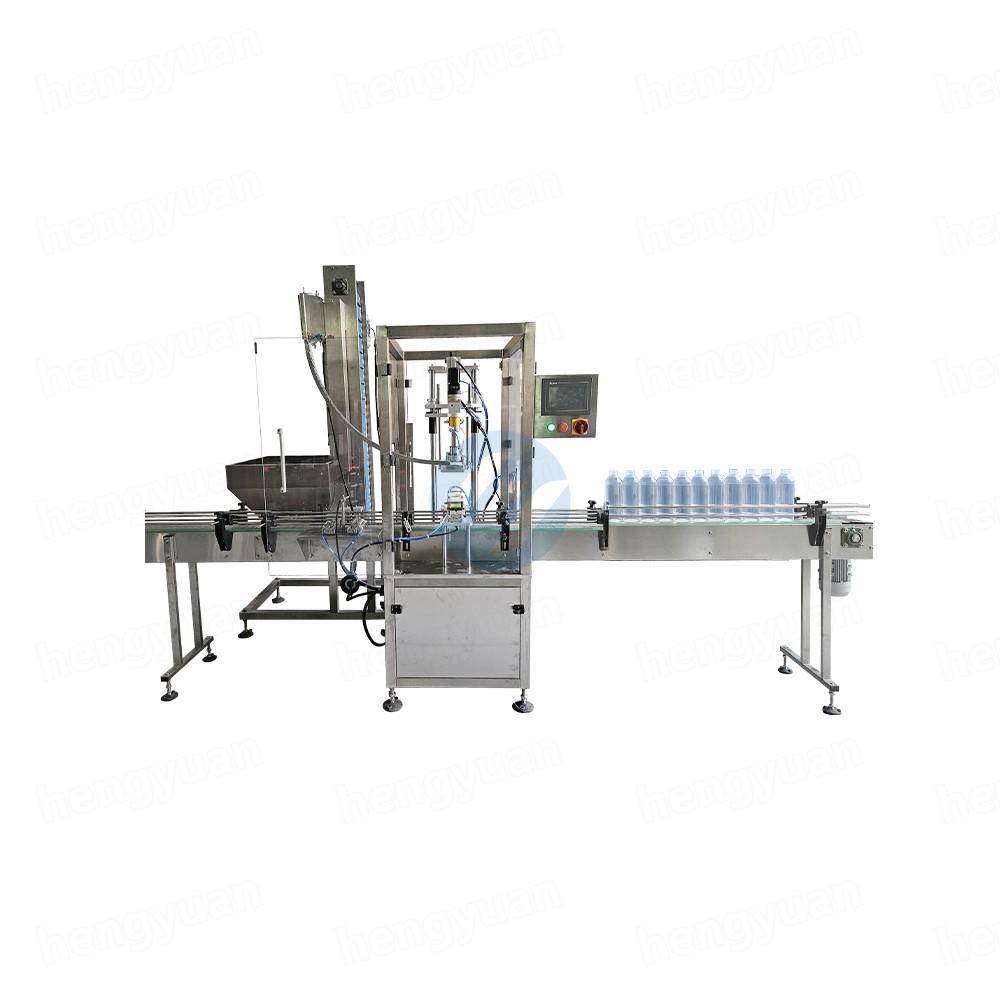

HYGP-100L + HYXG-1A-C Automatic Servo Gear Pump Liquid Filling and Bottle Capping Machine Line
Explanation
The above samples are for reference only. Please provide your specific products and packaging materials for precise equipment matching.
Main Features
Technical Parameters
Model
HYGP-100L-4 + HYXG-1A-C

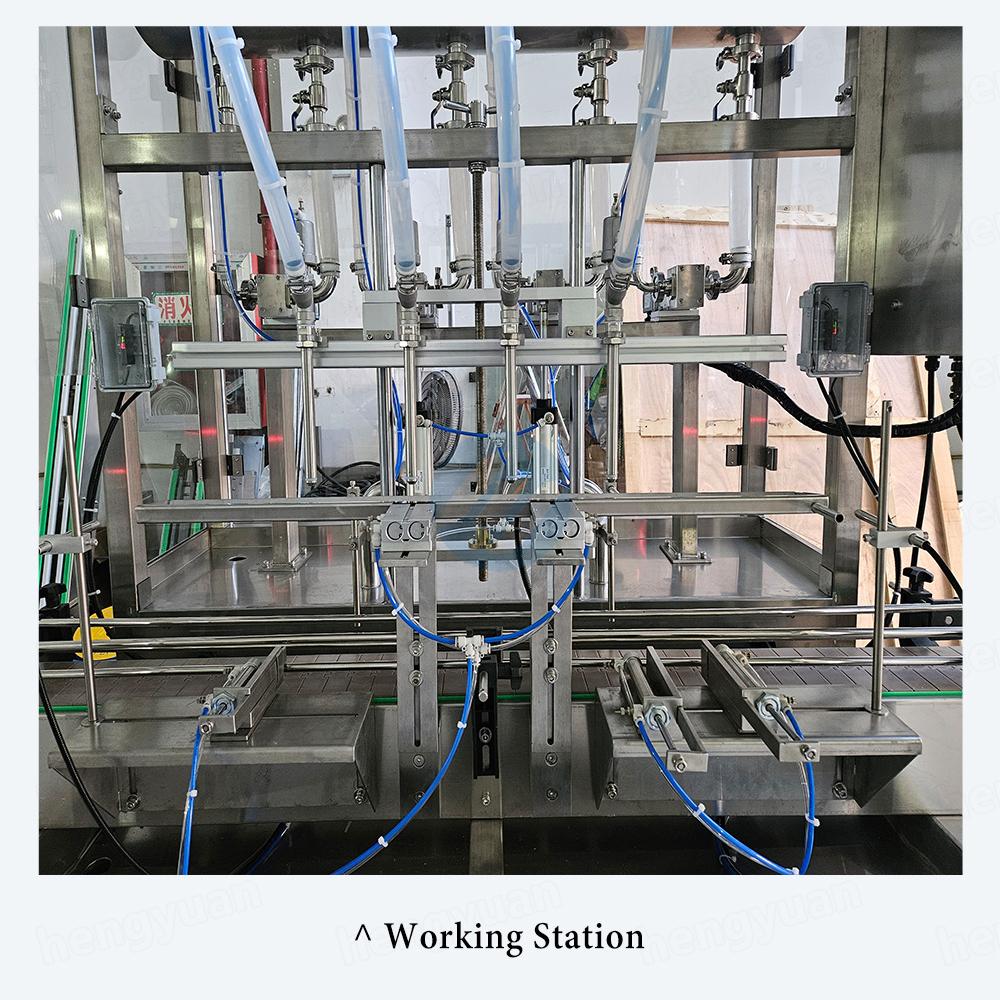

Filling Heads
4 filling heads (1pc~20pcs customized) + 1 capping head (other capping type available)
Capacity(BPH)
4Nozzles, 500ml: Approx 1000
Volume
10ml-30L customized
Accuracy
≤±0.5%
Suitable Bottles
Height: 100-280mm, Diameter: Φ30-110mm, (can be customized)
Control method
Touch screen and PLC
Air supply
0.5-0.7Mpa
Volume of hopper
100L (optional)
Hopper function
Stirring and Insulation (Optional)
Power supply
5Kw
Voltage
110V/220V, 380V/415V/440V , 50/60Hz, customized globally
1) Simple structure in linear type, easy in installation and maintenance.
2) Adopting advanced world famous brand components in pneumatic parts, electric parts and operation parts.
3) This filling and capping machine is a high-tech filling equipment controlled by microcomputer PLC programmable, equip with photo electricity transduction and pneumatic action.
4) Accurate measurement: adopt servo control system with gear pump.
5) There is anti-leakage nozzle, prevent the liquid drop on conveyor cause pollution.
6) Convenient adjustment: replacement filling specifications only by setting on touch screen.
7) Suitable material: liquid, cream, gel, Oil, sauce, daily chemicals, and something that free-flowing and very viscous without granules.
8) Filling heads number can be customized and capping methods will be matched according to bottle, cap and hourly capacity requirement.
