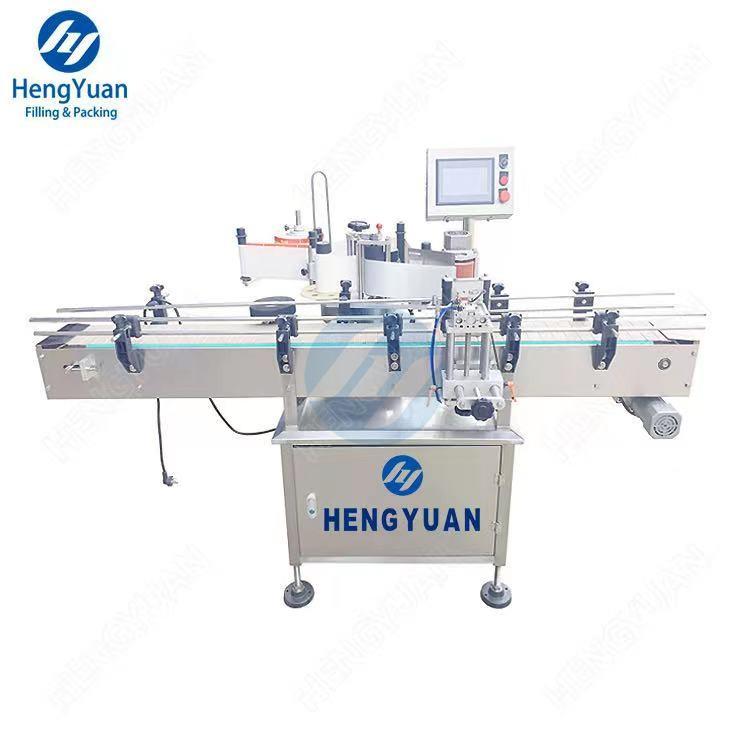

Automatic Positioning Round Bottle Labeling Machine

Automatic Positioning Round Bottle Labeling Machine

Product Item：HYCL-150S

Automatic Grade: Automatic

Label length: 15-300 mm

Label width: 15-150 mm

Machine Bottle type: Round Bottles, Jars, Cans, Containers

Description

Automatic Clamping Round Bottles Non-dry Adhesive

Sticker Labeling Machine

Product Introduction

Automatic clamping round bottle sticker labeling machine is one of the round bottle labeling machines, be specially used to label, can be for one piece or double pieces, front and back label can be a flexible adjustment. It has a function to label for a tapered bottle. Select setting up position fixed mechanism, can be true for labeling at a fixed place to avoid the place do not want to be covered by the label. Can work separately or work connect with an assembly line or filling line.
With inspection of sensor, tracking label synchronously, ensure to labeling speed and smoothly. Host design labeling machines using imported and domestic advanced technology to improve and make a solution for instability of general domestic labeling. By optical fiber computer control, we can get the synchronization track. The output of labels is controlled by a stepper motor or servo motor. It can detect the objects and size of labels automatically. It is modern and advanced electronic mechanical integration equipment automatically controlled by microcomputer mode, with large LCD touch panel, display and memory devices containing dozens of memory devices. The operation is simple, the labeling is accurate, the performance is reliable, and there is low noise. Sticker labeling machine is easy to clean, not moldy, beautiful after labeling and of high production efficiency. It is strong and won't fall off on its own.

Product Application

Automatic clamping round object sticker labeling application machine is suitable for labeling for labeling on round bottles with one, two, three, etc labels. It is widely used in bottling of daily chemical, agricultural chemical, food, personal care and pharmaceutics industry. For examples: round bottles, round objects, round jars, round pesticide bottles, round beverage drinking bottles, round vials, round shampoo bottles, hand wash bottles, etc Label application machine.

Automatic Round Bottle Labeling Machine

Technical Parameters
Labeling capacity	0-35pcs/min
Labeling accuracy	±1.0 mm
Label material	Adhesive sticker, opaque or transparent label
The inner diameter of label roll	76 mm
The outer diameter of label roll	350 mm(max)
The suitable size of label	Width 15-300 mm length 15-300 mm
The suitable size of labeling objects	Can be customized
Operating direction	Left or Right
Total Power	1.2kw
Power supply	AC220V/110V, Single phase. Globally customized
Net weight	About 250kg
Machine size	200(L)×70(W)×130(H)cm
