Description

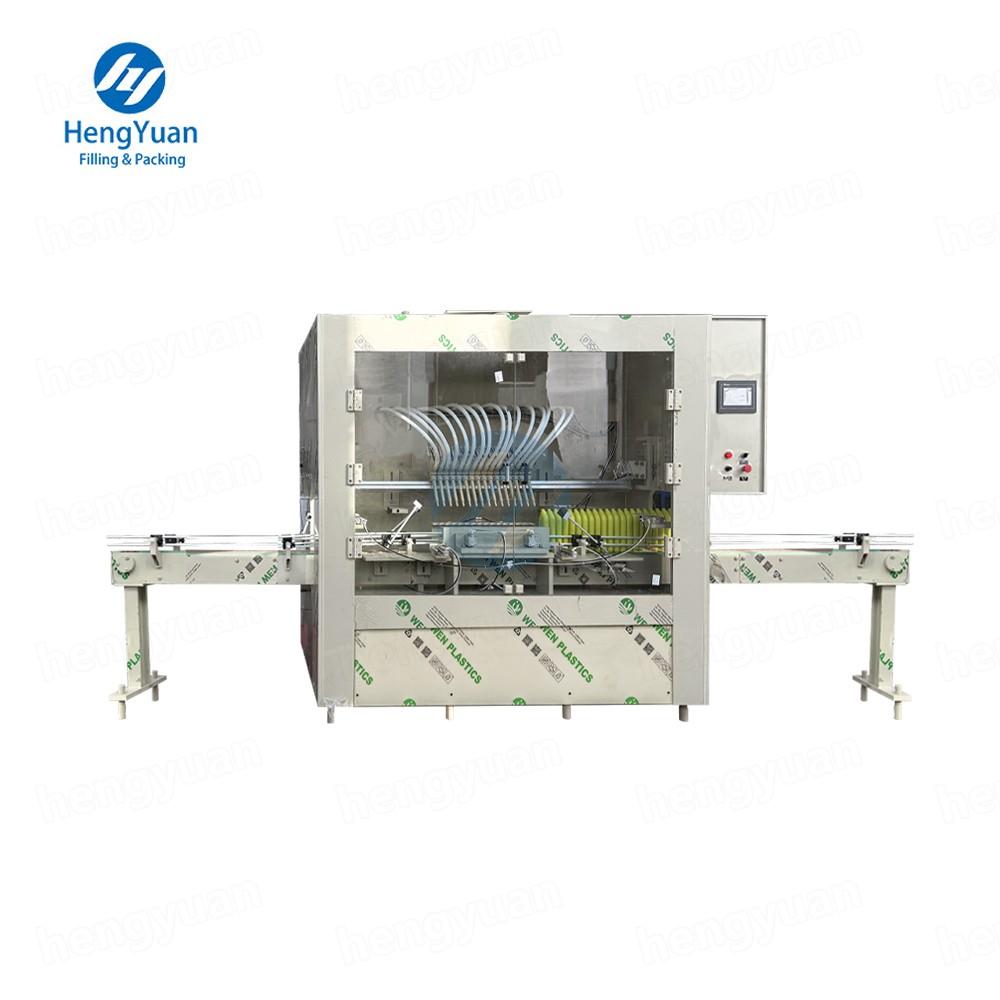

HYGP-100LA-X-16 Automatic Tilt Bottle Gear Pump Filling Machine
Product Introduction
Linear Anti-corrosive Gear Rotor Pump dosing filling machine is for different viscous liquid and cream with different bottle or jars. The performance of the product reaches the international leading level. PLC control, servo gear pump dosing, equipped with brand touch screen, smooth operation, no leakage phenomenon, No bottle no filling, automatically control feeding the liquid into machine tank, liquid level is controlled at the same height.The parameters are adjustable, simple and convenient, and the filling dose can be accurately calibrated, controlled within 0.5% of the filling dose. The machine is made of anti-corrosive PP, beautiful appearance, will not pollute the material, is the best choice of both high viscosity and normal liquid filling.
Bottling Filling Machine is realized by the man-machine dialogue interface under the operation and control of high-speed PLC. It realizes the linear step-less speed regulation transmission through the human-machine dialogue interface, and can adjust the filling capacity arbitrarily.

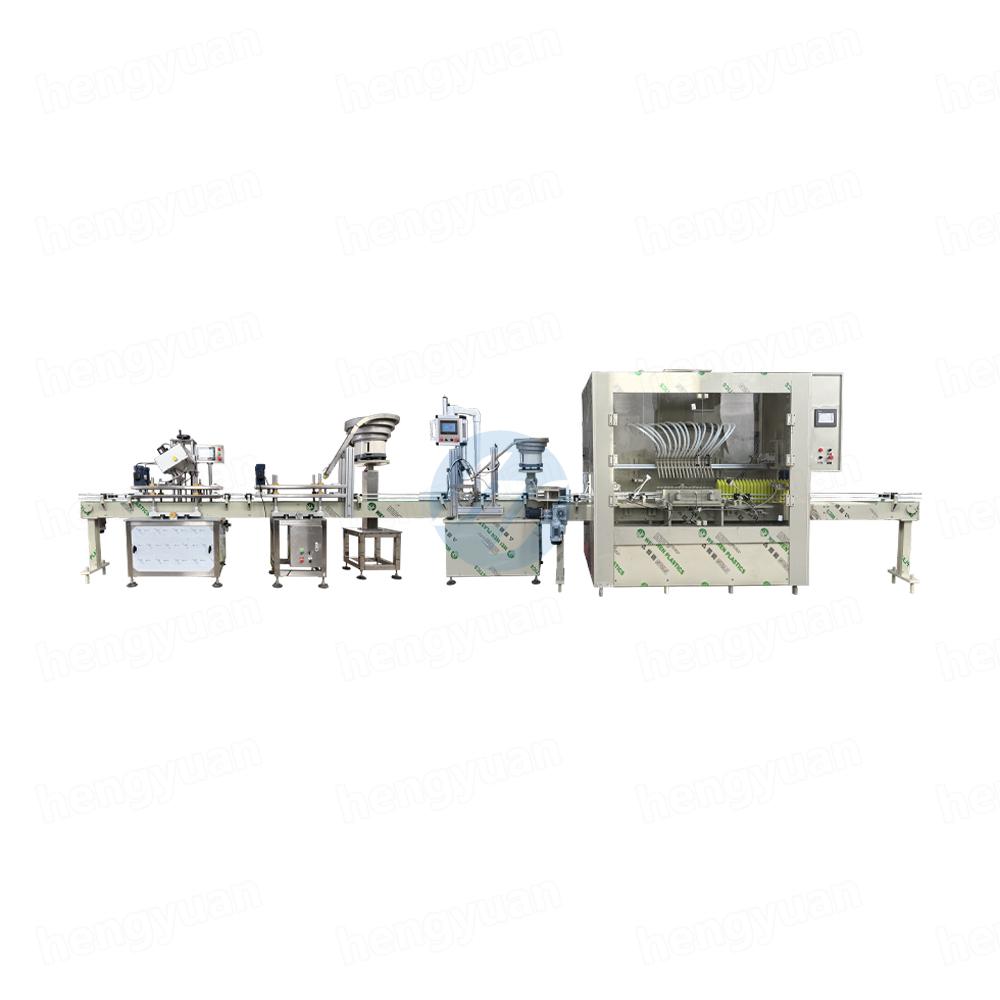

The filling machine assembly line integrates machine, electricity and gas into one, with unique design, complete functions, stable performance, high quality and beautiful appearance.
Easily dismantle, clean and maintain. The whole machine is safe, environmental, sanitary, adapting to various kinds of working place.
Product Application
Toilet cleaner filling machine, Liquid cleaner filling machine, Tilt Bottle Liquid Filling Machine, Automatic bottle filling machine for cleaning products, Bleach filling machine, Chemical liquid filling machine, Viscous liquid filling equipment, Servo gear pump filler for detergent, Harsh chemical packaging machine, 1L toilet cleaner filling line, 500ml toilet bowl cleaner filling machine, Acidic liquid filling system
Main Features
Technical Parameters
Filling range
100ml-1500ml (customized)
Filling heads
16pcs ( others 4,6,8,10,12,,20,24pcs )
Filling nozzle outer diameter
Customized according to bottle mouth
Filling accuracy
≤±0.5%
Filling speed
30L/Minute ( Others can be customized)
Control method
Automatic
Hopper Function
Automatic replenishment
Volume of Hopper
≈100L
Working air pressure
0.4-0.8Mpa
Operation voltage
380V/50Hz/3P, customized globally
Electricity consumption
12.5Kw ( 12 heads )
Machine size
200*145*220cm
Weight
700Kg
1) Simple structure in linear type, easy in installation and maintenance.
2) Adopting advanced world famous brand components in pneumatic parts, electric parts and operation parts.
3) This filling machine is a high-tech filling equipment controlled by microcomputer PLC programmable, equip with photo electricity transduction and pneumatic action.
4) Accurate measurement: adopt servo control system with plastic PEEK gear pump.
5) There is anti-leakage nozzle, prevent the liquid drop on conveyor cause pollution.
6) Convenient adjustment: replacement filling specifications only by setting on touch screen.
7) Wide range of application: unique pump head structure, can transport high viscosity pure materials. (As long as the flow can be filled).
8) Easy to wash: pour clean detergent and water into the equipment and wash it with high-speed circulating water, which is convenient and sanitary.
