Description

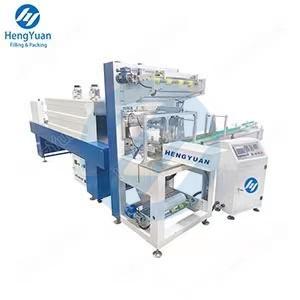

HYSW-200W Automatic Linear Cuff Type
PE Film Wrapping Shrinkage Packing Machine
Product Introduction
The cuff-type shrink wrapping machine is a state-of-the-art packaging solution designed and engineered for efficiency and continuous operation, leveraging the unique properties of heat-shrinkable film. This machine expertly arranges individual PET beverage bottles or similar items into groups, automatically assembles them, and then envelops them in shrink film. Through the processes of heating, contraction, cooling, and shaping, it creates a cohesive, tightly bundled package with a regular, aesthetic appearance that is also user-friendly to open. As such, this versatile equipment finds extensive application in industries such as food, pharmaceuticals, chemicals, and various light industrial product sectors.
Product Application
Cuff type PE Film Wrapping Shrinkage Packing Machine, Water bottles film shrinkage packaging machine, juice bottles carbonated drinking bottles, tea drinking bottles packaging equipment, coffee drinking bottles PE film packer, energetic drinks bottles shrinkage packer, soda bottles PE film shrinkage packing equipment, lubricant oil bottles PE film packaging machine, etc.
HYSW-200W Automatic Linear Cuff Type PE Film Wrapping Shrinkage Packing Machine
Main Features
Technical Parameters
Feeding Horizontal Dimension
900±50mm
Wrapping Film
PE
Film roll width
≤580mm
Film thickness
0.06-0.12mm
Diameter of film roll
≤400mm
Suitable for
PET Bottles, Plastic bottles, Glass bottles, Cans, etc.
Wrapper Outer Diameter
≤300mm
Max Packing Size
L480*W300*H350mm
Sealing and cutting temperature
180℃-220℃
Shrinking temperature
200℃-220℃
Electric
AC 3Phases
Power
29KW
Air Pressure
0.5-0.7Mpa
Air consumption
100NL/min
Working noise
≤65DB
Capacity
12-15bags/min
Shrinking Speed
0-10m/min
Shrikage Chamber
240x100x50cm
Overall Dimension
L9600*W140*H210 Cm
Weight
2500Kg
Material
Carbon steel
1. Automatic control of shrinking and sealing temperatures, adjustable according to specific needs.
2. Constant temperature sealing blade coated with Teflon, ensuring smooth and secure cuts.
3. Controlled by a Programmable Logic Controller (PLC).
4. Touchscreen operation with a user-friendly interface for seamless human-machine interaction and control.
5. Capable of bottomless packaging, suitable for varying bottle diameters and combinations.
6. Easy to operate and maintain.
