  • Automatic Upper Weighing Type Free Flowing Liquid Filling Machine
  • Automatic Upper Weighing Type Free Flowing Liquid Filling Machine
  • Automatic Upper Weighing Type Free Flowing Liquid Filling Machine
  • Automatic Upper Weighing Type Free Flowing Liquid Filling Machine
Automatic Upper Weighing Type Free Flowing Liquid Filling MachineAutomatic Upper Weighing Type Free Flowing Liquid Filling MachineAutomatic Upper Weighing Type Free Flowing Liquid Filling MachineAutomatic Upper Weighing Type Free Flowing Liquid Filling Machine

Automatic Upper Weighing Type Free Flowing Liquid Filling Machine

  • Product Item:HYWF-5
  • Automatic Grade: Automatic
  • Filling volume: 0.5-5 Liters
  • Filling speed: 400-1500BPH
  • Key Selling Points: High-accuracy
  • Automatic Liquid Filling Machine , Upper Weighing liquid filling machine , Free Flowing liquid filling machine , Chemical filler , Medical Alcohol filler , Motor oil filler , Vegetable oil filler
    Inquiry Send Email

    Description


    Automatic Upper Weighing Type
     Free Flowing

    Liquid Filling Machine


    Product Introduction

    Automatic Upper Position Weighing type liquid filling machine is suitable for filling liquid from 1 kg to 5 kg, fully automatic complete bottle inlet, weight filling, bottle outlet and some other process, aims at oil realm such as SL, lubricating oil, edible oil etc and other realms like agrochemicals. This machine is making up of the scale, conveyor in and out structure, automatic filling, material tank, weight control meter and PLC control unit. This machine has PLC, touch screen control panel, convenient to adjust. It is suitable for various kinds of products Easily dismantle, clean and maintain. The whole machine is safe, environmental, sanitary, adapting to various kinds of working place.


    Product Application

    Weighing type liquid filling machine is mainly used for bottling of lube, daily chemical, agricultural chemical, food and pharmaceutics industry.

    For examples: Motor oil, Lubricant, Anti-freeze coolant,  Vegetableoil, Cooking oil, Medical Alcohol, etc. 0.5 to 5 Liters Liquid weighing filling machine. oil, Cooking oil, Medical Alcohol, etc. 0.5 to 5 Liters Liquid weighing filling machine.


    automatic 5 liter weighing filler



    Technical Parameters
    Filling range
    0.5-5liter(kg)
    Filling nozzles number
    2,4,6,8pcs customized
    Filling nozzle outer diameter
    Customized according to bottle mouth
    Filling accuracy
    ±0.2%
    Filling speed
    0~20 bottles/minute according to bottle filling volume
    Control method
    Touch screen and PLC
    Working air pressure
    0.5-0.7Mpa
    Operation voltage
    380V or 220V, Three Phases
    Electricity consumption
    2Kw



    Machine Display

    automatic liquid weighing filling machine




    automatic lubricant weighing filler

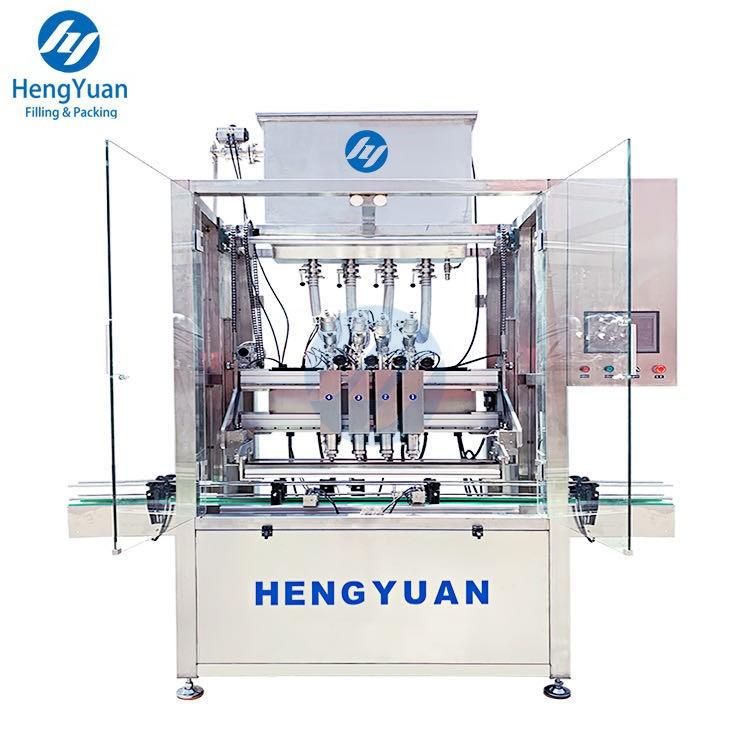

    Automatic upper weighing filling machine


    automatic lubricant filling capping line


    Automatic upper weighing filler packaging logistics
