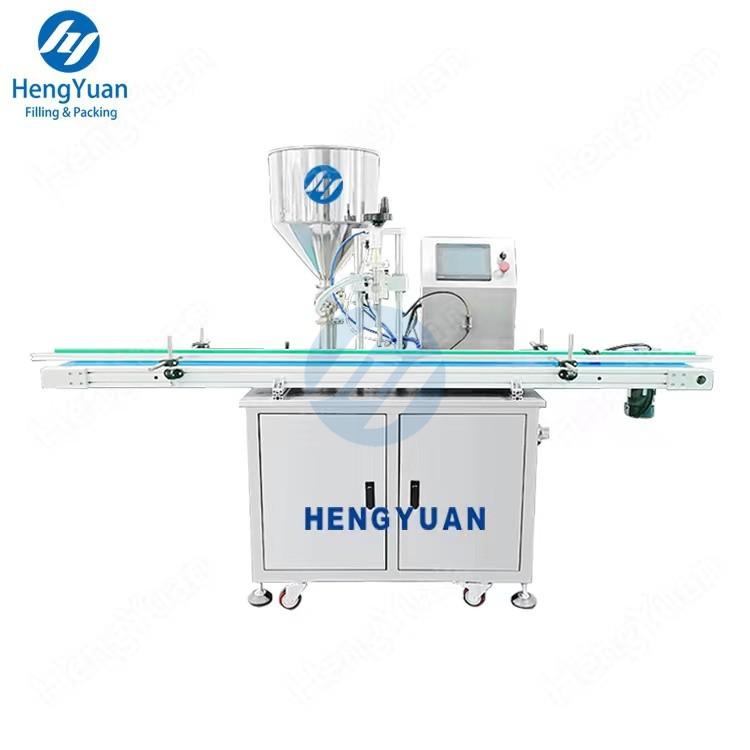

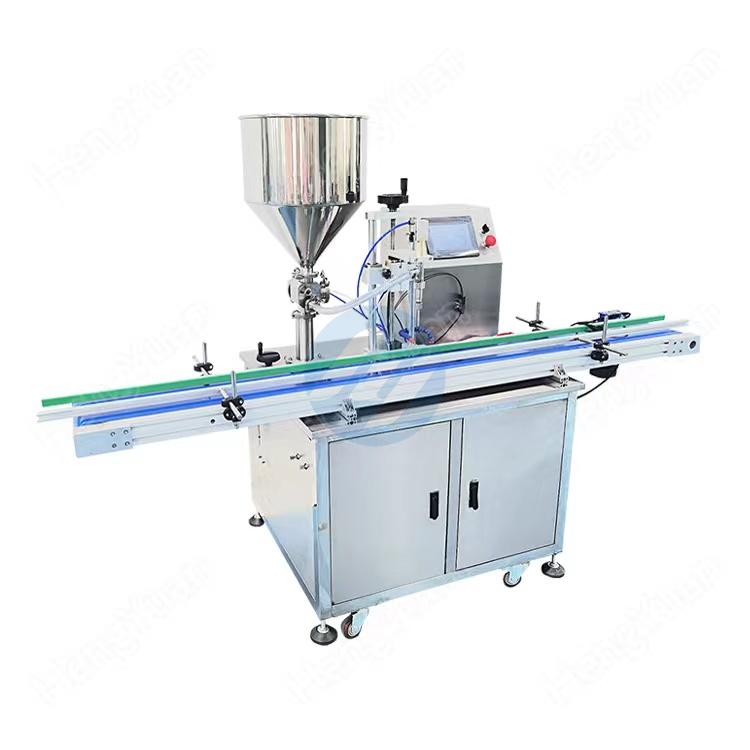

  • HYAP1-10T Automatic Pneumatic Piston Driving Single Head Filling Machine with Material Hopper
  • HYAP1-10T Automatic Pneumatic Piston Driving Single Head Filling Machine with Material Hopper
  • HYAP1-10T Automatic Pneumatic Piston Driving Single Head Filling Machine with Material Hopper
  • HYAP1-10T Automatic Pneumatic Piston Driving Single Head Filling Machine with Material Hopper
HYAP1-10T Automatic Pneumatic Piston Driving Single Head Filling Machine with Material HopperHYAP1-10T Automatic Pneumatic Piston Driving Single Head Filling Machine with Material HopperHYAP1-10T Automatic Pneumatic Piston Driving Single Head Filling Machine with Material HopperHYAP1-10T Automatic Pneumatic Piston Driving Single Head Filling Machine with Material Hopper

HYAP1-10T Automatic Pneumatic Piston Driving Single Head Filling Machine with Material Hopper

  • Product Item:HYAP1-10T
  • Machinery Capacity: 1000-2000BPH
  • Control: PLC+ Touch Screen
  • Material: US304/316 Stainess Steel
  • Marketing Type: Ordinary Product
  • half-flowing liquid filling machine , ketchup sauce dispenser , liquid filler , refill equipment
    Inquiry Send Email

    Description

    HYAP1-10T Automatic Single Head Pneumatic
    Piston Filling Machine With Hopper
    Product Introduction
    Linear pneumatic driving piston cylinder filling machine is for different liquid, half-flowing cream and gel with different bottle or jars. The performance of the product reaches the international leading level. PLC control, pneumatic driving, equipped with brand touch screen, smooth operation, no leakage phenomenon, No bottle no filling, automatically control feeding the liquid into machine tank, liquid level is controlled at the same height.
    The parameters are adjustable, simple and convenient, and the filling dose can be accurately calibrated, controlled within 0.5% of the filling dose. The machine is made of high quality stainless steel, beautiful appearance, will not pollute the material, is the best choice of both high viscosity and normal liquid filling.
    Bottling Filling Machine is realized by the man-machine dialogue interface under the operation and control of high-speed PLC. It realizes the linear stepless speed regulation transmission through the human-machine dialogue interface, and can adjust the filling capacity arbitrarily. It can be equipped with a pneumatic gland or a capping device to form a multi-station one-machine multi-functional production line.
    The filling machine assembly line integrates machine, electricity and gas into one, with unique design, complete functions, stable performance, high quality and beautiful appearance. Applied to GMP standard.
    Easily dismantle, clean and maintain. The whole machine is safe, environmental, sanitary, adapting to various kinds of working place.
    Piston liquid filling machine is widely used for bottling of beverage, daily chemical, agricultural chemical, food and pharmaceutics industry.

    Product application
    10-1000ml customized single-head viscous liquid filling machine.
    For examples:
    Automatic liquid filling machine, half-flowing liquid filling machine, ketchup sauce dispenser, liquid filler, refill equipment, edible oil filler, hand sanitizer gel filler, shampoo filling machine, bodywasher filling machine, facial cream filler, facial gel filling machine, etc.

    HYAP1-10T Automatic Single Head Pneumatic Piston Filling Machine

    Automatic Single-head Pneumatic Piston Filling Machine

    Technical Parameters
    Model
    HYAP1-10T
    Heads
    1pc
    Capacity(BPH)
    200ml: Approx 1200
    Volume
    5-1000ml customized
    Accuracy
    ≤±0.5%
    Suitable Bottles
    Height: 100-280mm, Diameter: Φ30-110mm, (can be customized)
    Control method
    Touch screen and PLC
    Air supply
    0.5-0.7Mpa
    Volume of hopper
    40L
    Power supply
    1Kw
    Voltage
    110v/220v, 50/60Hz, customized globally
    HYAP1-10T Automatic Single Head Pneumatic Piston Filler

    Automatic Single Head Pneumatic Piston Dispenser

    Automatic Single Head Pneumatic Piston Refilling Machine

    HYAP1-10T Automatic Single Head Pneumatic Piston Dispensing Machine

    Automatic One Head Pneumatic Piston Filling Machine

    HYAP1-10T Automatic Single Head Pneumatic Piston Driving Filling Machine

    HYAP1-10T Automatic Single Head Pneumatic Piston Filling Machine
