Description

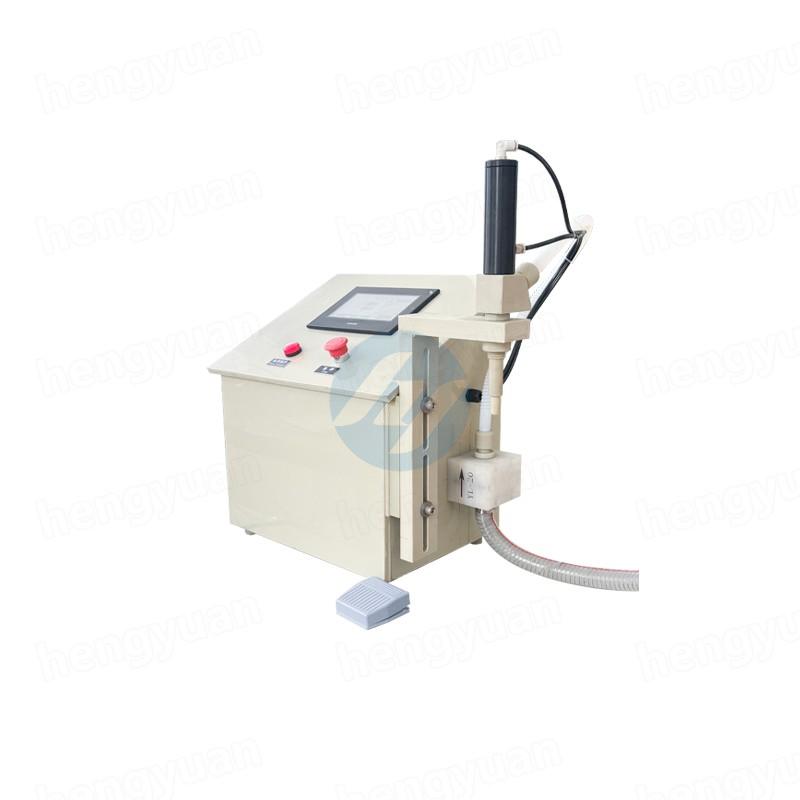

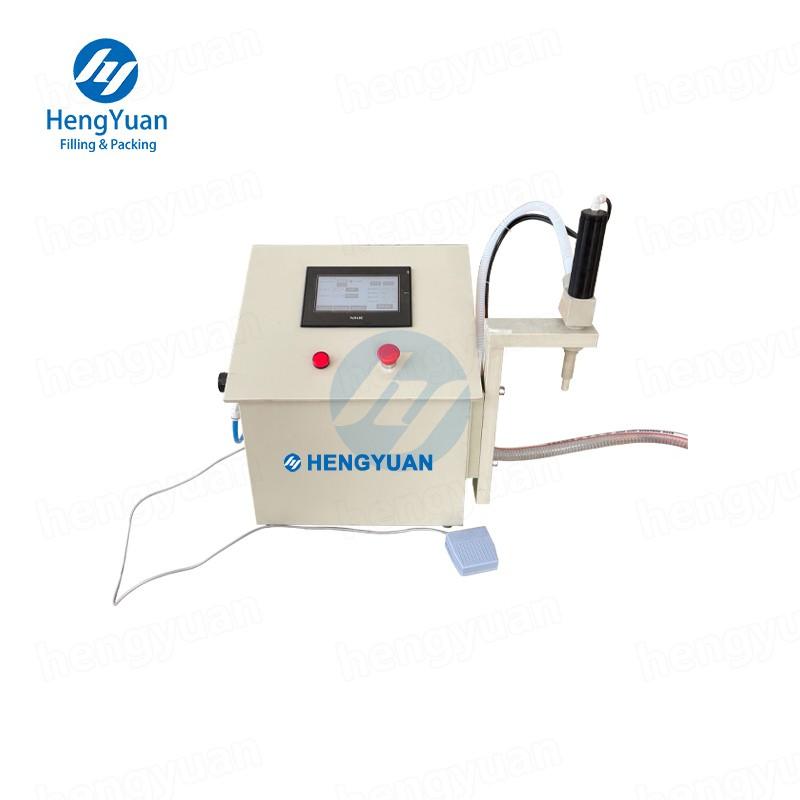

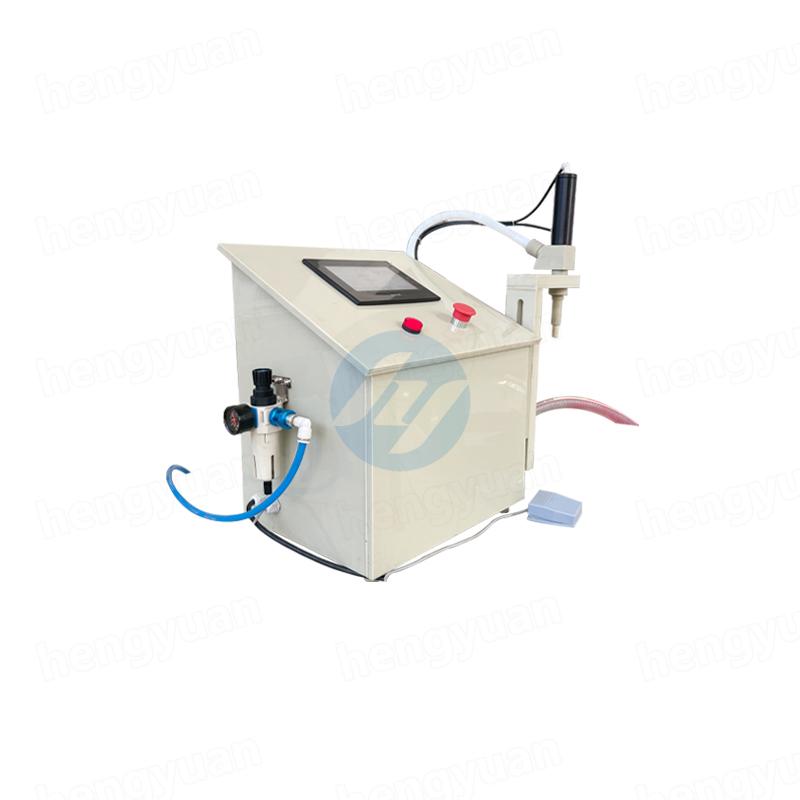

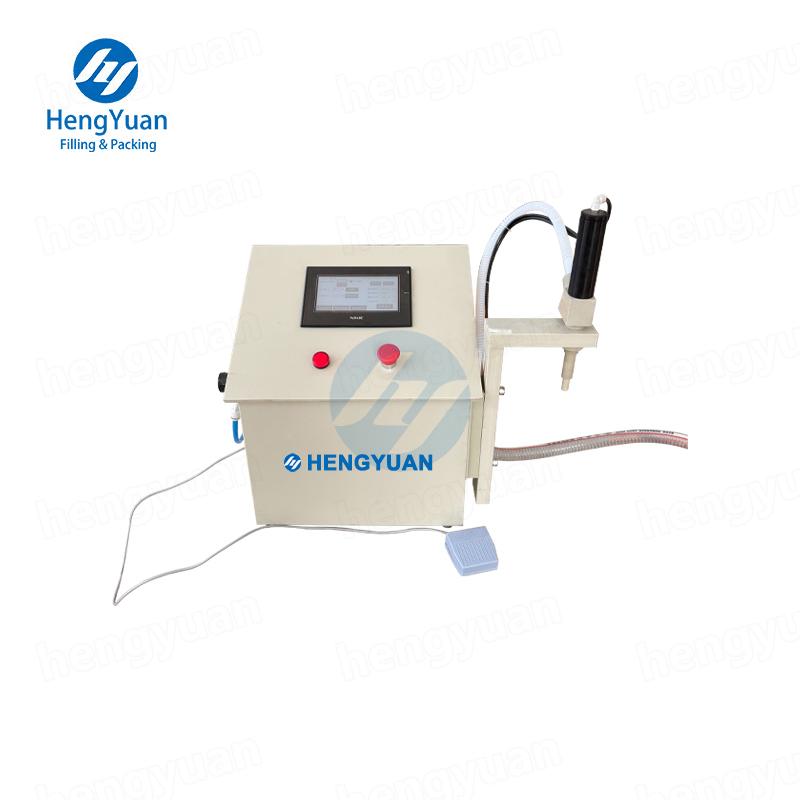

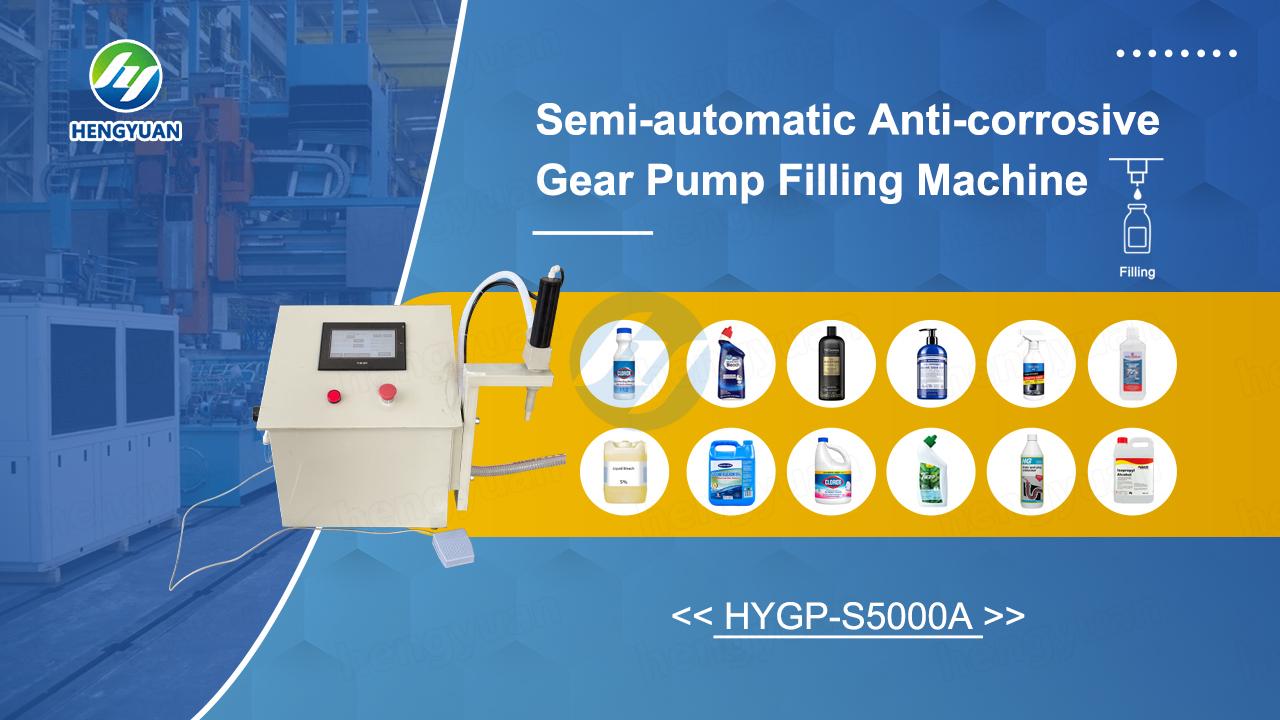

HYGP-S5000A Semi-automatic Anti-corrosive Gear Pump Filling Machine
The parameters are adjustable, simple and convenient, and the filling dose can be accurately calibrated, controlled within 0.5% of the filling dose. The machine is made of anti-corrosive PP, beautiful appearance, will not pollute the material, is the best choice of both high viscosity and normal liquid filling.
Bottling Filling Machine is realized by the man-machine dialogue interface under the operation and control of high-speed PLC. It realizes the linear step-less speed regulation transmission through the human-machine dialogue interface, and can adjust the filling capacity arbitrarily.
The filling machine assembly line integrates machine, electricity and gas into one, with unique design, complete functions, stable performance, high quality and beautiful appearance.
Easily dismantle, clean and maintain. The whole machine is safe, environmental, sanitary, adapting to various kinds of working place.
Product Application
Semi-automatic filling machine, bottle filling machine, toilet bowl cleaner filling machine, liquid bleach filling machine, javel liquid filler, sulphuric acid filling machine, 84 disinfectant, filler, sodium hypochlorite disinfectant barrel filling machine, strong acid filling machine, liquid fertilizer filler, HCL solution filler, detergent filling machine, pipeline unclogger filler, oil fume purifier dispenser, kitchen cleaner dispensing machine, disinfectant and stain remover solution filling equipement, etc.
Product Introduction
Semi-automatic Desktop Anti-corrosive PEEK Gear Rotor One Head Pump dosing filling machine is economical filler for different viscous liquid and cream with different bottle, barrel. The performance of the product reaches the international leading level. PLC control, servo gear pump dosing, equipped with touch screen, smooth operation, no leakage phenomenon.The parameters are adjustable, simple and convenient, and the filling dose can be accurately calibrated, controlled within 0.5% of the filling dose. The machine is made of anti-corrosive PP, beautiful appearance, will not pollute the material, is the best choice of both high viscosity and normal liquid filling.
Bottling Filling Machine is realized by the man-machine dialogue interface under the operation and control of high-speed PLC. It realizes the linear step-less speed regulation transmission through the human-machine dialogue interface, and can adjust the filling capacity arbitrarily.
The filling machine assembly line integrates machine, electricity and gas into one, with unique design, complete functions, stable performance, high quality and beautiful appearance.
Easily dismantle, clean and maintain. The whole machine is safe, environmental, sanitary, adapting to various kinds of working place.
Product Application
Semi-automatic filling machine, bottle filling machine, toilet bowl cleaner filling machine, liquid bleach filling machine, javel liquid filler, sulphuric acid filling machine, 84 disinfectant, filler, sodium hypochlorite disinfectant barrel filling machine, strong acid filling machine, liquid fertilizer filler, HCL solution filler, detergent filling machine, pipeline unclogger filler, oil fume purifier dispenser, kitchen cleaner dispensing machine, disinfectant and stain remover solution filling equipement, etc.
Main Features
Technical Parameters
Filling range
50ml-30000ml (customized)
Filling heads
1pc
Filling nozzle outer diameter
Customized according to bottle mouth
Filling accuracy
≤±0.5%
Maximum filling speed
30L/Minute
Control method
Panel
Working air pressure
0.4-0.8Mpa
Operation voltage
220V/50Hz/1P, 110V/60Hz/1P, customized globally
Electricity consumption
0.75 Kw
Machine size
50*30*55cm
Weight
35Kg
1) Large filling range: 50-30000ml customized
2) Fast filling speed: servo motor drive, quick response, single second filling 500ml, minimum interval time 0.2 seconds
3) Wide range of application: unique pump head structure, can transport high viscosity
pure materials. (As long as the flow can be filled).
4) Anti-leakage, pollution-free: optional Teflon and mechanical seal, work without leakage, flow parts PEEK material, high anti-corrosive.
5) Easy to wash: suck washing liquid into the equipment and wash it with high-speed circulating water, which is convenient and sanitary.

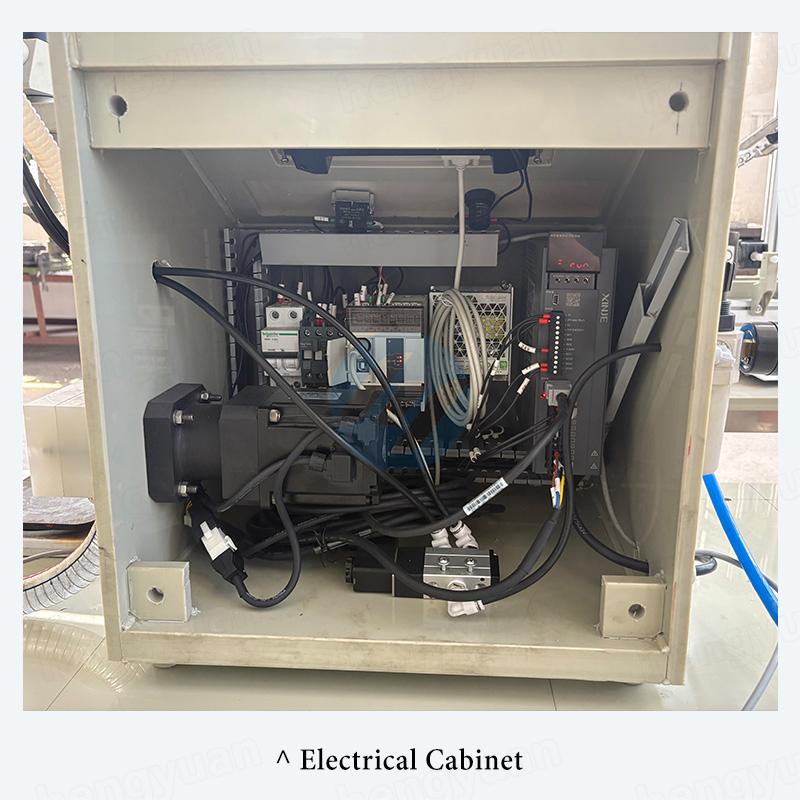

6) This filling machine is a high-tech filling equipment controlled by microcomputer PLC programmable, equip with photo electricity transduction and pneumatic action.

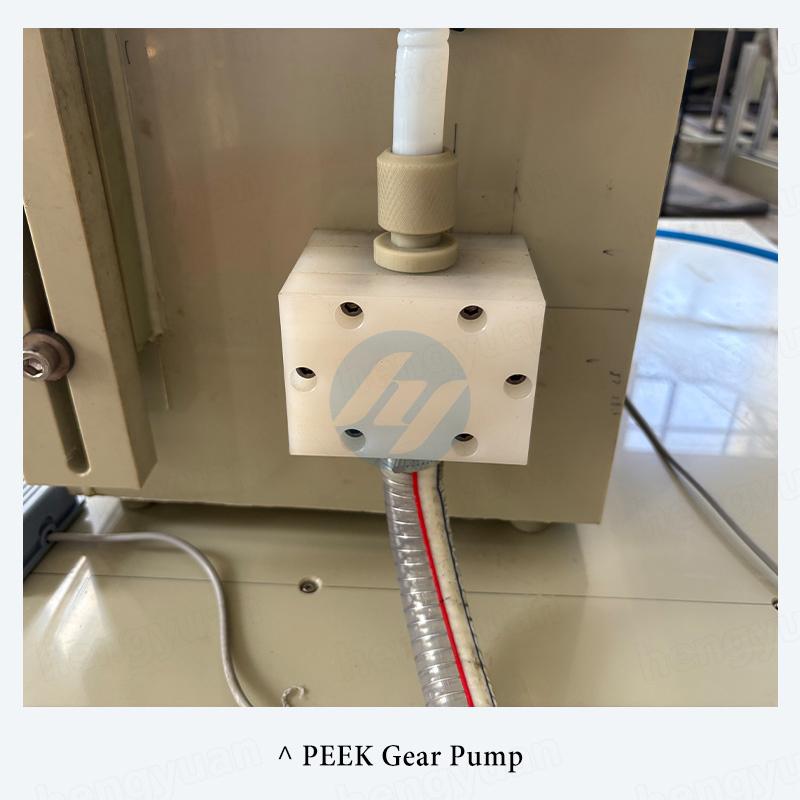

7) Accurate measurement: adopt servo control system with plastic PEEK gear pump.

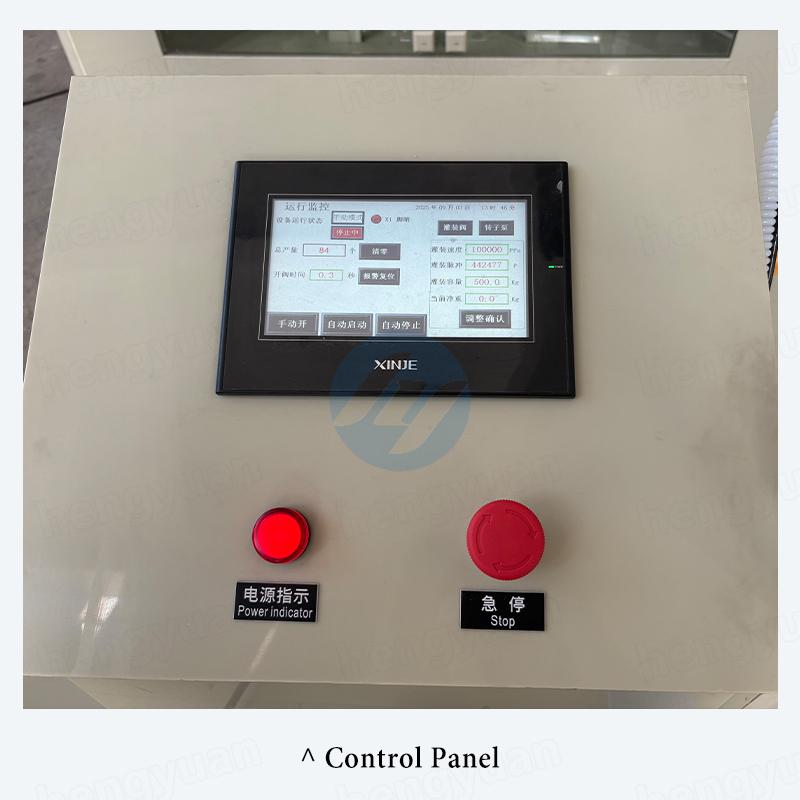

8) Convenient adjustment: replacement filling specifications only by setting on touch screen.
9) Wide range of application: unique pump head structure, can transport high viscosity pure materials. (As long as the flow can be filled).
