Description

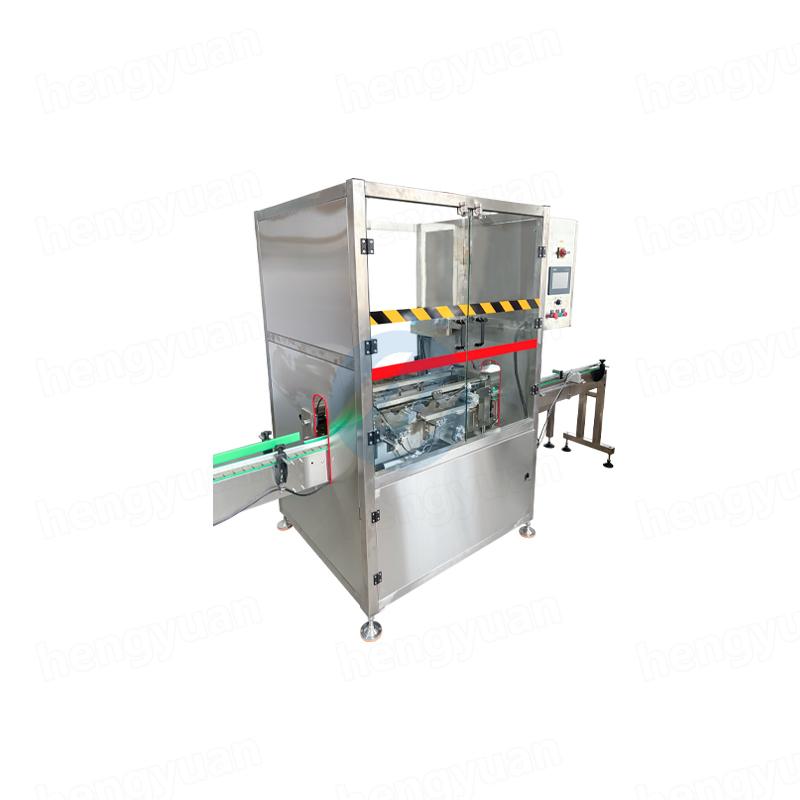

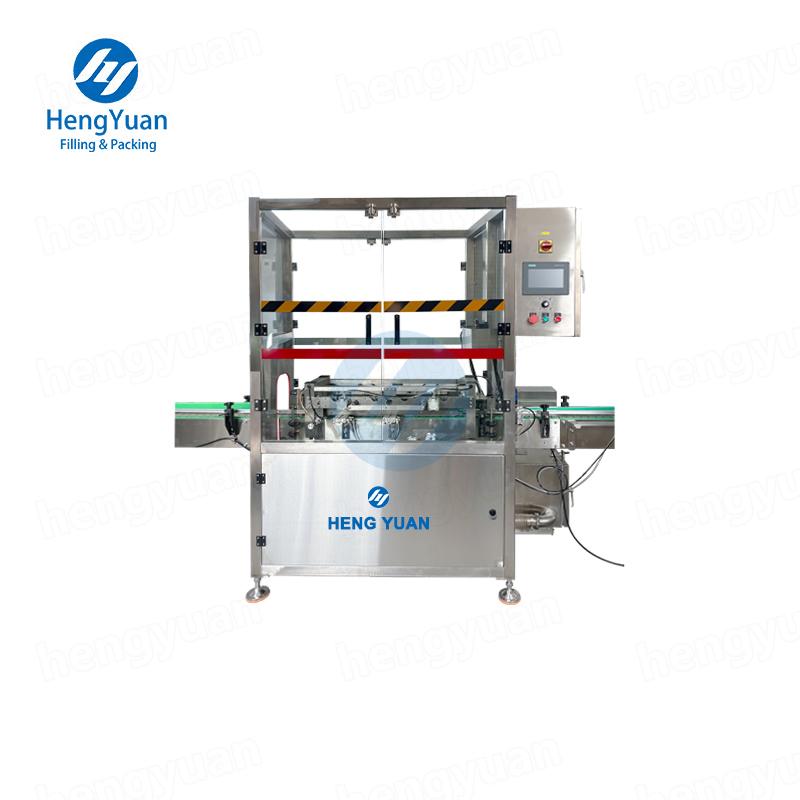

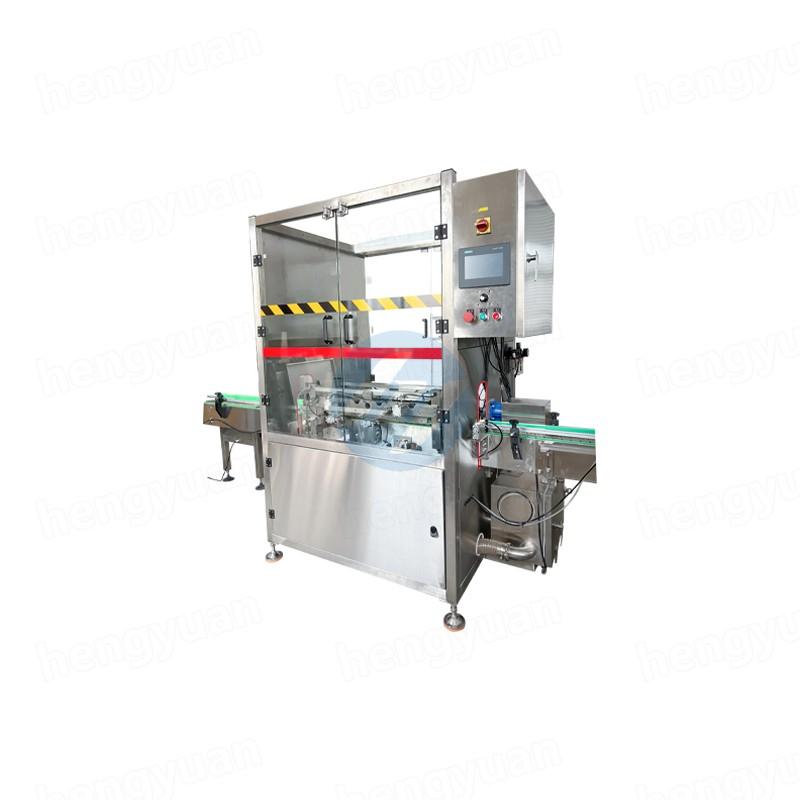

HYWB-200L Automatic Linear Structure Bottle Rinsing Washing Machine
Product introduction

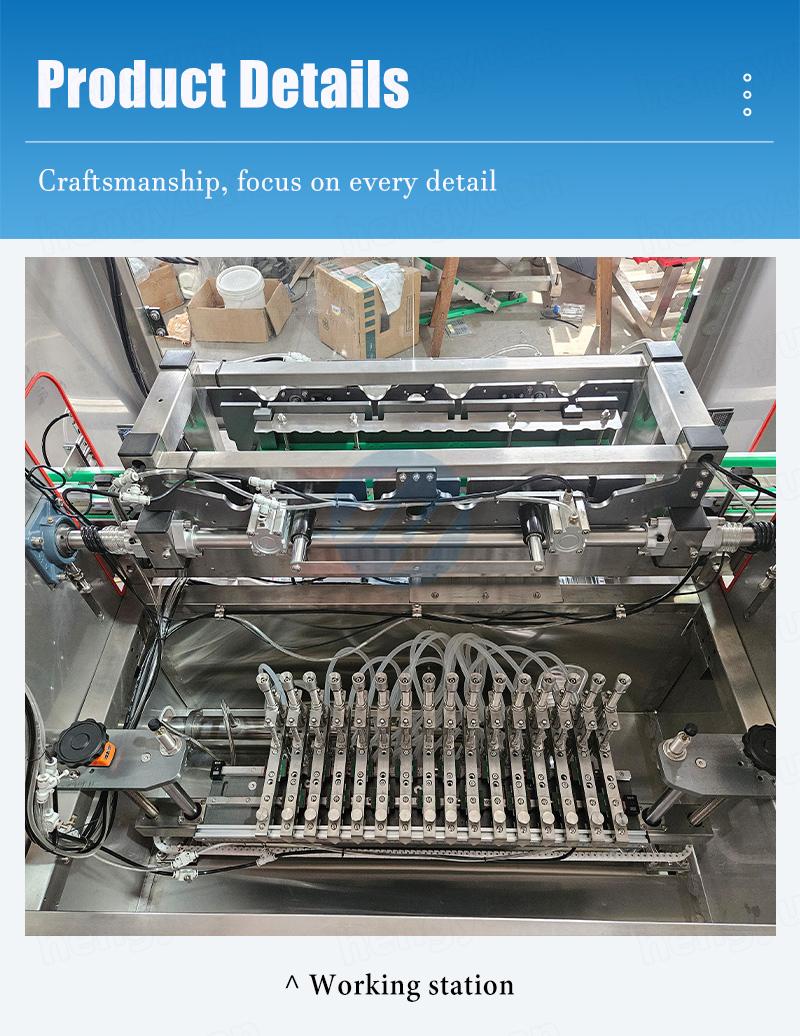

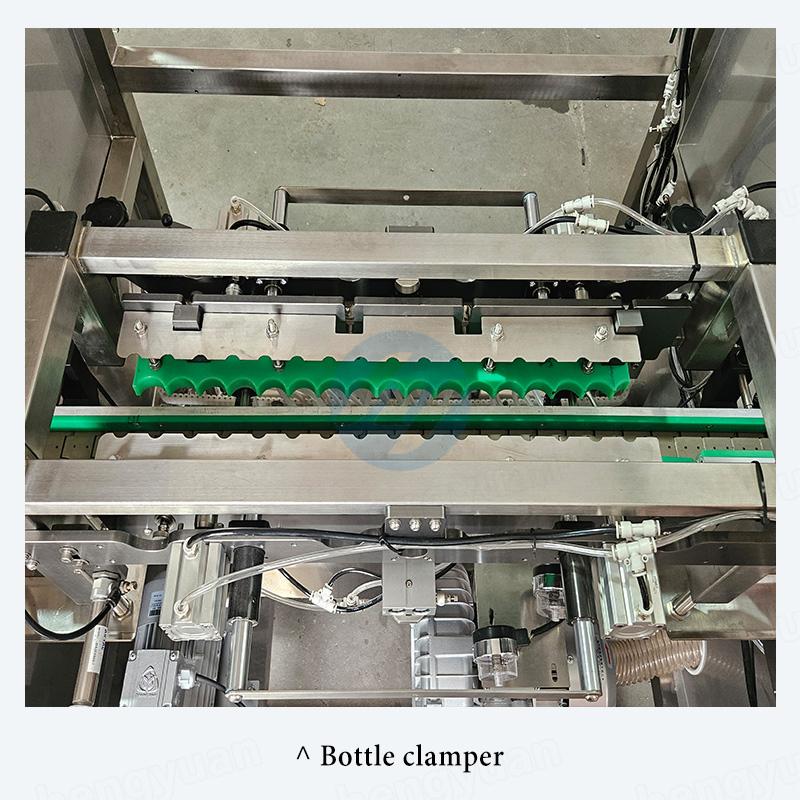

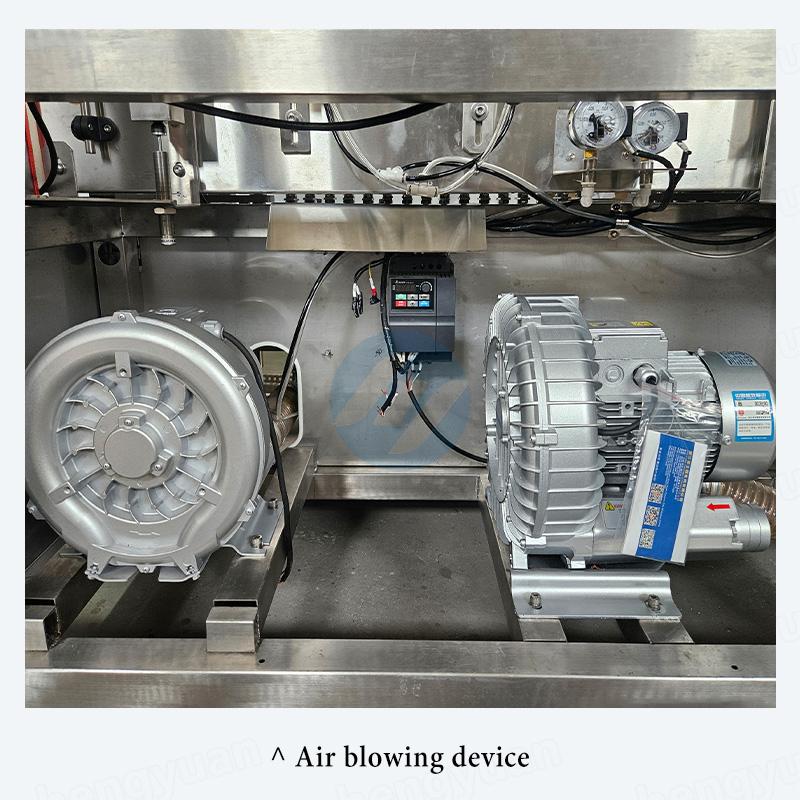

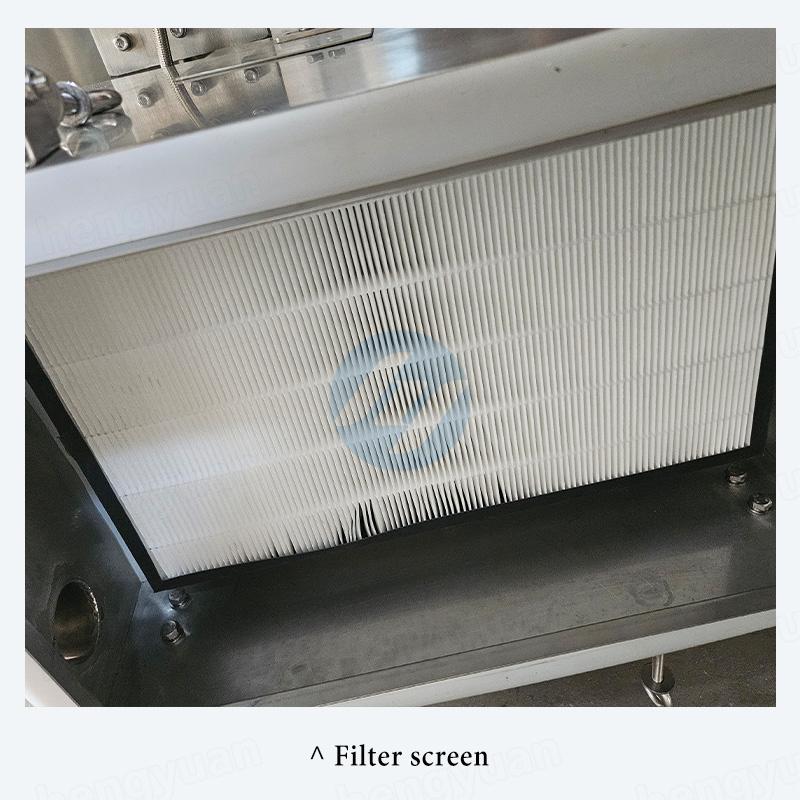

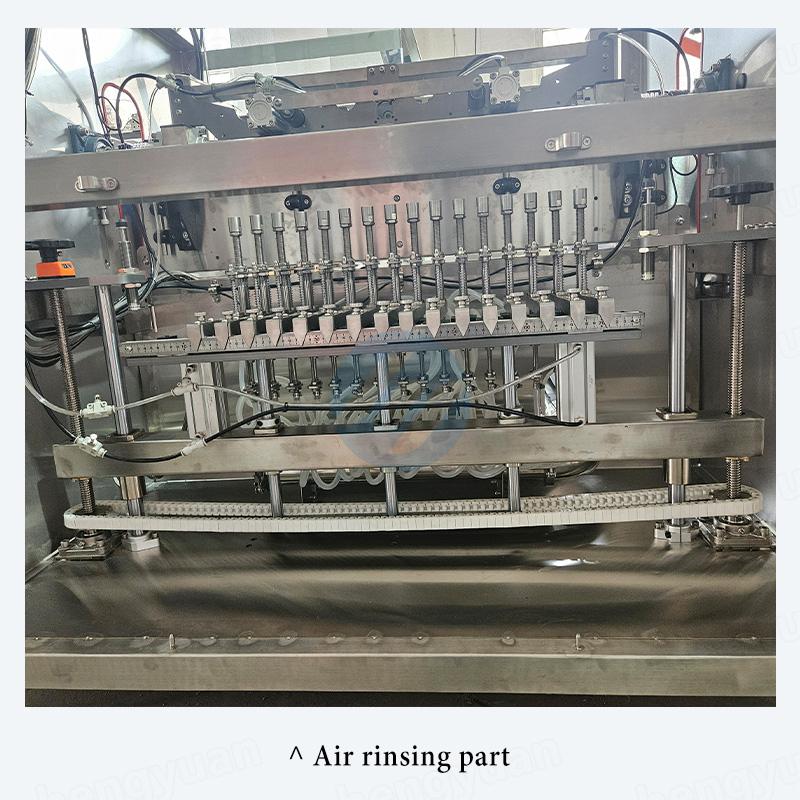

This straight-line gas bottle washer utilizes a servo motor to drive an RV reducer, which rotates the bottle-clamping grippers on the shaft for inversion motion. The washing heads feature pneumatic lifting, with a blower providing both air injection and suction. Electrostatic ions generated by an ionizer are delivered into the bottles along with filtered compressed air. Simultaneous internal suction evacuates contaminants, ensuring thorough interior cleaning.
Rinsing Bottle Washing Machine is widely used in bottle inside washing of food, beverage, daily chemical, agricultural chemical, food, personal care and pharmaceutics industry.
Application
Bottle washing machine, bottle rinsing machine, bottle air washing machine, bottle air washing machinery, water pet bottle rinsing machine, juice glass bottle rinsing machine, glass jar rinsing machine, food bottle rinsing machine, metal bottle rinsing machine, glass jar ringing machine, etc.
Product introduction
This straight-line gas bottle washer utilizes a servo motor to drive an RV reducer, which rotates the bottle-clamping grippers on the shaft for inversion motion. The washing heads feature pneumatic lifting, with a blower providing both air injection and suction. Electrostatic ions generated by an ionizer are delivered into the bottles along with filtered compressed air. Simultaneous internal suction evacuates contaminants, ensuring thorough interior cleaning.
Rinsing Bottle Washing Machine is widely used in bottle inside washing of food, beverage, daily chemical, agricultural chemical, food, personal care and pharmaceutics industry.
Application
Bottle washing machine, bottle rinsing machine, bottle air washing machine, bottle air washing machinery, water pet bottle rinsing machine, juice glass bottle rinsing machine, glass jar rinsing machine, food bottle rinsing machine, metal bottle rinsing machine, glass jar ringing machine, etc.
Techinical parameters
Type
Linear Arrangement Bottle Air Rinsing Machine
Rinsing head
6/8/10/12/16pcs （customized）
Bottle size
Diameter: Φ20mm-Φ110mm Height: 600mm-300mm(Customized)
Mouth size
≥Φ15mm customized
Bottle type
30ml-1000ml PET bottle, plastic bottle, glass bottle, aluminium bottle, etc
Capacity
1000-3000BPH
Air pressure
0.4-0.8MPa
Air pressure
2CFM@90PSI Clean and stable air supply
Power supply
220V/110V ;50/60HZ
Power
3Kw
Net Weight
490Kg
Dimension
L200xW115xH180CM
Main Features
1) Simple structure in linear type ,easy in installation and maintenance.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) Stable performance, fast speed.
4) Running in a high automation and Intelligence, no pollution
5) It is suitable for washing bottles of various shapes, with wide applicability.
6) The bottle is washed with gas, and the washed bottle is sanitary and clean.

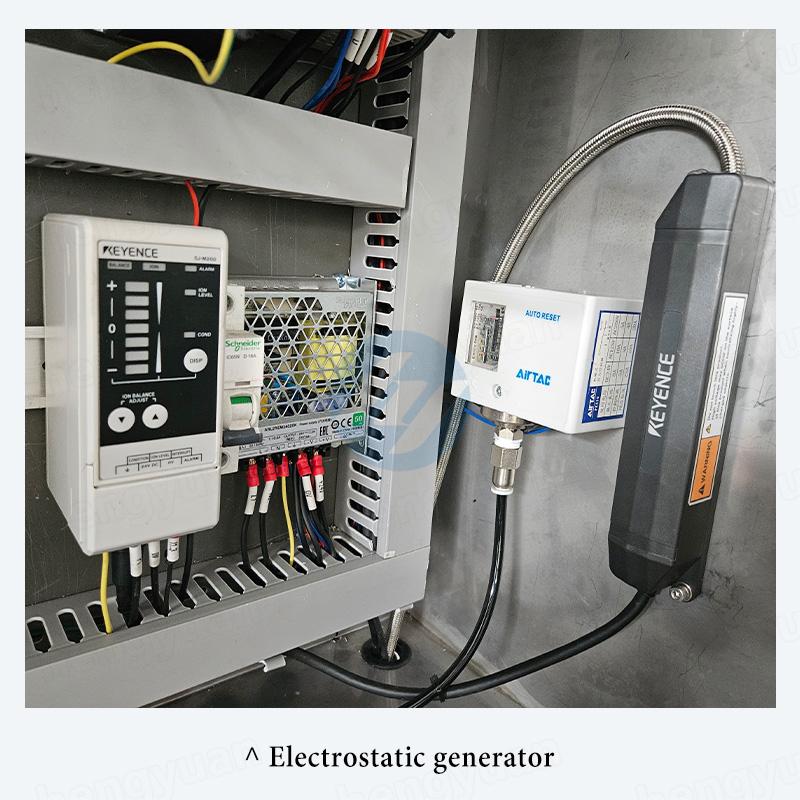

7) Optional electrostatic ion generator. Blow and suck, dust removal is more guaranteed.

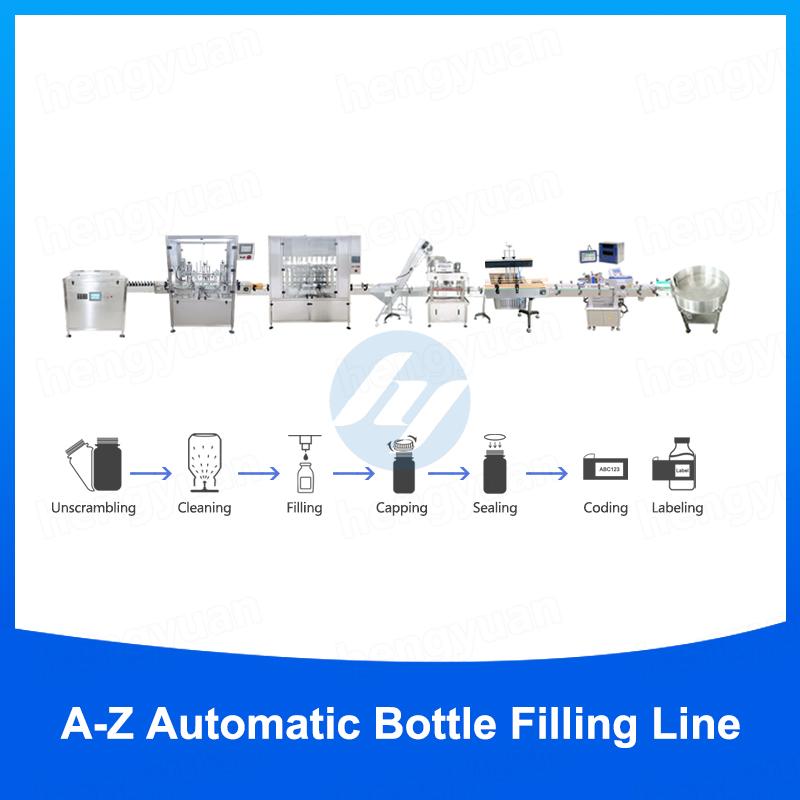

8) Apply a linker to connect with the other machines like filling machine, capping machine, etc.
9) Widely used in packing field like chemical, food, medicine, chemical industries.
