Semi-automatic Pneumatic Piston Single-head Mixed Sauce Filling Machine

  • Product Item：HYSP1-PM
  • Automatic Grade: Semi-Automatic
  • Packaging Material: Plastic, Metal, Glass
  • Filling volume: 10-5000ml customized
  • Filling Material: Milk, Water, Oil, Juice, Granuled sauce
    • Semi-automatic Granule Sauce Filler with Mixer Hopper , Desktop Pneumatic Piston Cylinder Single-head Filling Machine , Semi-automatic Pneumatic Piston Single-head Mixed Sauce Paste Filling Machine
    Inquiry Send Email

    Description

    Semi-automatic Pneumatic Piston  Single-head Mixed Sauce / Paste Filling Machine

    Product Introduction

    Semi-automatic desktop pneumatic piston mixed sauce / paste filling machine is designed according to the advantage technical. It is with simple structure, high Accuracyand easy to the operation. It is the best equipment to fill high thickness material and paste. Accord to GMP, the parts which connect with material are all made of 304 stainless steel. Machine with filling volume adjustable handle, filling speed also can be changed as you like, high accuracy.
    Filling nozzle designed with nondrip function. This series machine can be made single nozzle model, doubie nozzles model and full pneumatic explosion proof model. Semi Automatic Pneumatic Piston Paste Liquid Filling Machine is mainly used for bottling of daily chemical, agricultural chemical, food, personal care and pharmaceutics industry.

    Product Application

    10-5000ml customized single-head granules mixed viscous liquid filling machine.

    For examples: Beef paste, chilli sauce, soybean paste, pepper paste, sesame seasoning oil, hotpot base, vegetable paste, meat soap, etc. any liquid, half-flowing liquid, viscous cream, with or without granules, semi-automatic desktop sauce dispenser, liquid filler, refill equipment.


    Semi-automatic Pneumatic Piston Single-head Mixed Sauce / Paste Filling Machine

    Technical Parameters
    Filling range
    100-1000ml (10-100ml, 30-300ml, 50-500ml, 250-2500ml, 0.5-5L)
    Filling nozzle outer diameter
    Customized according to bottle mouth
    Filling accuracy
    ≤±1%
    Filling speed
    500~1500 bottles/minute according to bottle filling volume
    Control method
    Pedal or automatic
    Working air pressure
    0.5-0.7Mpa
    Operation voltage
    220V or 110V, Single phase
    Electricity consumption
    70w
    Hopper size
    30L
    Stirring function
    YES
    Heating function
    Optional

    Machine Display


    Semi-automatic Pneumatic Piston Single-head Mixed Sauce Filling Machine


    Semi-automatic Pneumatic Piston Single-head Paste Filling Machine


    Pneumatic Piston Single-head Mixed Sauce / Paste Filling Machine


    Semi-automatic Piston Single-head Mixed Sauce / Paste Filling Machine


    Semi-automatic Pneumatic Piston Single-head Filling Machine


    Semi-automatic Pneumatic Piston Single-head Mixed Sauce / Paste Filling Machine size

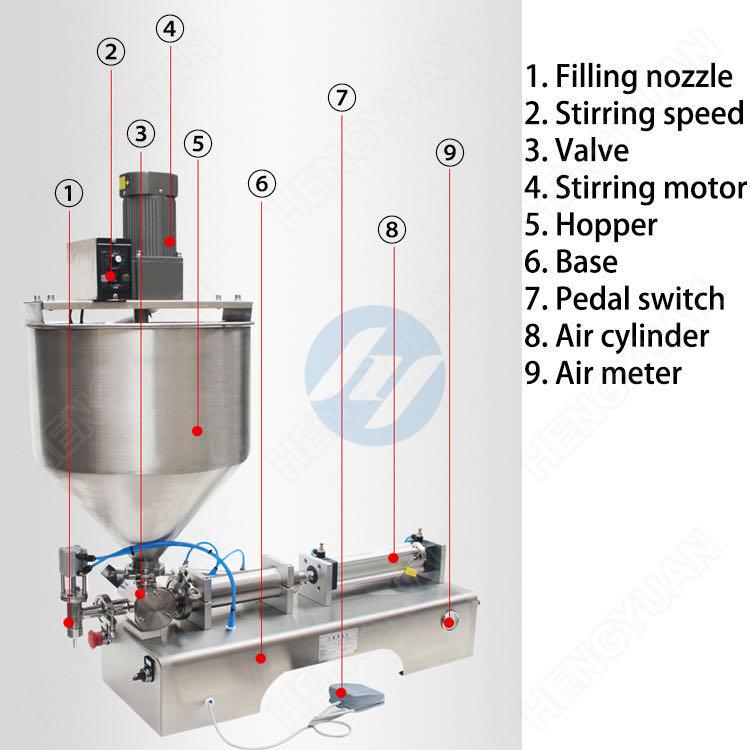

    Semi-automatic Pneumatic Piston Single-head Mixed Sauce / Paste Filling Machine introduction


    Semi-automatic Granule Sauce Filler with Mixer Hopper


    Desktop Pneumatic Piston Cylinder Single-head Filling Machine


    Desktop Pneumatic Piston Cylinder Single-head Filling Machine details


    Semi-automatic Pneumatic Piston Single-head Mixed Sauce Filling Machine details


    Semi-automatic Pneumatic Piston Single-head Mixed Sauce Filling Machine details 1


    Semi-automatic Pneumatic Piston Single-head Mixed Sauce Filling Machine packaging logistics
