  4. HYVF-320L VFFS Vertical Forming Filling
  • HYVF-320L VFFS Vertical Forming Filling Sealing Pneumatic Piston Cylinder Volume Measuring Liquid Bag Pouch Packing Machine
  • HYVF-320L VFFS Vertical Forming Filling Sealing Pneumatic Piston Cylinder Volume Measuring Liquid Bag Pouch Packing Machine
  • HYVF-320L VFFS Vertical Forming Filling Sealing Pneumatic Piston Cylinder Volume Measuring Liquid Bag Pouch Packing Machine
  • HYVF-320L VFFS Vertical Forming Filling Sealing Pneumatic Piston Cylinder Volume Measuring Liquid Bag Pouch Packing Machine
HYVF-320L VFFS Vertical Forming Filling Sealing Pneumatic Piston Cylinder Volume Measuring Liquid Bag Pouch Packing MachineHYVF-320L VFFS Vertical Forming Filling Sealing Pneumatic Piston Cylinder Volume Measuring Liquid Bag Pouch Packing MachineHYVF-320L VFFS Vertical Forming Filling Sealing Pneumatic Piston Cylinder Volume Measuring Liquid Bag Pouch Packing MachineHYVF-320L VFFS Vertical Forming Filling Sealing Pneumatic Piston Cylinder Volume Measuring Liquid Bag Pouch Packing Machine

HYVF-320L VFFS Vertical Forming Filling Sealing Pneumatic Piston Cylinder Volume Measuring Liquid Bag Pouch Packing Machine

  • Product Item:HYVF-320L
  • Driven Type: Electric
  • Air pressure: 0.5-0.8Mpa
  • Packaging Type: Bags, Film, Pouch
  • Production Capacity: 30bag/min
  • soy sauce packing equipment , vinegar packing machine , cooking wine bag packer , milk pouch automatic packing machine
    Inquiry Send Email

    Description

    HYVF-320L VFFS Liquid Bag Packing Machine


    Introduction

    Automatic packaging machine for bagged liquid is the main equipment of bagged liquid production line. This machine consists of film feeding and feeding system, traction mechanism, heat sealing and cutting device, filling mechanism, etc., all of which are made of stainless steel, and meet the requirements of food production. Each process is accurately completed by PLC control center through touch screen according to design requirements. It is equipped with automatic film deviation adjustment device, film length measurement adjustment device, multi-pass sterilization treatment, high filling precision, unique sanitary and firm sealing. Adopt computer program man-machine interface. Easy to operate.
    By using piston cylinder measuring method, it can pack all kinds of liquid.

    Application
    Vertical forming filling sealing packing machine, Drinks bag packing machine, automatic soy milk pouch packing machine, soy sauce packing equipment, vinegar packing machine, cooking wine bag packer, milk pouch automatic packing machine,  juice bag automatic packing equipment, edible oil bag packing machine, rice wine packing equipment, Liquid packaging etc.

    HYVF-320L VFFS Liquid Bag Packing Machine

    HYVF-320L VFFS Liquid Bag Packing Machine

    HYVF-320L VFFS Liquid Packing Machine Application

    Technical Parameters
    Pouch length
    L50-150mm
    Packing range
    100-500, 100-1000ml
    Pouch width
    W40-150mm
    Packing capacity
    25-35bags/min
    Packing accuracy
    ≤±1%
    Power
    1.6kw
    Power supply
    AC220V/110V, Single phase. Globally customized
    Roll film material
    PET+PE/PET+AL+PE/NY+PE/NON-WOVEN FABRIC/PAPER-PLASTIC FILM
    Sealing method
    Edge side, back side
    Net weight
    280kg
    Machine size
    L88xW76xH180cm
    HYVF-320L Automatic VFFS Liquid Packing Machine

    Vertical Forming Filling Sealing Liquid Packing Machine

    VFFS Cooking Oil Pouch Packing Machine

    HYVF-320L VFFS Milk Bag Packing Machine

    VFFS Water Pouch Packing Machine

    HYVF-320L VFFS Soy Sauce Bag Packing Machine

    VFFS Liquid Pouch Packing Machine

    VFFS Liquid Packing Machine

    Inquiry Us





    Related Products

    Automatic Upper Weighing Type Free Flowing Liquid Filling Machine

    Automatic Upper Weighing Type Free Flowing Liquid Filling Machine

    Automatic Star wheel Type Liquid Filling Capping Machine

    Automatic Star wheel Type Liquid Filling Capping Machine

    Automatic Anti-corrosive Gravity Type 100-1000ml Liquid Filling Machine

    Automatic Anti-corrosive Gravity Type 100-1000ml Liquid Filling Machine

    Automatic Four Wheels  Capping Machine

    Automatic Four Wheels Capping Machine

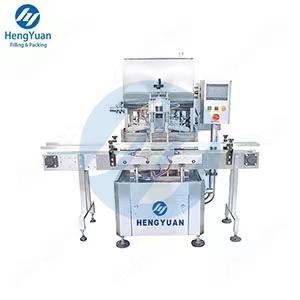

    HYAP2-10TMHS Automatic Pneumatic Piston Two Head Sauce Filling Machine With Heating Stirring Material Hopper
