Description
HYRO-A100-S Automatic Servo Rotor Pump Sauce Filling Machine
Product Introduction
Linear Servo Rotor Pump Sauce filling machine is for pure Sauce and Granular sauce in different bottle, cans or jars. The performance of the product reaches the international leading level. PLC control, servo rotor pump dosing, equipped with brand touch screen, smooth operation, no leakage phenomenon, No bottle no filling, automatically control feeding the liquid into machine tank, liquid level is controlled at the same height.
The parameters are adjustable, simple and convenient, and the filling dose can be accurately calibrated, controlled within 0.5% of the filling dose. The machine is made of high quality stainless steel, beautiful appearance, will not pollute the material, is the best choice of both high viscosity and normal liquid filling. Its hopper can be matched with water heating and stirring function, which can be used for granules sauce, thick Cream and Paste.
Bottling Filling Machine is realized by the man-machine dialogue interface under the operation and control of high-speed PLC. It realizes the linear stepless speed regulation transmission through the human-machine dialogue interface, and can adjust the filling capacity arbitrarily. It can be equipped with a pneumatic gland or a capping device to form a multi-station one-machine multi-functional production line.
The filling machine assembly line integrates machine, electricity and gas into one, with unique design, complete functions, stable performance, high quality and beautiful appearance. Applied to GMP standard.
Easily dismantle, clean and maintain. The whole machine is safe, environmental, sanitary, adapting to various kinds of working place.
Rotor pump liquid filling machine is widely used for bottling of beverage, daily chemical, agricultural chemical, food and pharmaceutics industry.
Product application
30-5000ml, 5L-30L customized single-head liquid rotor pump dosing filling machine.
For examples: Chili sauce filling machine, Beef paste filling machine, Mushroom sauce filling machine, Granuled sauce dispensing equipment, Soybean sauce filling machine, Pepper chili filler, sesame seasoning oil dispenser, hotpot base filling equipment, vegetable paste filling machine, meat soap dispenser, etc.
Any liquid, half-flowing liquid, viscous cream, with or without granules, sauce dispenser, liquid filler, refill equipment, etc.
HYRO-A100-S Automatic Single Head Servo Rotor Pump Filling Machine
Product Introduction
Linear Servo Rotor Pump Sauce filling machine is for pure Sauce and Granular sauce in different bottle, cans or jars. The performance of the product reaches the international leading level. PLC control, servo rotor pump dosing, equipped with brand touch screen, smooth operation, no leakage phenomenon, No bottle no filling, automatically control feeding the liquid into machine tank, liquid level is controlled at the same height.
The parameters are adjustable, simple and convenient, and the filling dose can be accurately calibrated, controlled within 0.5% of the filling dose. The machine is made of high quality stainless steel, beautiful appearance, will not pollute the material, is the best choice of both high viscosity and normal liquid filling. Its hopper can be matched with water heating and stirring function, which can be used for granules sauce, thick Cream and Paste.
Bottling Filling Machine is realized by the man-machine dialogue interface under the operation and control of high-speed PLC. It realizes the linear stepless speed regulation transmission through the human-machine dialogue interface, and can adjust the filling capacity arbitrarily. It can be equipped with a pneumatic gland or a capping device to form a multi-station one-machine multi-functional production line.
The filling machine assembly line integrates machine, electricity and gas into one, with unique design, complete functions, stable performance, high quality and beautiful appearance. Applied to GMP standard.
Easily dismantle, clean and maintain. The whole machine is safe, environmental, sanitary, adapting to various kinds of working place.
Rotor pump liquid filling machine is widely used for bottling of beverage, daily chemical, agricultural chemical, food and pharmaceutics industry.
Product application
30-5000ml, 5L-30L customized single-head liquid rotor pump dosing filling machine.
For examples: Chili sauce filling machine, Beef paste filling machine, Mushroom sauce filling machine, Granuled sauce dispensing equipment, Soybean sauce filling machine, Pepper chili filler, sesame seasoning oil dispenser, hotpot base filling equipment, vegetable paste filling machine, meat soap dispenser, etc.
Any liquid, half-flowing liquid, viscous cream, with or without granules, sauce dispenser, liquid filler, refill equipment, etc.
HYRO-A100-S Automatic Single Head Servo Rotor Pump Filling Machine
Technical Parameters
Model
HYRO-A100-S
Heads
1pc
Capacity(BPH)
200ml: Approx 1200
Volume
50-5000ml, 5L-30L customized ( can fill more )
Accuracy
≤±0.5%
Suitable Bottles
Height: 100-280mm, Diameter: Φ30-110mm, (can be customized)
Control method
Touch screen and PLC
Air supply
0.5-0.7Mpa
Volume of hopper
40L/80L optional
Power supply
2.2Kw
Voltage
110V/220V, Single-phase , 50/60Hz, customized globally
Weight
290Kg
Main Features
1) Simple structure in linear type, easy in installation and maintenance.
2) Adopting advanced world famous brand components in pneumatic parts, electric parts and operation parts.
3) This filling machine is a high-tech filling equipment controlled by microcomputer PLC programmable, equip with photo electricity transduction and pneumatic action.
4) Accurate measurement: adopt servo control system with rotor pump.
5) There is anti-leakage nozzle, prevent the liquid drop on conveyor cause pollution.
6) Convenient adjustment: replacement filling specifications only by setting on touch screen.
7) Suitable material: Pure sauce and Granular sauces that free-flowing and very viscous.

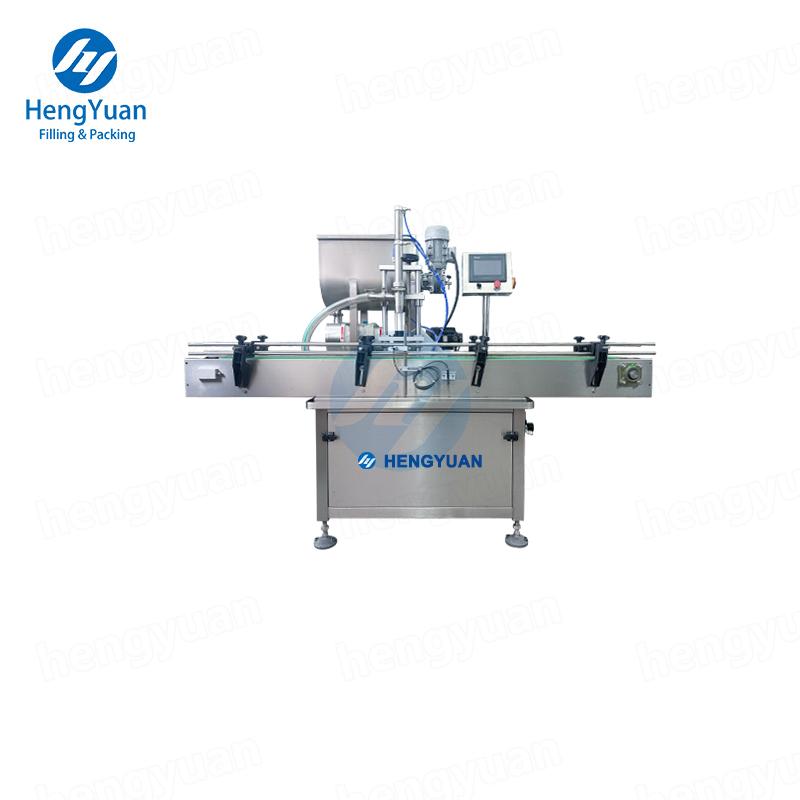

Machine Display
