HYWB-R Automatic Bottle Rinsing Washing Machine | Water Or Cleaning Air Washer

HYWB-R Automatic Bottle Rinsing Washing Machine | Water Or Cleaning Air Washer

Product Item：HYWB-R

Capacity: 2000-12000BPH

Function: Wash bottle with air or water

Key Selling Points: Easy to Operate

Bottle type: round, square, flat and abormal

Description

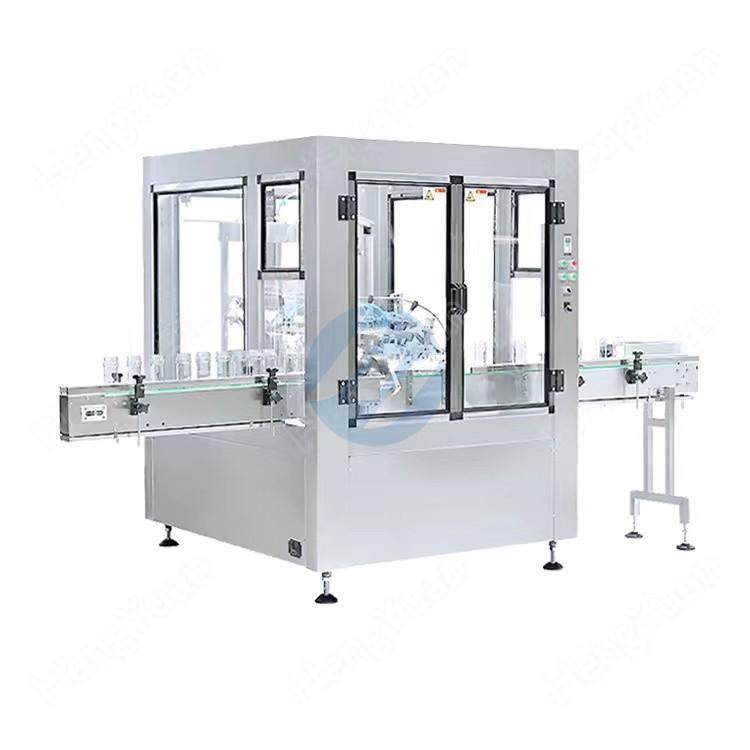

HYWB-R Automatic Bottle Rinsing Washing Machine

Product introduction

Automatic Rotary Rinsing Bottle Washing Machine (wate or air wash) is mainly used for cleaning of glass bottles and PET bottles. It suits for full-automatic bottle cleaning before filling of wine and beverage manufacture, the capacity of the machine is about 2000-12000 bottles/hour. While it can be linked with filling line, it used continuous tracking way of cleaning,with high efficient, and perfect flushing effect, may be used in the different sizes of bottles and operation maintenance convenient.

Rotary Rinsing Bottle Washing Machine is widely used in bottle inside washing of daily chemical, agricultural chemical, food, personal care and pharmaceutics industry.

Application
Bottle washing machine, bottle rinsing machine, bottle water washing machine, bottle air washing machine, water pet bottle rinsing machine, juice glass bottle rinsing machine, glass jar rinsing machine, drinking beverage bottle rinsing machine, etc.

HYWB-R Automatic Bottle Rinsing Washing Machine

Techinical parameters
Type	WB-12R	WB-18R	WB-20R	WB-24R	WB-32R	WB-60R
Rinsing head	12	18	20	24	32	60
Bottle size	Diameter: Φ40mm-Φ110mm Height: 80mm-350mm(Customized)
Mouth size	≥Φ18mm
Bottle type	50ml-5000ml PET bottle, plastic bottle, glass bottle, aluminium bottle, etc
Capacity(1L)	2000BPH	3000 BPH	3300 BPH	4000 BPH	5800 BPH	12000 BPH
Water pressure	0.2-0.4MPa
Air pressure	0.55MPa-0.65MPa Clean and stable air supply
Power supply	220V/110V ;50/60HZ
Power	1.1KW	1.5KW	1.5KW	2.2KW	3KW	5.5KW
