Description

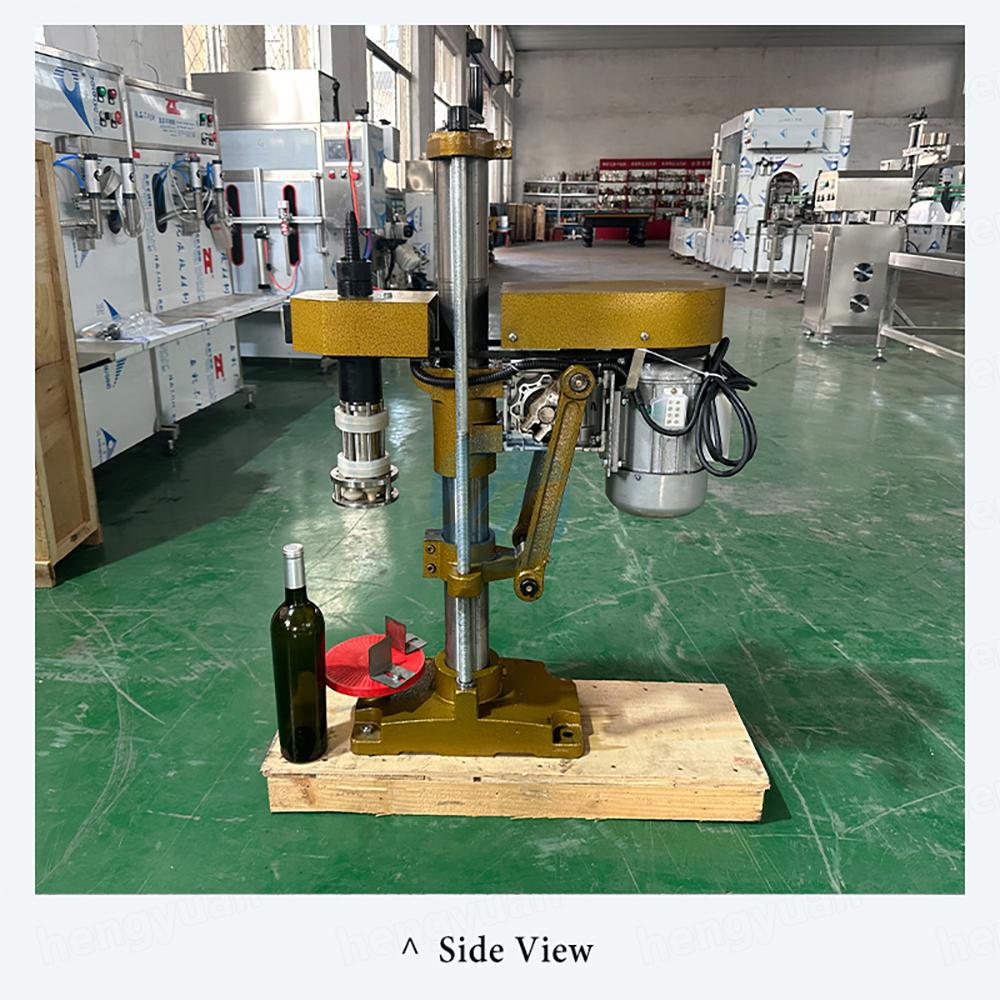

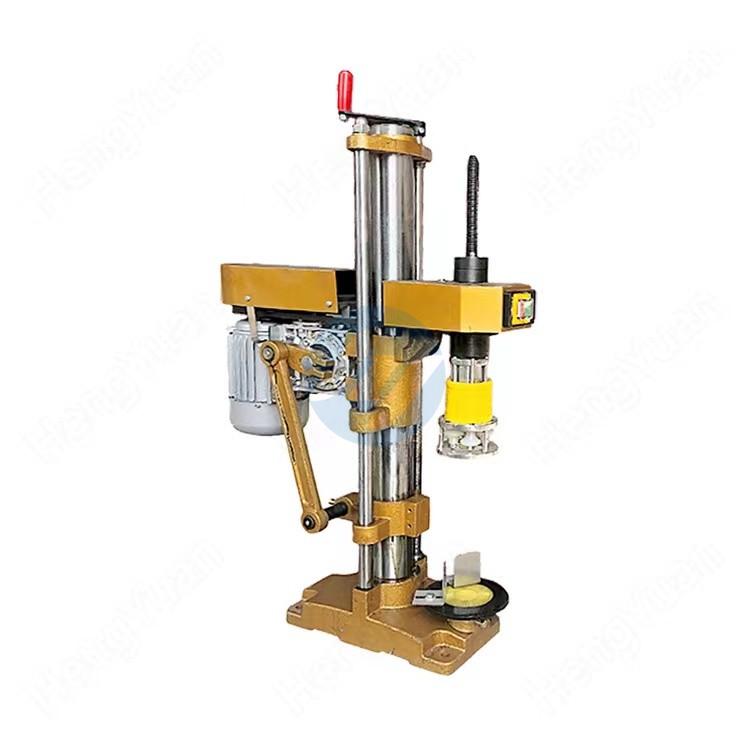

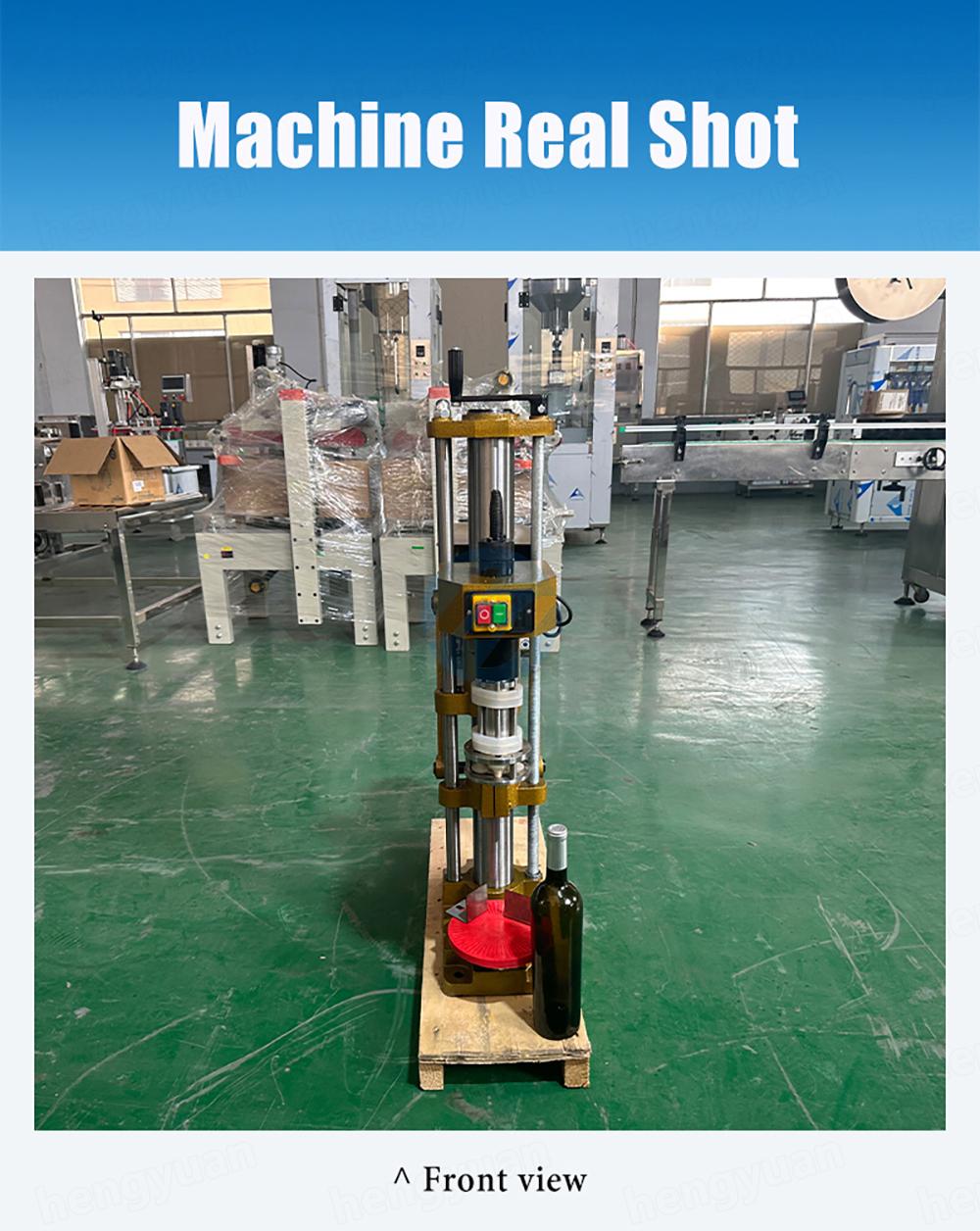

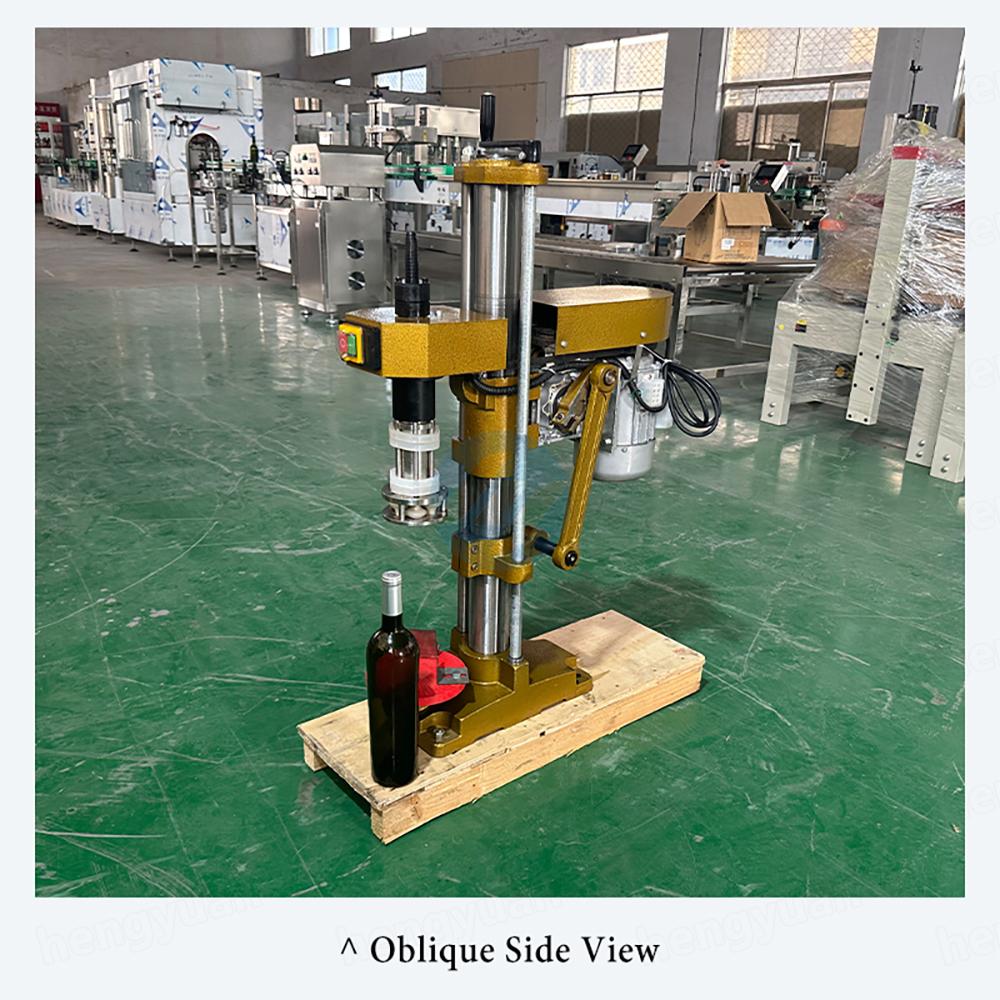

HYSC-1A-F Semi-automatic Aluminum-plastic Lid Twisting Bottle Mouth
Single Head Sealing Machine
This machine is suitable for twisting and sealing of aluminum foil caps like wine. The sealing knife is made of special materials, and it is strictly treated by heat treatment, with long service life. The rolling head adopts the four-wheel balance working principle, and the rolling and edge-keeping can be completed automatically at one time. The pressure stroke adjustment is simple, the texture is even, the appearance is smooth and wrinkle-free, the sealing effect is good, and the efficiency is high.
This machine can replace the sealing head and is suitable for sealing various bottle caps, such as glass bottles and plastic bottles. It is an ideal equipment for small and medium-sized wineries, condiment factories, beverage factories and other manufacturers.
Working principle
When working, the rotation of the motor is input into the worm gear box through the double pulley, and then the output end of the worm gear drives a crank-slider mechanism composed of a crank, a connecting rod, a sliding supports, an upright post, etc., so as to drive the twisting head to reciprocate up and down, thus realizing the purpose of twisting aluminum-plastic lids.
Product Application
Glass Bottle Mouth Twisting Aluminum-plastic lid Sealing Machine, Wine bottle Twisting Aluminum-plastic lid Sealing Machine, soy sauce vinegar bottle Twisting Aluminum-plastic lid Sealer, Whisky Glass Bottle Mouth Twisting Aluminum-plastic lid Sealing Machine, etc.
HYSC-1A-F Semi-automatic Aluminum-plastic Lid Twisting Bottle Mouth Single Head Sealing Machine.
