Automatic Weighing Granules Filling Machine

Automatic Weighing Granules Filling Machine

Product Item：HYGW-AL100

packaging material: Plastic, Glass, Metal, Paper, Wood

Suitable material: Granular materials

Keywords: Weighing filling machine

Description

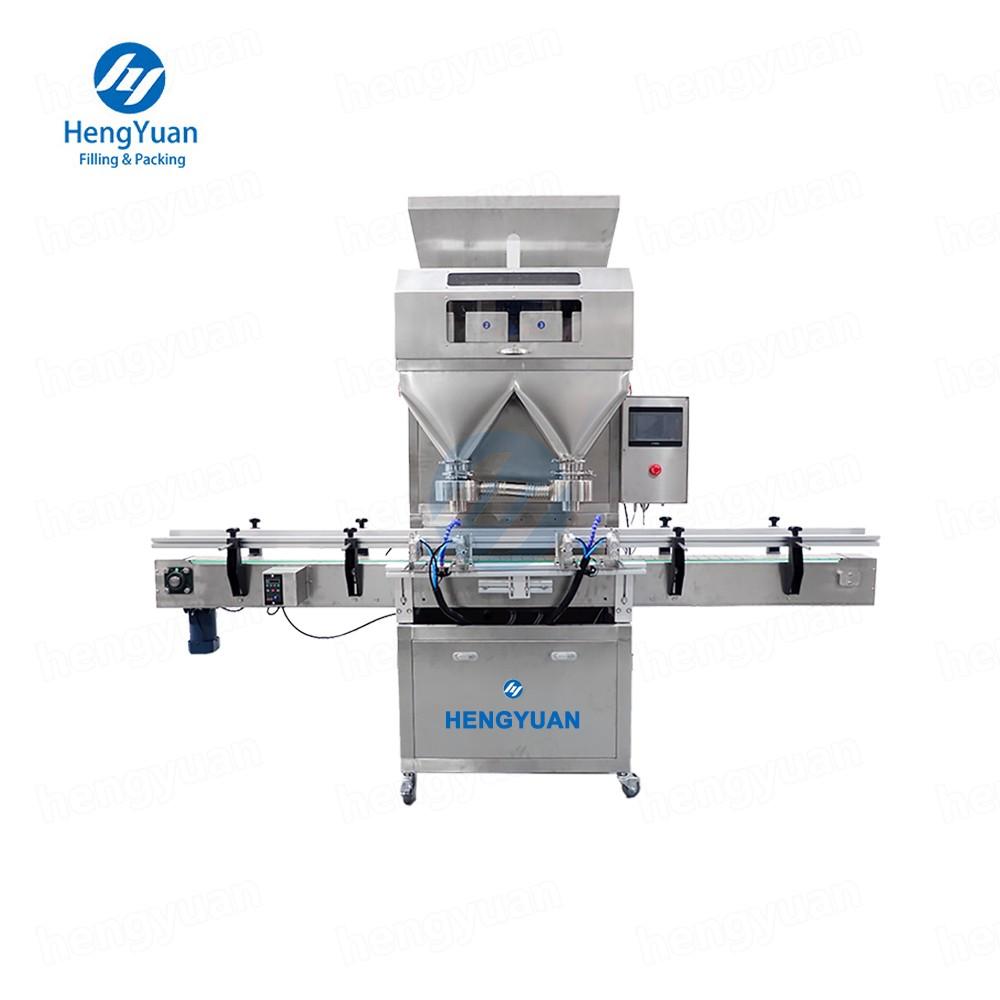

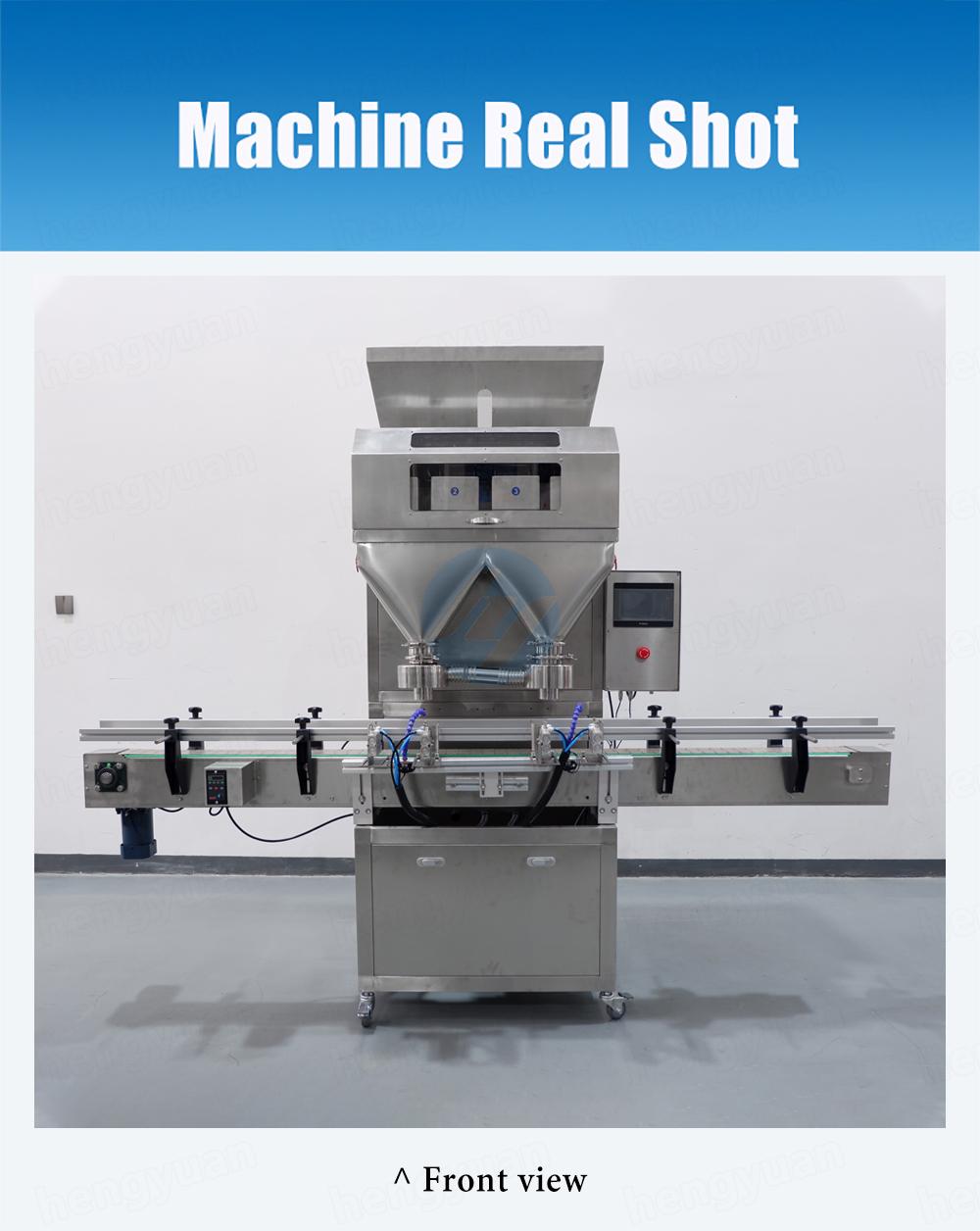

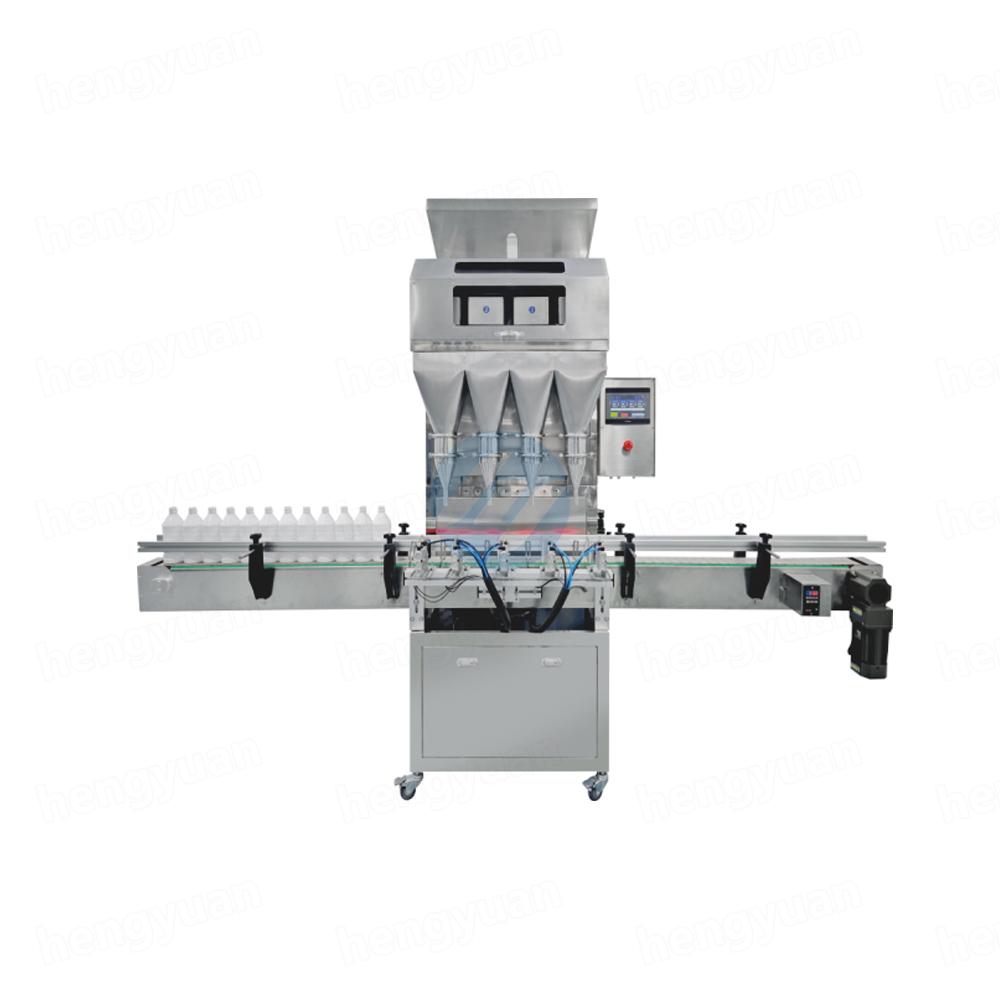

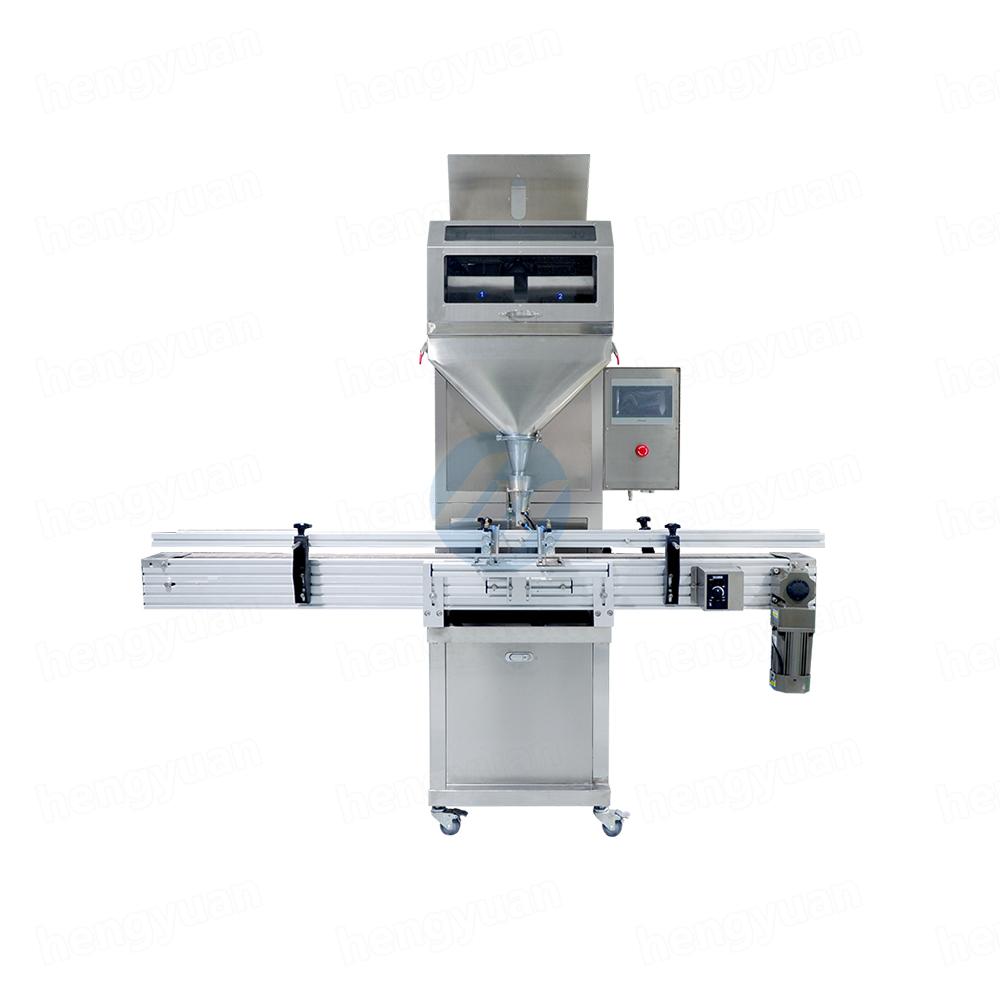

HYGW-AL100 Automatic Weighing Granules Filling Machine

Brief Introduction

This automatic weighing and filling machine is designed for precise quantitative packaging of granular materials such as rice, seeds, sugar, chicken powder, monosodium glutamate, salt, detergent powder, additives, premixes, feed, veterinary medicine, pesticides, fertilizers, and similar products.

To ensure high filling accuracy, the machine utilizes a vibratory feeding hopper with three adjustable speed stages: fast, medium, and slow. The fast stage delivers bulk material until a preset weight is reached, then automatically switches to medium speed. Once the medium target is met, the system transitions to slow speed for fine dosing, stopping precisely when the final weight is achieved.

Application Scope

This machine is widely used for quantitative packaging of granular materials across various industries, including:

Food industry: rice, seeds, sugar, chicken powder, monosodium glutamate, salt, etc.

Daily chemical industry: detergent powder, additives, etc.

Agricultural industry: fertilizers, pesticides, feed, veterinary medicine, premixes, etc.

It is suitable for both small and large scale production lines requiring high accuracy and efficiency.

Key Features

1）Automatic positioning, filling, and weighing with multiple weighing hoppers operating simultaneously for high speed and efficiency.

2）Industrial-grade weighing modules for accurate, low-error measurement.

3）Interchangeable discharge openings to accommodate various container sizes.

4）Each weighing hopper is paired with an independent vibrator and load cell, ensuring stable, interference-free performance.

5）An industrial PLC and user-friendly touchscreen provide reliable control and simple operation.

6）An optional vibrator can be added to the conveyor to settle the material evenly inside containers during filling, improving packaging consistency.

Technical Parameters (4 Sub Models)

Parameter	HYGW-AL100-1N2W	HYGW-AL100-1N4W	HYGW-AL100-2N4W	HYGW-AL100-4N4W
Number of Filling Heads	1	1	2	4
Number of Weighing Hoppers	2	4	4	4
Hopper Capacity	5L / 3.5L
Packaging Speed (bottles/hour)	800-1800	1200-2400	1500-3600	3000-6000
Packaging Accuracy	≤0.3%
Power	2.5kW	3kW	4kW	4kW
Power Supply	AC 220V/110V, single-phase (globally configurable)
Compressed Air Pressure	0.5–0.7 MPa
Machine Weight (kg)	260	320	350	350
Machine Dimensions (L×W×H)	2000×850×2200mm	2000×850×2200mm	2000×850×2200mm	2500×1000×2400mm
